Description:

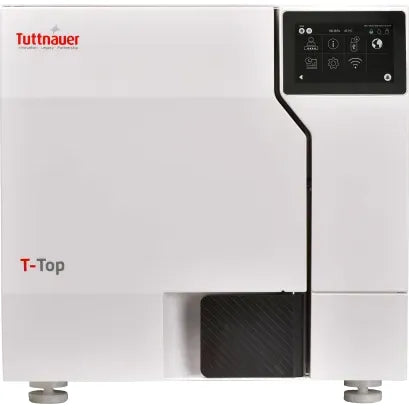

T-Top 10 AutoclaveEfficiency with maximum reliability
- 21 Liter Large Chamber Capacity
- Class S Sterilizer (Closed-Door Drying)
- T-Connect: Advanced Remote Diagnostics
- Short Cycles
Designed to Meet Your Healthcare Clinics’ Everyday Sterilization Needs
The T-Top10 autoclave is specifically developed for dental and medical clinics of small to medium practices, covering the fundamental needs for your general clinic sterilization with the aim of increasing the productivity of your practice.
T-Top offers universal capacity, handed to you, in an affordable and reliable solution you can count on for managing your daily practice sterilization process workload; an efficient autoclave which perfectly meets the requirements of all standard practices.
Overview:
Plug and Play
No dedicated installation connections needed, simply a power source
Reliable Performance
Quality product that will do all you need and expect
Traceability & Connectivity
Monitor & trace your process. Connect using Wi-Fi, Ethernet connection, USB ports, T-Connect and R.PC.R
Time saver setting
Set test cycles and sterilization cycles to start at any time
Compact Design
Does not require a lot of counter top or shelf space
Safety & Regulation
Meets strictest international standards
Sterilization Programs:
Optimized cycle programs for efficient and consistent performance.
| Program name | Sterilization time (w/ Drying)* | Load type | Type of use |
|---|---|---|---|
| Unwrapped 273°F | 25 min | Unwrapped Instruments | For immediate use |
| Wrapped 273°F | 56 min | Wrapped Pouches | For storage |
| Unwrapped 250°F | 46 min | Unwrapped Delicate Instruments | For immediate use |
| Wrapped 250°F | 72 min | Wrapped Delicate Instruments | For storage |
| Wrapped 250°F / 2kg | 42 min | Small Loads of up to 4.4 lbs. | For quick turnaround of small loads |
* Cycle times above are an average for a standard load and could vary based on load weight, type, and external conditions
Data and Software:
Data where you need it
Cloud based paperless software
T-Top devices feature the exclusive and
technologically advanced T-Connect, a cloud
based IoT solution for your sterilization center.
Printouts for saving hard copies (optional printer)
Sophisticated data analysis capabilities with T-Connect (remote access) or RPCR software
Personalized username and password
Advanced documentation, and traceability options, including barcode.
Technical Specifications:
Chamber size
10" (Ø) x 18" (D)
Volume
21L
Overall dimensions
23" (D) x 18.1" (W) x 18" (H)
Max # of trays
5 (sold with 4 trays, additional available for purchased)
Tray dimensions
14.7" (D) x 7.3" (W) x 0.6" (H)
Weight
99 lbs.
Water filling
Manual
Digital Connections
2 USB ports, Wi-Fi
Standards and Regulations:
T-Top meets the following International standards
CE MDR
- Certificate number 3903015CE01
- Valid until 01-03-2028
Electromagnetic compatibility
IEC 61326-1
Electrical safety
IEC 61010-1, 61010-2-040
Verification & validation functional tests
EN 13060
Software validation
EN 62304, FDA guidance
Quality Management System
- ISO 9001:2015
- ISO 13485:2016
Pressure Vessel
PED 2014/68/EU
Tuttnauer T-TOP 10S 110V
$6,364.00 $4,375.00
