463 Exam Chair

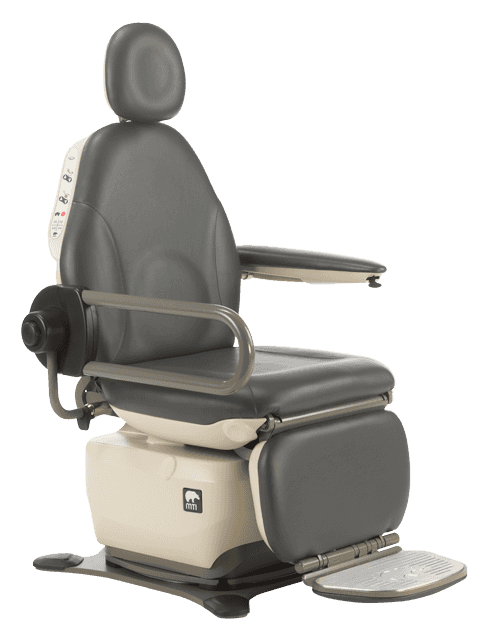

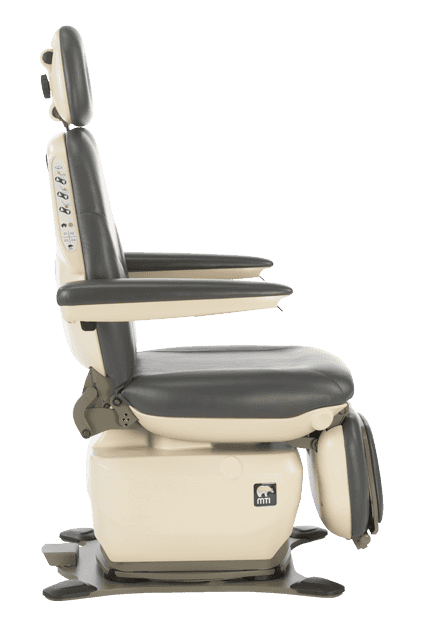

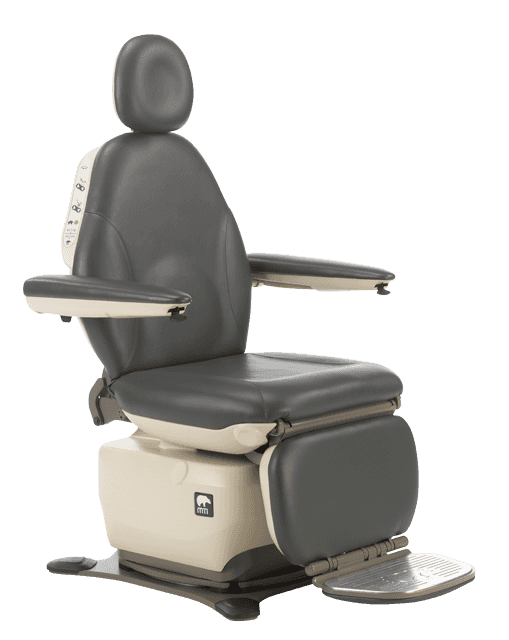

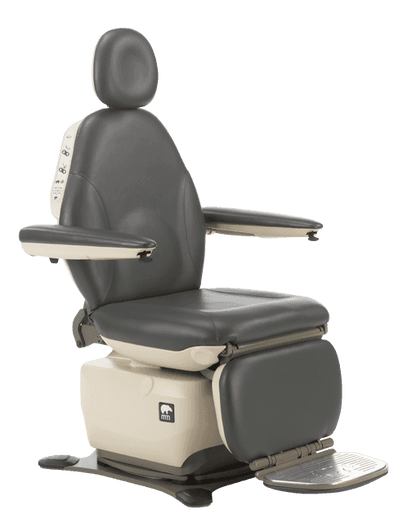

MTI 463 Exam Chair

The MTI 463 Exam Chair is a fully powered, ADA-compliant exam chair designed to provide exceptional accessibility, patient comfort, and clinical efficiency. Built with the same premium features as the 464—minus the tilt function—the 463 delivers reliable performance, smooth movement, and advanced ergonomics for ENT, dermatology, ophthalmology, and outpatient procedure environments.

Equipped with MTI’s SmartTech™ system, including Smart Controller™ and Smart Safety™ technology, the 463 offers smoother actuation, enhanced safety, memory settings, and reduced energy consumption. ComfortSync™ automatically coordinates the footrest and leg rest with the backrest, maintaining proper support as the patient reclines.

The sleek tapered backrest, contoured base plate, slide-back floating arms, and an exceptionally low 18.75-inch entry height provide luxurious comfort and outstanding caregiver access. With programmable positions, ADA-compliant home settings, dual EasyView™ controls, and a 725-lb patient capacity, the 463 is engineered for high-performance clinical use.

Headrest

Oval Articulating

Base Options

ADA Compliant 333° Swivel

Control Choices

Foot Control (optional), Hand Switches (standard)

Functions

Power Back with Coordinated Footrest, Power Lift, Power Foot Extension (ComfortSync™)

Seat Height

18.75" – 37" Swivel Base

Patient Arms

Floating Arms (standard), removable and compensating

Removable Upholstery

Designer or Seamless

Seat Width

21"

Leg Rest / Footrest

Coordinated Footrest with 3" Power Extension, Flip-Up Footrest

Programmable Positions

4 Programmable Buttons + Programmable Home + ADA Home

Patient Capacity

725 lbs.

Core Specifications

• Power lift and power backrest
• ComfortSync™ coordinated backrest, leg rest, and footrest movement
• Ultra-quiet, low-voltage motors
• Smooth soft-start and soft-stop technology
• All-steel frame construction

Controls and Memory Features

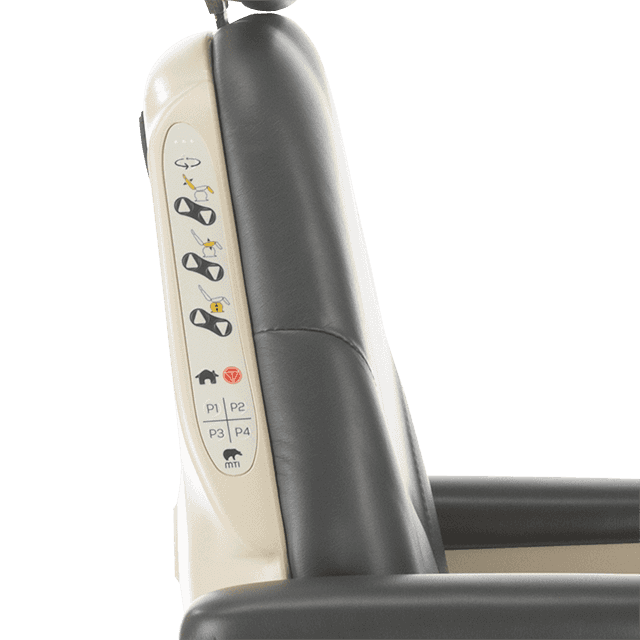

• Dual EasyView™ back-mounted hand switches with LED indicators
• Optional sealed foot control
• 4 dynamic user-programmable positions
• Programmable home and ADA-compliant home positions
• Electronic swivel activation with lock/unlock modes
• Safety Lockout to prevent unintended movement

Comfort and Ergonomics

• Tapered backrest for improved clinician access
• 18.75" low entry height for ADA accessibility
• Slide-back, removable floating patient arms
• Oval articulating headrest
• Flip-up footrest with padded underside

Upholstery Options

• Seamless or Designer Ultraleather® upholstery
• PFAS-free medical-grade surfaces
• Multiple color options available

Dimensions

• Height Range: 18.75" – 37"
• Seat Width: 21"
• Length: 78" + 7" headrest extension
• Base Rotation: 333°

Safety Standards

• IEC 60601-1:2005 Ed.3 + Amendments
• AAMI ES60601-1
• IEC 60601-1-2:2014 Ed.4 (EMC)
• CSA C22.2 #60601-1
• TSCA Title VI compliant

Available Accessories

• Back-mounted exam light
• Foot control
• Paper roll holder (18–21")
• Transfer support (ADA)
• Body and leg restraint straps
• Hospital
