464 Exam/Procedure Chair

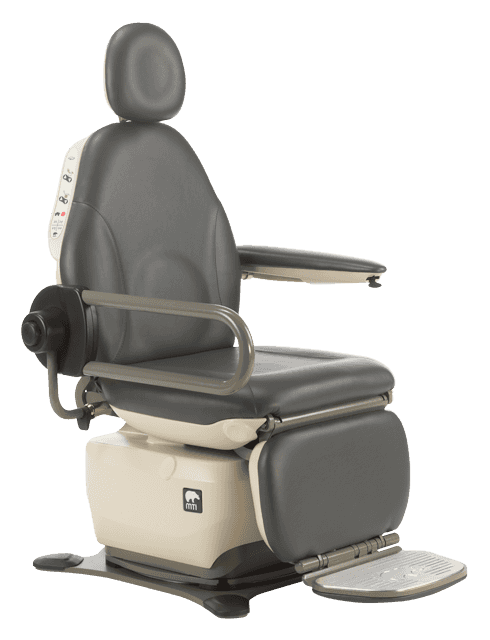

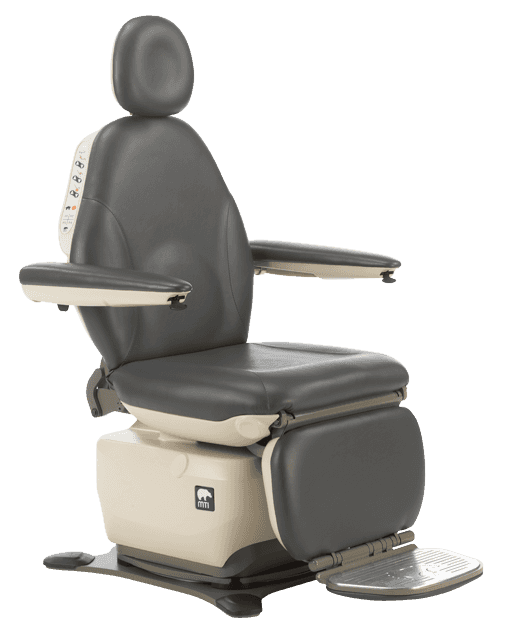

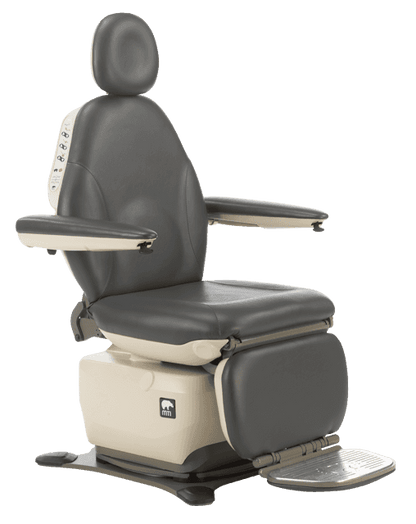

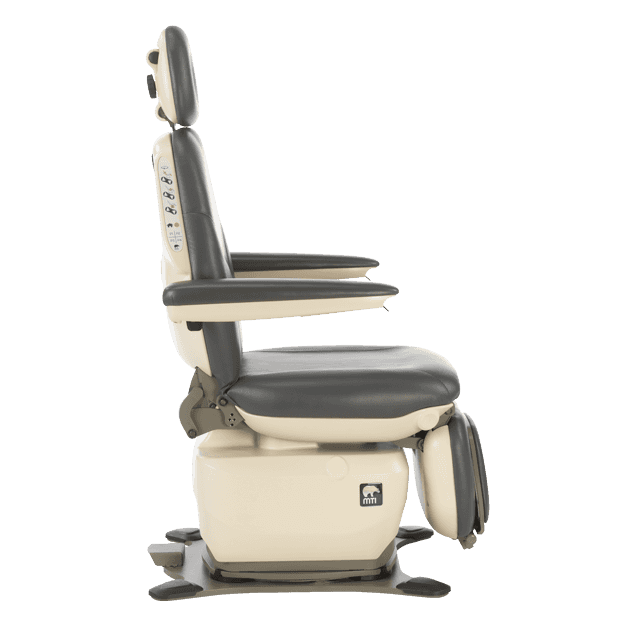

MTI 464 Exam/Procedure Chair

The MTI 464 Exam/Procedure Chair is a fully powered, ADA-compliant exam and procedure chair designed for superior accessibility, patient comfort, and clinical efficiency. Featuring MTI’s SmartTech™ system, which includes Smart Controller™ and Smart Safety™ technology, the 464 provides smooth motion, energy efficiency, customizable positioning, and enhanced safety features.

With an ultra-thin tapered backrest, contoured base plate, slide-back arms, and an exceptionally low 18.75-inch entry height, the 464 enhances caregiver access while ensuring excellent patient comfort. ComfortSync™ technology automatically coordinates the leg rest and footrest with the backrest to maintain proper lower-body support during recline.

Built for ENT, dermatology, ophthalmology, and general outpatient procedure settings, the 464 offers multiple power functions, programmable memory positions, ADA-compliant home positioning, and a robust 725-lb patient capacity.

Core Functions

• Power lift, power back, and power foot extension
• Power tilt (464 only), with up to 30° tilt and 20° Trendelenburg
• Coordinated footrest and leg rest movement via ComfortSync™
• Soft-start and soft-stop motor control
• Ultra-quiet, low-voltage motors
• Maintenance-free joints (no lubrication required)

SmartTech™ System

• Smart Controller™ for smooth, controlled movement
• Smart Safety™ collision-avoidance with Safe Zones
• User-programmable Home and 4 Program Buttons (P1–P4)
• ADA-compliant Home position option
• Energy-saving hibernation mode after 60 minutes

Control Features

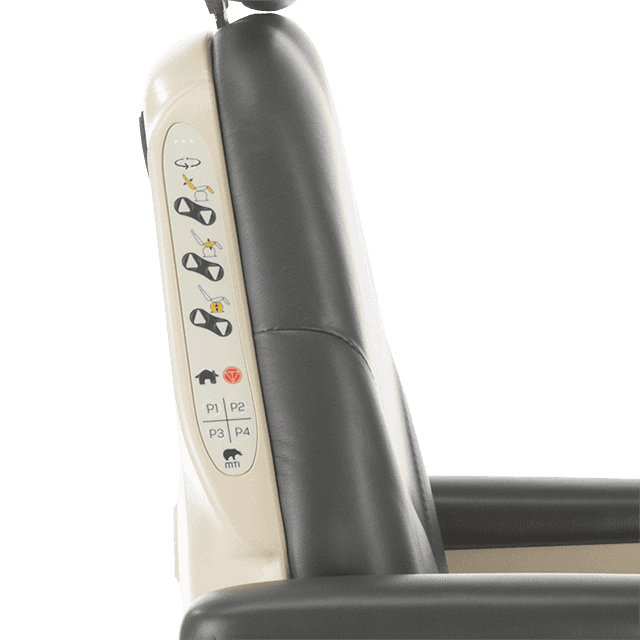

• Dual EasyView™ back-mounted hand switches with LEDs
• Optional sealed foot control (2-function or 3-function)
• Electronic swivel with Auto-Lock or Lock/Unlock modes
• Safety Lockout to prevent unintended movements

Ergonomic and Patient Comfort Enhancements

• Entry height: 18.75" (meets ADA 17–19" requirement)
• Seat width: 21"
• Tapered backrest for superior clinician access
• Floating, slide-back, removable patient arms
• Oval articulating headrest

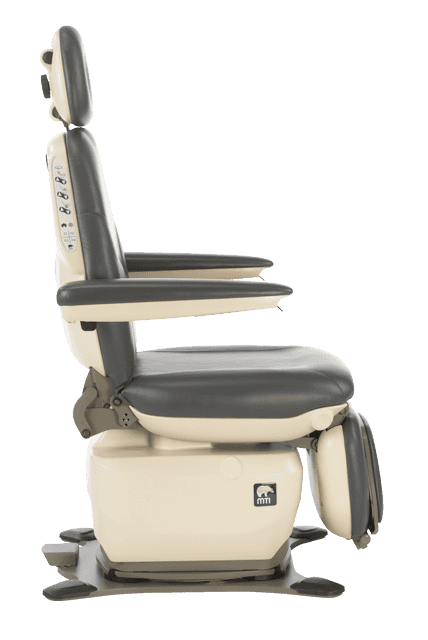

• Flip-up footrest with padded underside

Construction and Durability

• All-steel frame for long-term durability
• Built-in leveling glides
• Removable seamless or designer upholstery
• Universal 100–240V power compatibility
• Patient capacity: 725 lbs

Compliance and Safety

• Fully ADA compliant when equipped with transfer support
• ETL, UL, CE, and TUV listed safety certifications
• Meets IEC 60601-1, AAMI, and EMC requirements
• Collision avoidance and Safe Zones via Smart Safety™ technology

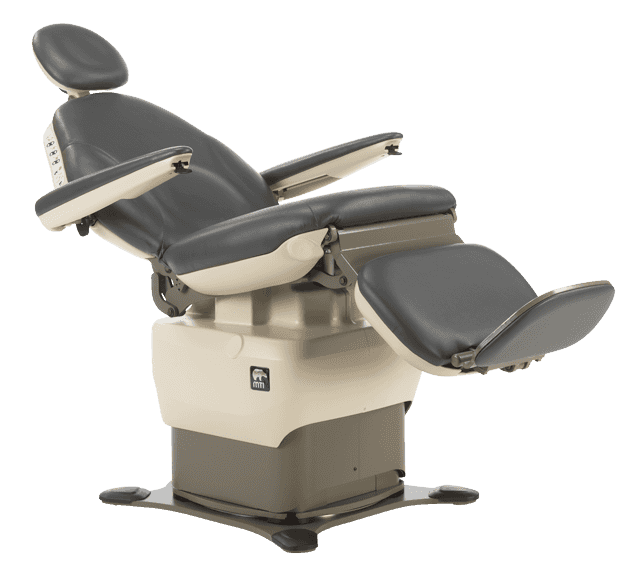

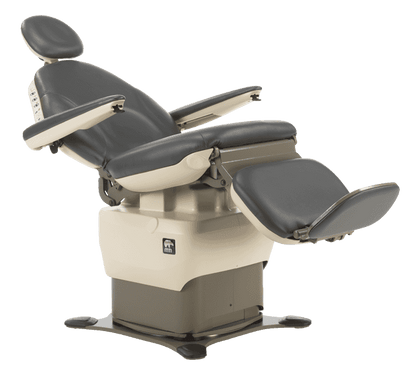

ComfortSync™ System

• Automatically synchronizes leg rest, footrest, and backrest movement
• Extends further for taller patients
• Maintains natural lower-body support to prevent sliding

Upholstery Options

• Available in Seamless Premium and Designer Ultraleather®
• PFAS-free, medical-grade, and easy to disinfect
• Multiple upholstery color options

Available Accessories

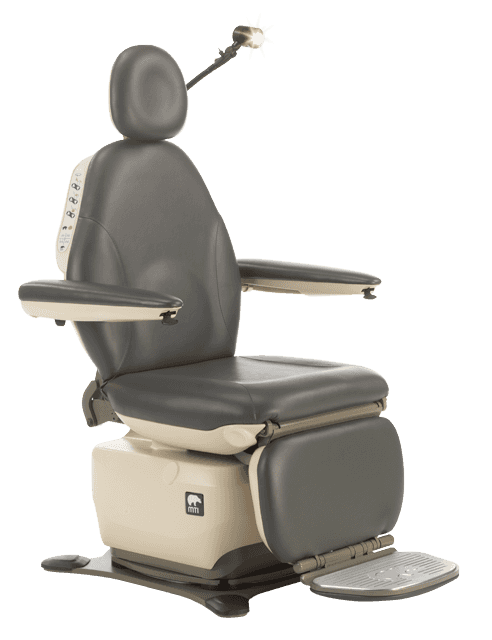

• Back-mounted exam light
• Paper roll holder (18–21")
• Hospital-grade power cord (90°)
• Foot controls (2- or 3-function)
• Transfer support / bed rail
• Restraint straps (body and leg)

Dimensions

• Height range: 18.75" – 37"
• Length: 78" + 7" headrest extension
• Width: 21"
