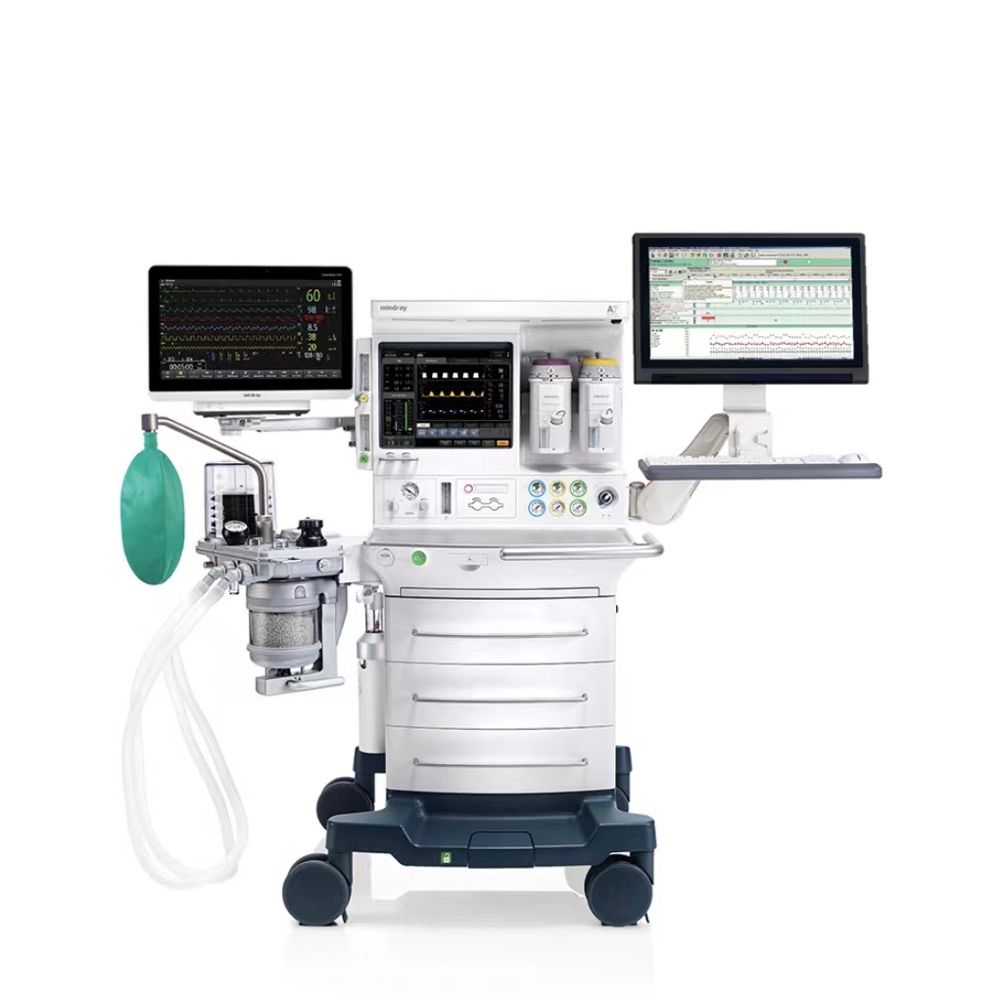

New Mindray A7 Anesthesia System with Gas Module capability (pn 0632F-PA00005), 121-001465-00

High-performance anesthesia workstation

The A7 Advantage expands A-Series capabilities with electronic fresh gas control technology for precise flow dynamics. Recycled sample gas reduces fresh gas and agent use for both clinical and cost-saving benefits, while Total Flow or Direct Flow settings ensure accurate, responsive delivery.

Standard safety features, advanced ventilation modes, and a high-pressure O₂ port meet diverse clinical needs. Workflow efficiency is enhanced with lung-protective strategies and decision-support tools. Direct HL7 data output provides industry-standard connectivity for AIMS and EMR systems, reducing integration costs. The A7 complements clinical workflow in an intuitive, high-performance workstation.

Standard Features

• Microprocessor-controlled bellows ventilator
• Ventilation modes: VCV, PCV, PCV-VG, SIMV-VC, SIMV-PC, CPAP/PS

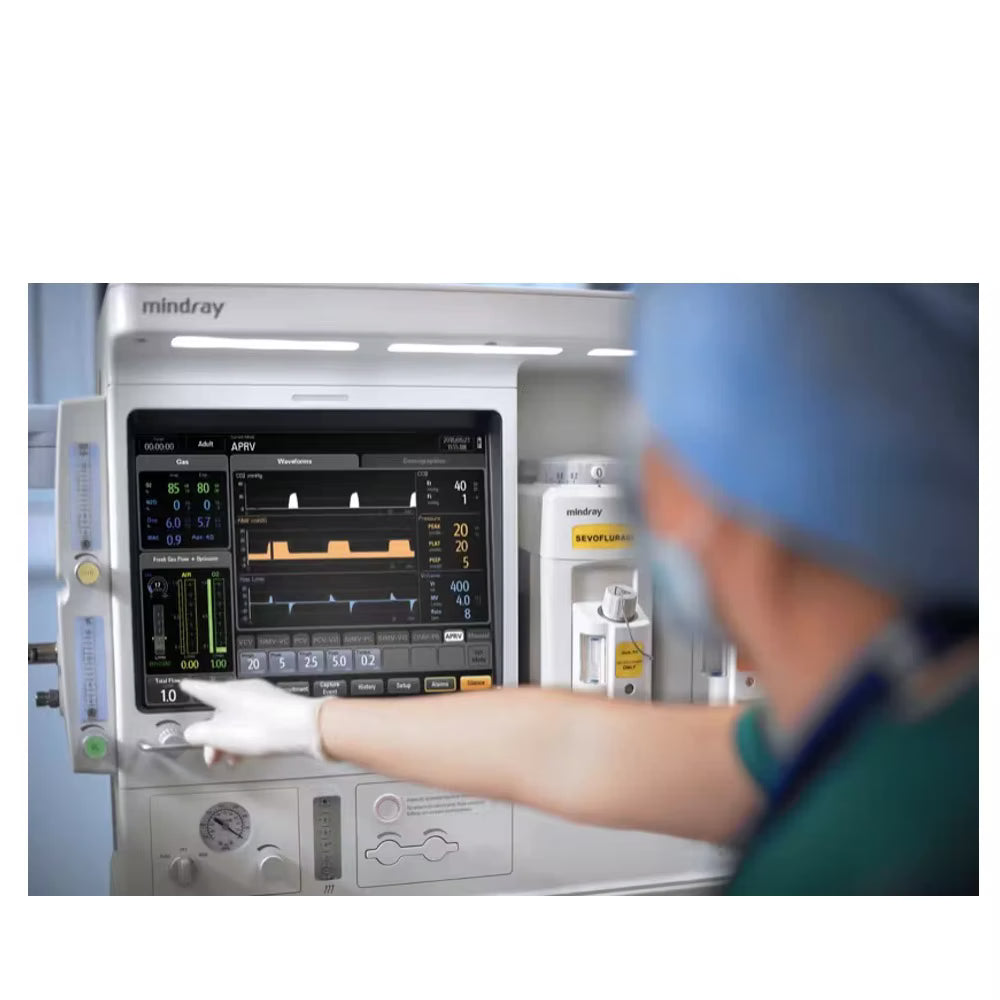

• 15″ touchscreen with backup touchpad and VGA output
• Electronic flow control for O₂, Air, and N₂O
• Dual Selectatec manifold with three vaporizer mount
• Auxiliary O₂/Air blender
• Warmed breathing system minimizes condensation
• Built-in suction, waste gas scavenger system
• Pipeline connections for O₂, Air, N₂O
• Storage drawers, caster guards, and central wheel brake

Safety & Workflow

• Robust safety features for ventilation and gas delivery
• User interface designed for intuitive navigation
• Tank washers, pre-operation checklist, and reference cards included
• Integrated HL7 data output for AIMS and EMR connectivity

Optional Features

• Additional ventilation modes and spirometry
• Cardiac bypass support
• Low-flow Optimizer™ decision support tools

Optimizer™ Decision Support

The Optimizer suite, when used with integrated gas modules, provides low-flow decision support tools to:

• Manage intraoperative fresh gas dynamics
• Visualize real-time agent usage during cases
• Quantify total agent consumption at case end

Download the A7 Advantage Brochure (PDF)
