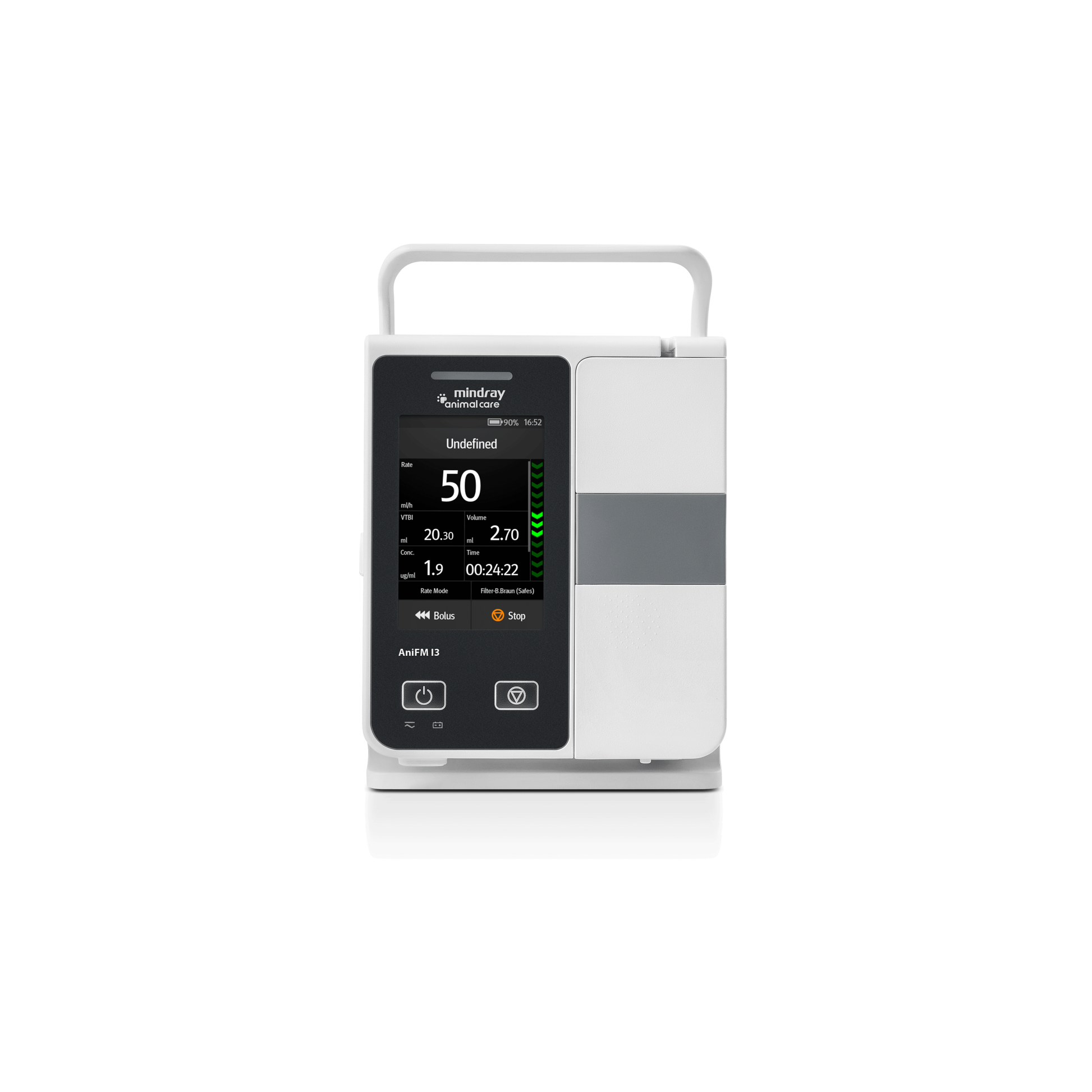

Mindray AniFM I3 Infusion Pump

AniFM Veterinary Infusion & Syringe Pumps

Engineered for precision and safety, the AniFM Infusion and Syringe Pumps bring a new standard to veterinary infusion therapy. Designed with advanced features for modern animal clinics, these pumps ensure smooth delivery, intelligent monitoring, and safer blood transfusions.

Advanced Infusion Technology

6 Innovative Systems for Smarter Care

The AniFM 3-Series revolutionizes veterinary infusion by combining precision, stability, and intelligent controls into a compact, highly adaptable device.

✅ Precision-Engineered for Animals

Suspension Floating Pump System
Ensures accurate, consistent infusion even during long procedures or with varying consumables. Maintains delivery accuracy within ≤ ±4.5%.

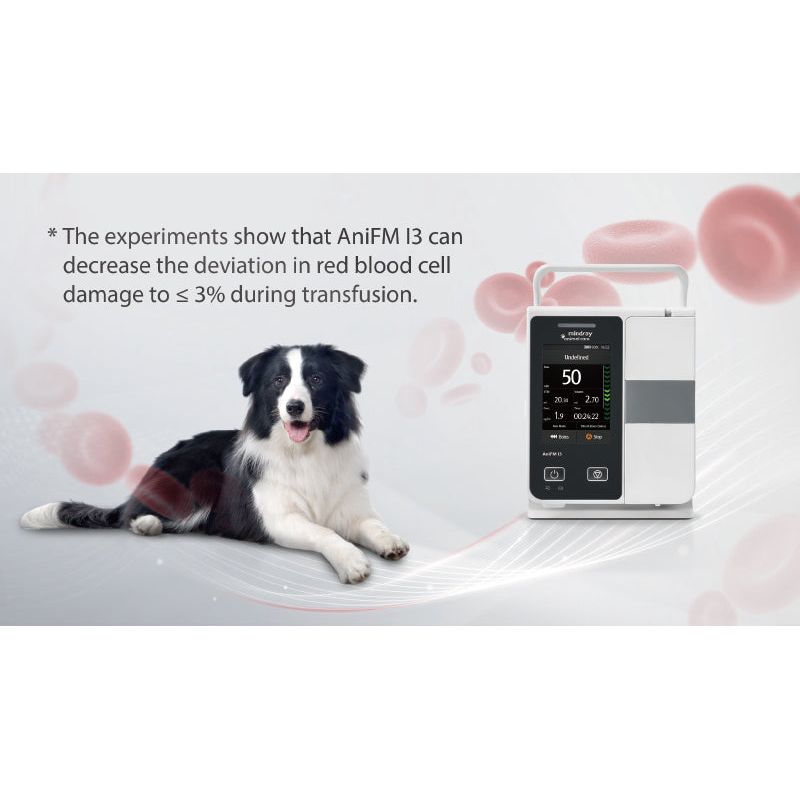

Certified for Blood Transfusions
Gently manages flow to protect red blood cells and minimize complications such as hyperkalemia, thrombosis, and acute kidney injury. Ideal for safe and reliable blood transfusions in veterinary patients.

✅ Smart Operation for Veterinary Workflows

Rotating Mounting Cube
Mount the pump vertically, horizontally, or on cages — anywhere you need it. The unique rotating cube makes setup simple and flexible.

Automatic Brake System
Instantly halts infusion to prevent accidental drug delivery during drops or movement, adding a layer of safety during handling.

Dynamic Pressure System (DPS)
Real-time dashboard-style pressure readouts alert you to occlusions early. Supports automatic restarts and intelligent error resolution.

✅ Connected Workflow for Clinics and Hospitals

Multi-Device Interconnection
Built-in Wi-Fi connects seamlessly to the Central Monitoring System (CMS), allowing centralized data management across anesthesia, monitoring, and infusion devices.

Centralized Infusion Oversight
Track infusion status from any ward — including isolation, inpatient, or infusion rooms — for improved workflow and animal safety throughout the facility.

• Floating pump drive system
• Intelligent fatigue compensation technology
• Intuitive 3.5 inch touchscreen
• Dynamic Pressure Monitoring (DPS)
• Built-in Wi-Fi
• Rotating universal mounting

Specifications

• Weight: 1.3 kg
• Screen: 3.5″ touchscreen, TFT colour LCD
• Accuracy Rate: ≤ ±4.5%
• Flow Rate: 0.10 ml/h – 2000 ml/h
• Increments: 0.01 ml/h (0.10–99.99 ml/h), 0.1 ml/h (100–999.9 ml/h), 1 ml/h (1000–2000 ml/h)
• Preset Volume (VTBI): 0.10 – 9999.99 ml (increment: 0.01 ml)
• Preset Time: 00:00:01 – 99:59:59
• KVO: 0.1 – 5.0 ml/h (increment: 0.01 ml/h)
• Purge Rate: 0.1 – 2000 ml/h
• Bolus Rate: 0.1 – 2000 ml/h (automatic or manual)
• Modes: Rate Mode, Dose Mode, Time Mode, Dose Time Mode, Sequential Mode, Intermittent Mode, Loading Dose Mode, Ramp Mode, Micro-Infusion Mode, Drip Mode, Rhythm Dose
• Application: IV Drug Infusion, Enteral Nutrition Feeding, Blood Transfusions
• Air Bubble Detection
• History Log (up to 5000 events)
• Drug List (up to 5000 drugs, 30 categories, and supports colour-coded drug names)
• Audio and Visual Alarms
• Battery: 5.5 hr Operating Time, 5 hr Charge Time
