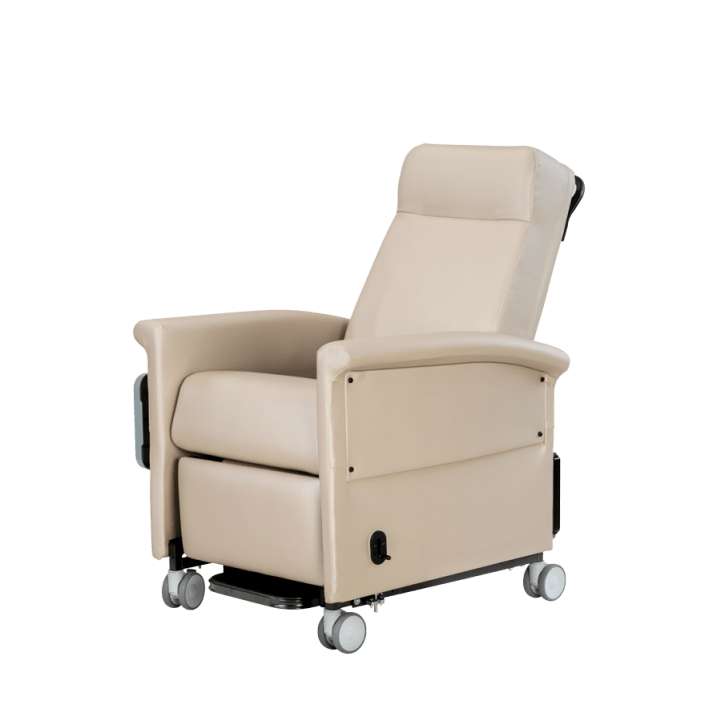

Champion Ascent Recliner

Also available in wingback style, the Ascent features extra padding for patient comfort during treatment, subtle curves for a modern aesthetic, and swing-away arms for easier ingress and egress. With the durable engineering and strength of the Classic but with an upscale design, the Ascent is an ideal medical chair for patients and providers.

• Powered or manual recline, depending on selected model
• Swing-away arms
• 4" dual thermoplastic casters
• Trendelenburg positioning
• One standard fold-down side table
• Wall hugger mechanism
• Push handle
• Foot tray
• Hand-held remote/pendant on power models only

Model Numbers

• 65P: Standard model, power recline
• 650: Standard model, manual recline
• 66P: XL model, power recline
• 660: XL model, manual recline

Standard Models: 65P and 650

• Back height from floor/seat: 47" / 29"
• Overall width with two tables down/up: 32.25" / 52"
• Seat width: 22.75"
• Arm height from floor: 29"
• Seat height/depth: 24.5" / 20.5"
• Maximum width with arms open at widest: 90"
• Minimum width with arms open at 180 degrees: 32.25"
• Trendelenburg depth: 75"
• Upright overall depth with handle: 43"
• Thermoplastic caster diameter: 4"
• Weight capacity: 300 lbs.

XL Models: 66P and 660

• Back height from floor/seat: 48" / 30"
• Overall width with two tables down/up: 36" / 56"
• Seat width: 26.75"
• Arm height from floor: 29"
• Seat height/depth: 24.5" / 20.5"
• Maximum width with arms open at widest: 94"
• Minimum width with arms open at 180 degrees: 36"
• Trendelenburg depth: 76"
• Upright overall depth with handle: 43"
• Thermoplastic caster diameter: 4"
• Weight capacity: 500 lbs.
