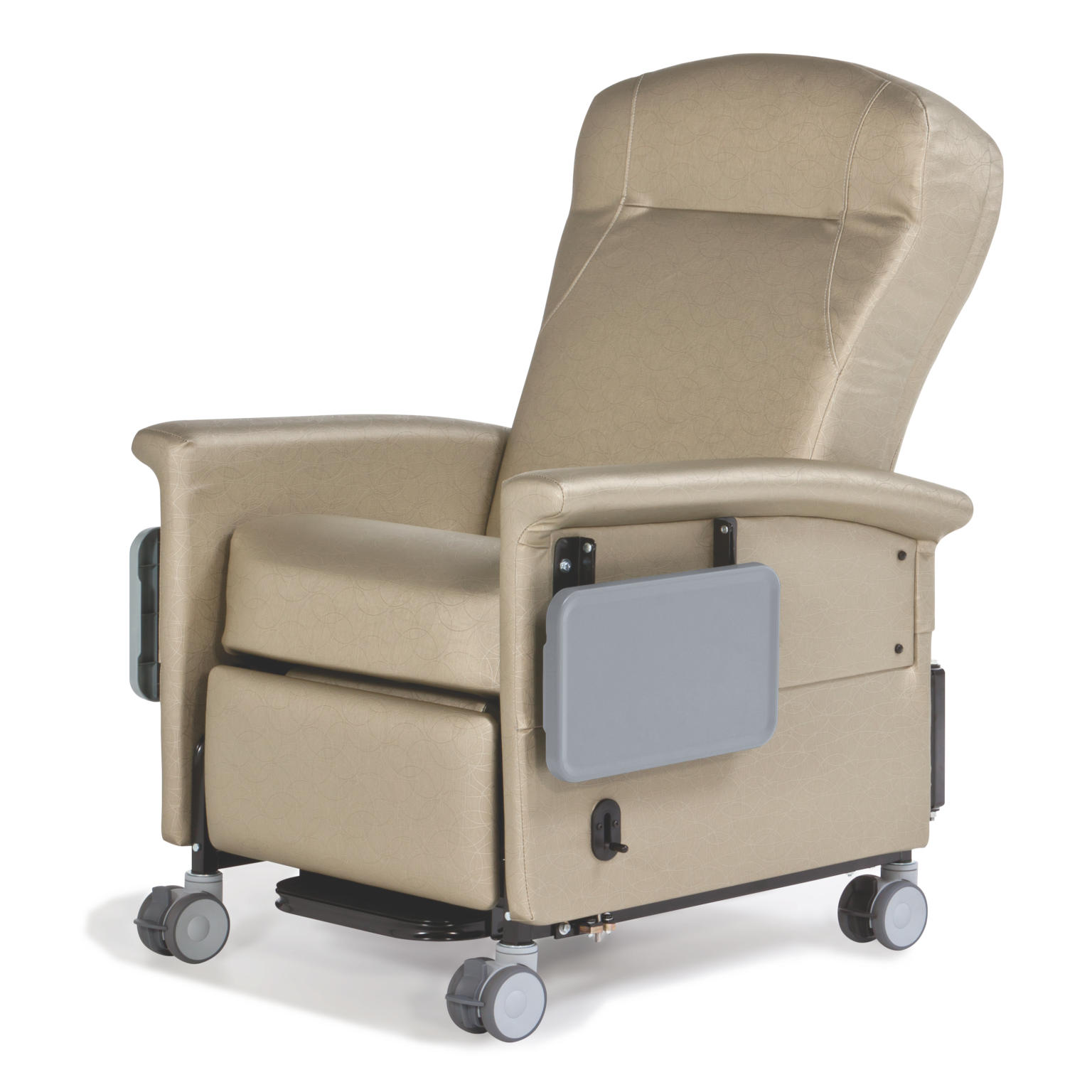

Champion Ascent II Recliner

Available in wingback style, the Ascent II features extra padding for patient comfort during treatment, subtle curves for a modern aesthetic, and swing-away arms for easier ingress and egress. With the durable engineering and strength of the Classic but with an upscale design, the Ascent II is an ideal medical chair for patients and providers during longer seated therapies and treatments.

• Powered recline

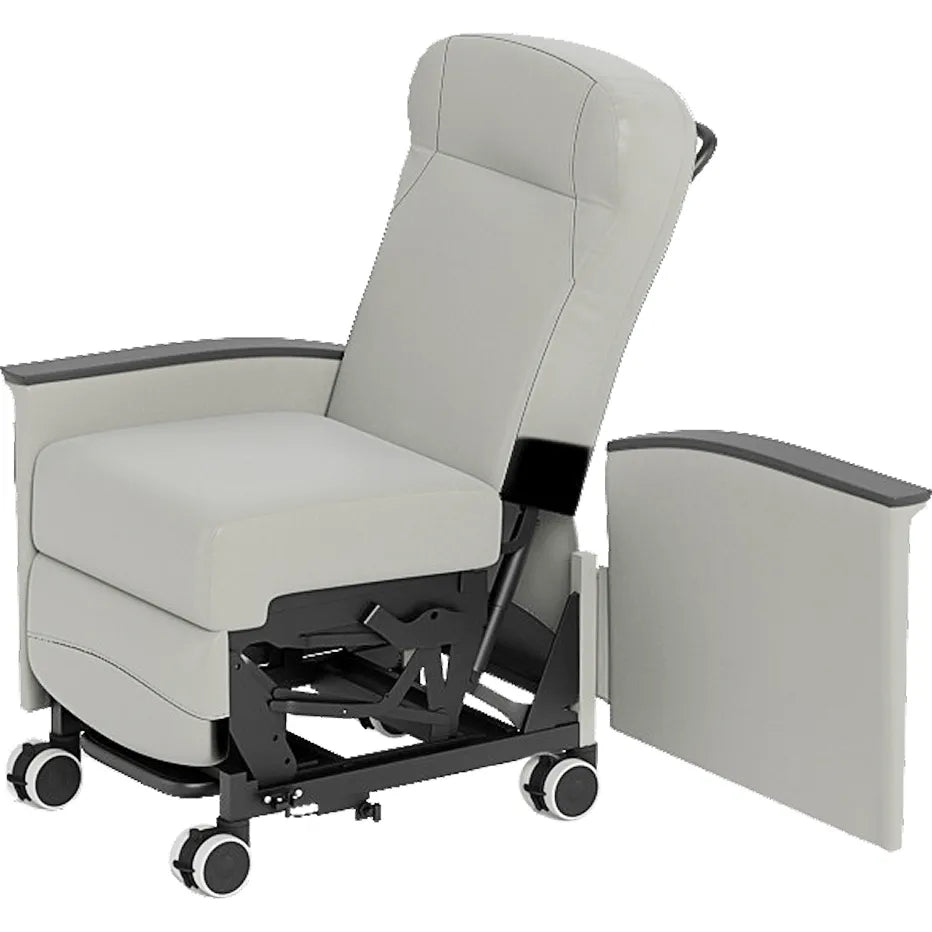

• Swing-away arms
• 4" dual thermoplastic casters
• Trendelenburg positioning
• One standard fold-down side table
• Wall hugger mechanism
• Push handle
• Foot tray
• Hand-held remote/pendant

Model Numbers

• 67P: Standard model, power recline
• 68P: XL model, power recline

67P Standard Model

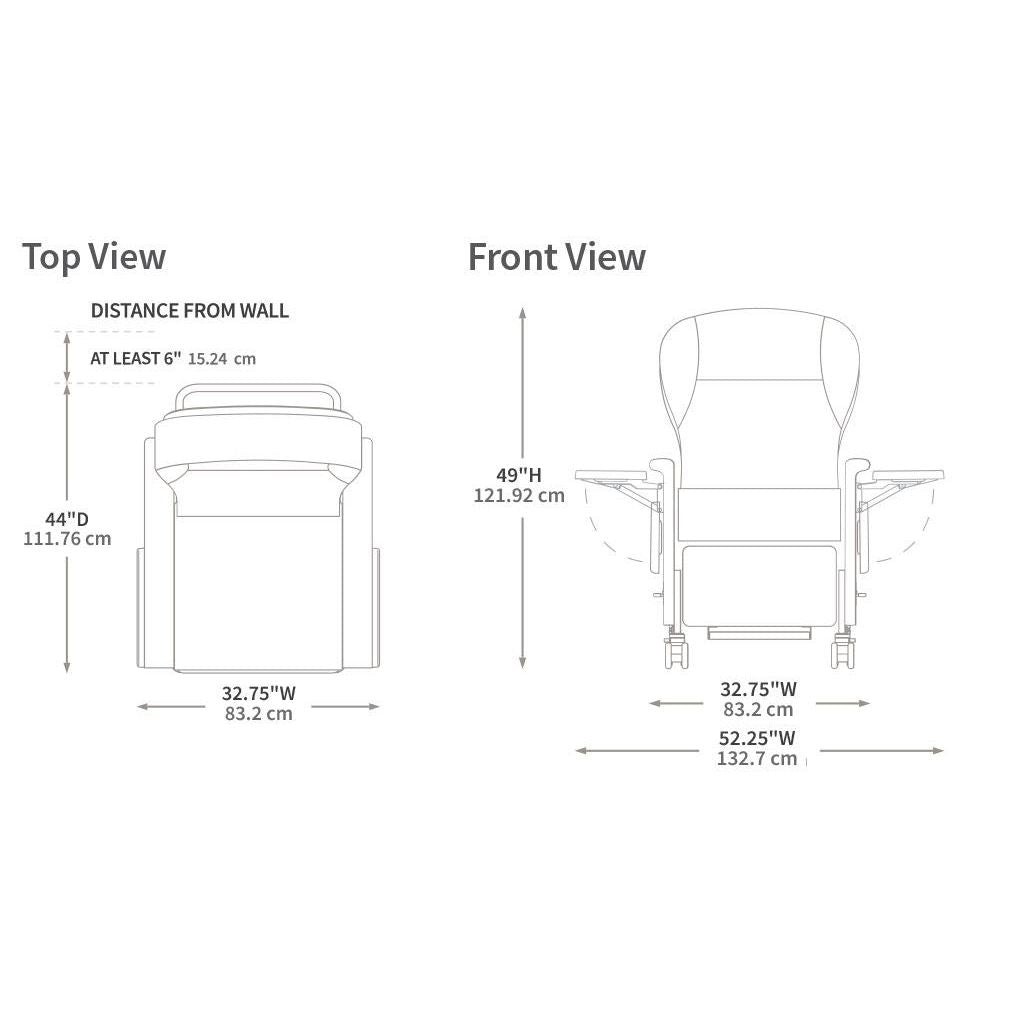

• Back height from floor/seat: 49" / 31" (121.92 cm / 78.7 cm)
• Overall width, two tables down/up: 32.75" / 52.25" (83.2 cm / 132.7 cm)
• Seat width: 22.75" (57.79 cm)
• Arm height from floor: 29" (73.70 cm)
• Seat height/depth: 24.50" / 20.50" (62.23 cm / 52.32 cm)

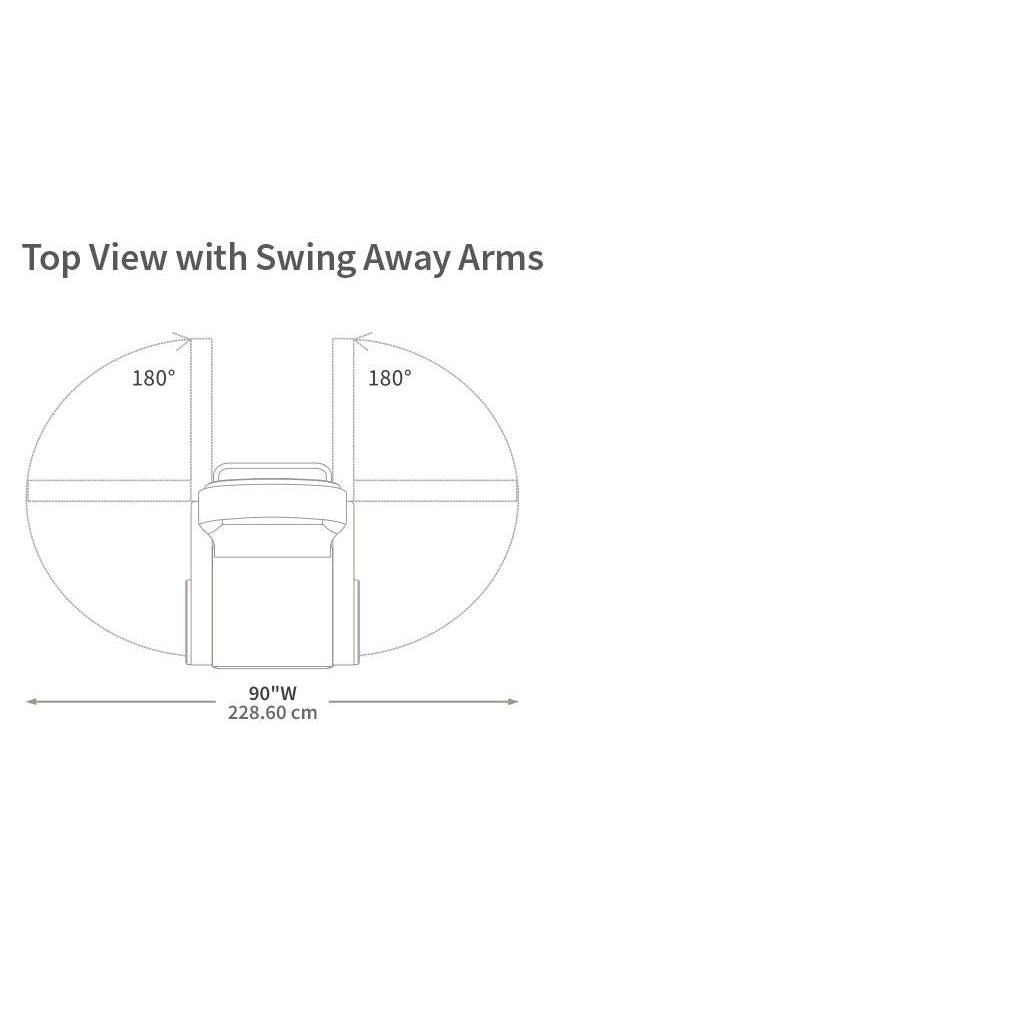

• Maximum width with arms open at widest: 90" (228.60 cm)
• Minimum width with arms open at 180 degrees: 32.75" (83.18 cm)

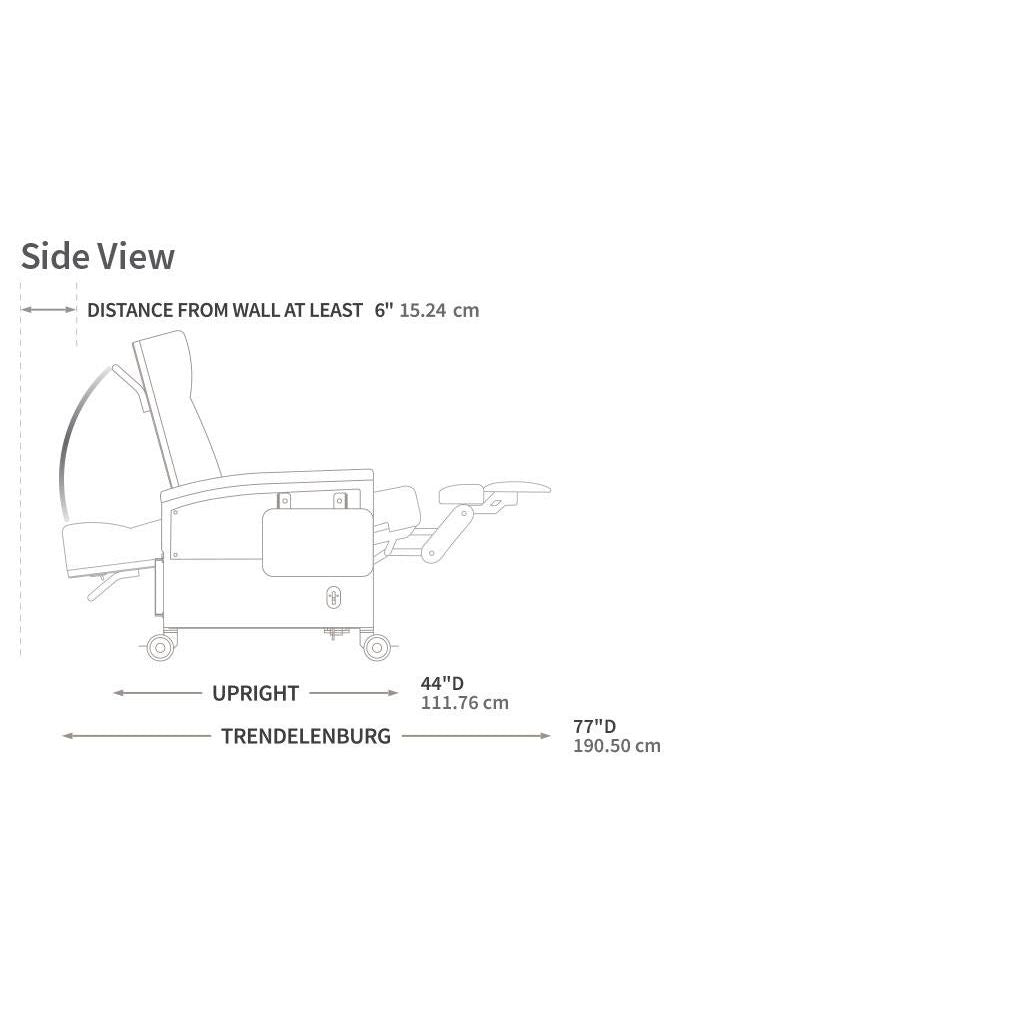

• Trendelenburg depth: 77" (195.6 cm)
• Upright overall depth with handle: 44" (111.76 cm)
• Dual thermoplastic caster diameter: 4" (10.20 cm)
• Weight capacity: 300 lb. (136.08 kg)

68P XL Model

• Back height from floor/seat: 49" / 31" (121.92 cm / 78.7 cm)
• Overall width, two tables down/up: 36.5" / 56" (92.71 cm / 142.24 cm)
• Seat width: 26.75" (67.95 cm)
• Arm height from floor: 29" (73.70 cm)
• Seat height/depth: 24.50" / 20.50" (62.23 cm / 52.32 cm)
• Maximum width with arms open at widest: 94" (238.76 cm)
• Minimum width with arms open at 180 degrees: 36.5" (92.71 cm)
• Trendelenburg depth: 77" (193.04 cm)
• Upright overall depth with handle: 44" (111.76 cm)
• Dual thermoplastic caster diameter: 4" (10.20 cm)
• Weight capacity: 500 lb.

Fabrics: Premium fabrics are standard on the Ascent II family. Standard upholstery options are also supported through the HampMED upholstery workflow.
