Bovie Surgi-Center | PRO™ 200W Electrosurgical Generator Part # A2350
$6,586.01
Description
Part # A2350

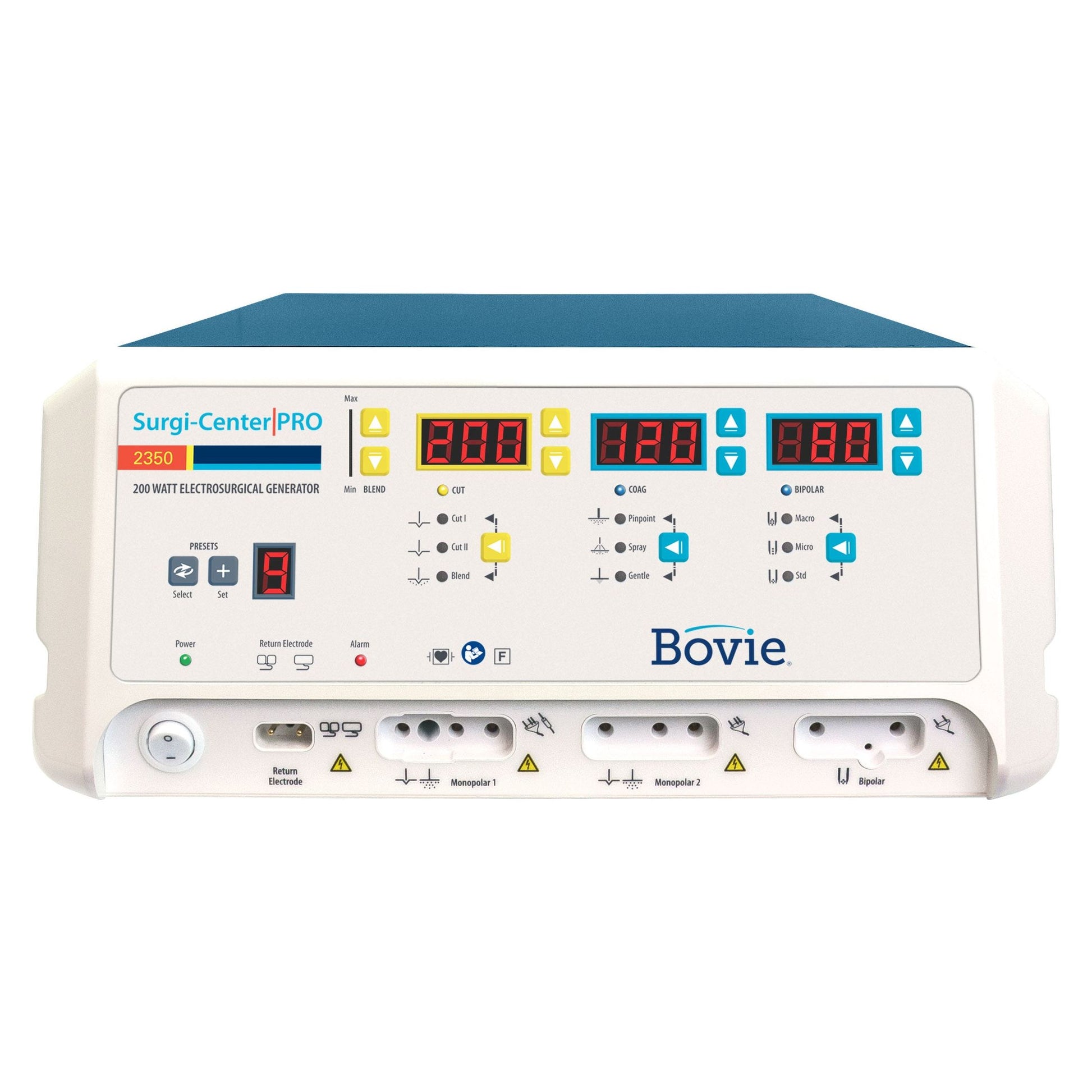

Bovie Surgi-Center Pro High Frequency Electrosurgical Generator
The Surgi-Center|PRO (A2350) is a 200 watt high power, operating room generator, by Bovie. The unit incorporates the power and safety of a premium OR generator at a significant savings to the medical facility. The system delivers 12 monopolar and bipolar RF energy modalities to provide a high level of surgical precision. Engineered with the safety of the patient in mind, the Bovie Surgi-Center|PRO includes technology such as BovieNEM™ return split pad contact quality monitoring, BovieFDFS™ tissue sensing technology, self-test circuits, as well as specialized modalities for laparoscopic and delicate procedures. The Bovie Surgi-Center|PRO is supported by Bovie’s unprecedented 4-year standard warranty.
Warranty: FOUR YEARS
Technical Specifications
| MONOPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Cut I | 200 | 1000V | 1.7 ± 20% | 490 kHz ± 4.9 kHz |
| Cut II | 200 | 750V | 1.7 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (1) | 200 | 1320V | 1.8 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (2) | 200 | 1475V | 2.0 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (3) | 200 | 1650V | 2.2 ± 20% | 490 kHz ± 4.9 kHz |
| Blend (4) | 200 | 1870V | 2.4 ± 20% | 490 kHz ± 4.9 kHz |
| Pinpoint Coagulation | 120 | 1800V | 3.1 ± 20% | 490 kHz ± 4.9 kHz |
| Spray Coagulation | 120 | 4000V | 6.0 ± 20% | 350 to 450 kHz |
| Gentle Coagulation | 120 | 450V | 1.6 ± 20% | 490 kHz ± 4.9 kHz |
| BIPOLAR | WATTS | VPEAK MAX VOLTAGE | CREST FACTOR (TYPICAL) | FREQUENCY (KHZ) |
|---|---|---|---|---|
| Macro Bipolar | 80 | 600V | 1.5 ± 20% | 490 kHz ± 4.9 kHz |
| Micro Bipolar | 80 | 500V | 1.5 ± 20% | 490 kHz ± 4.9 kHz |
| Standard Bipolar | 50 | 250V | 1.5 ± 20% | 490 kHz ± 4.9 kHz |
Technical Specifications:
- Lifespan: Reusable
- Sterilization Status: Non-sterile
Electrical Specifications:
- Cooling System: Passive Cooling
- Technology: Isolated RF Output
- Audible/Visible Output Meter: Yes
- Pre-set Feature: Yes
- Monopolar HP Ports: 2 Port(s)
- Connector Ports/Power Switch: White
- Contact Monitoring Systems: Bovie NEM™
- Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C° to 40°C)
- Dual Activation Tone Alert: Yes
Safety Specifications:
- Latex-Free: Yes
Included Items:
|
SKU
|
Name
|
Default Quantity
|
|---|---|---|
| A2350 | Bovie® Surgi-Center Pro High Frequency Electrosurgical Generator | 1 |
| 09-039-001 | Spare Part, Black Power Cord 15' Domestic, For A1250U, IDS-210/A3350, IDS-210/A2350, IDS300/A3250 | 1 |
| 09-035-001 | Spare Part, Black Power Cord 15ft European, For A1250U | 1 |
Resources:
Catalogs:
IFUs:
- Bovie® A2350 User Guide (English)
- Bovie® A2350 User Guide (Spanish)
- Bovie® A2350 User Guide (Polish)
- Bovie® A2350 User Guide (Turkish)
- Bovie® A2350 User Guide (Italian)
- Bovie® A2350 User Guide (German)
- Bovie® A2350 User Guide (Bulgarian)
- Bovie® A2350 User Guide (Romanian)
- Bovie A2350 Service Guide
- Bovie® A2350 User Guide (French)
Features:
ENERGY SETTINGS
CUT
Cut I
A general cutting with a standard RF waveform used in open and endoscopic surgical procedures, Cut I is for use in a wide range of tissue with minimal hemostasis.
Cut II
Tailored specifically for Laparoscopic procedures, Cut II offers a precisely managed cutting energy that limits output for minimizing the potential risk of capacitive coupling and alternate site burns due to weakened insulation.
Blend (Level 1, 2, 3 & 4)
Blended cutting offers varying levels of hemostasis during a cut procedure providing increased control of bleeding at the surgical application site.
- Level 1: 75% Duty Cycle
- Level 2: 62.5% Duty Cycle
- Level 3: 50% Duty Cycle
- Level 4: 37.5% Duty Cycle
COAGULATION
Pinpoint
A general coagulation mode delivering rapid desiccation effects with minimal tissue damage.
Spray
Recommended for hemostasis in highly vascular or large surface areas and for non-contact tissue coagulation to control superficial bleeding. Spray mode permits dual, simultaneous activation of two monopolar accessories with audible dual activation tone alert.
Gentle
Gentle mode offers more concentrated coagulation than in other modes. When coagulation is necessary in short amounts of time, reduced electrode carbonization is provided.
Overview:
SPECIALIZED LAPAROSCOPIC MODE
Bovie’s Cut II is tailored specifically for Laparoscopic procedures. The mode offers a precisely managed cutting energy that limits output thereby minimizing the potential risk of capacitive coupling and alternate site burns.
DUAL MONOPOLAR SPRAY ACTIVATION
The SurgiCenter|PRO offers simultaneous activation in spray with audible activation tones. The simultaneous delivery produces equal and even power outputs in each accessory, for a safer delivery of dual monopolar energy.
ADJUSTABLE POWER DURING ACTIVATION
The power can be adjusted up or down in variable steps while performing a procedure, to increase procedural efficiency and provide the appropriate amount of power to the surgical site.
SURGICAL MEMORY TECHNOLOGY
The SurgiCenter | PRO recalls the last used power and mode. The surgeon can store 10 user-defined RF presets for easy recall.
PATIENT SAFETY FEATURES
- This return electrode contact quality monitoring system is designed to minimize the risk of patient burns at the return electrode site. This feature works in conjunction with disposable split return electrodes.
- Bovie FDFS™ – The tissue sensing technology measure tissue 5 million times a second and adjusts to varying impedances 5000 times a second for accurate energy delivery.
- Automatic system self-checks upon powering up the unit.
† Sold Separately
