EMSE Duplex 3HP Lubricated Rotary Vane 3Ph Medical Vacuum System, 1DLV3HT30-DV

Freight Costs Not Included

Freight charges for this item will be calculated after purchase and billed separately.
If you’d prefer to receive a freight quote before placing your order, please call us and we’ll be happy to assist.

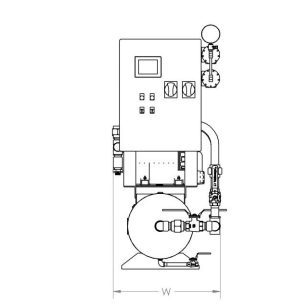

Duplex Medical Vacuum System
Lubricated Rotary Vane Vacuum Pumps
MOUNT STYLE: VT-Vertical Tank Mounted
HORSEPOWER: 3hp
CAPACITY PER PUMP:

• 16 SCFM @ 19"Hg at 60Hz
• 13 SCFM @ 19"Hg at 50H

SYSTEM CAPACITY (with one pump in reserve):

• 16 SCFM @ 19”Hg at 60Hz

• 13 SCFM @ 19”Hg at 50Hz

RECEIVER: 30 gallon / Vertical tank

ELECTRICAL: 208-230/460V / 3Ph / 60Hz OR 200/380V / 3Ph / 50Hz

CONTROL PANEL: Premium Control Panel, NFPA 99 compliant

•  - 7" touchscreen HMI
•  - System status, service alert and documentation, alarm history, key setpoint trending, and runtime hours
•  - Ethernet connectivity, email notifications, modbus protocol,
  BACnet gateway capabilities
•  - Built in PDFs for spare parts list, wiring diagram, and O&M
  manual

ADDITIONAL OPTIONS:
 - 1 1/2" Bacteria filters (2): See separate line item
 - Remote access system monitoring: Inquire for price
 - 65K SCCR Rating: $1,160
 - VFD Control: $3,100
