Extra Tall Scavenging Valve - Throttling, 00-113-LONG
Extra Tall Scavenging Valve - Throttling, 00-113-LONG
SKU: SKU: 00-113-LONG
Couldn't load pickup availability

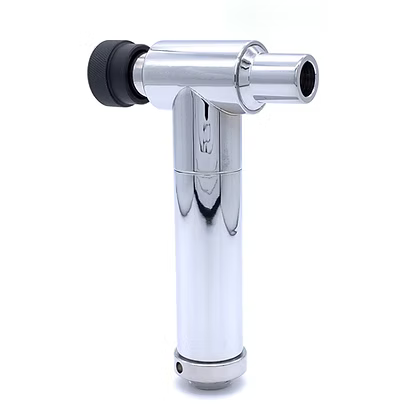

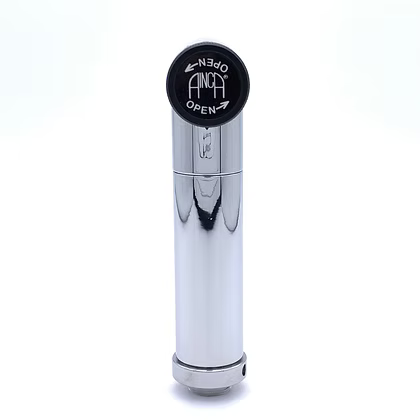

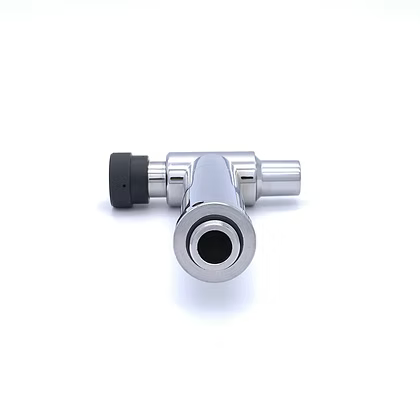

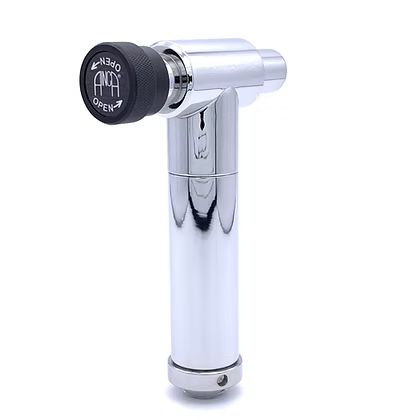

Valve, Scavenging, (+3" Taller), LeakTight Throttling, 90°, 3/4-20" x 19mmM, w/ CheckValve, Chrome Brass
- Made in USA
- Reusable
- Latex Free
Caution: Federal law restricts this device to sale by or on the order of a physician.
The long version of the standard 00-113. This extra tall body length (measuring 4 1/2” total clearance) is useful for equipment configurations requiring extra clearance for access to the control knob. Throttling type scavenger valve with an integral back-flow ball check-valve. Consists of a 3/4”-20 threaded male inlet with sealing lock-ring, and a 19mm Male gas evacuation outlet port. When fully closed, the valve provides a leak-tight seal. Constructed of durable chrome plated brass.
| Part Number | Material of Construction | Connection A | Connection B | Other Connection(s) | Valve Type |
|---|---|---|---|---|---|
| 00-113 | Chromed Brass | 3/4"-20 Threaded Male Inlet w/ Sealing Lock Ring | 19mm Male Gas Evacuation Outlet | - | Throttling Type, Leak-Tight Seal when Closed w/ Back Flow Check Valve |
| 00-113-LONG | Chromed Brass | 3/4"-20 Threaded Male Inlet w/ Sealing Lock Ring. | 19mm Male Gas Evacuation Outlet | - | Long body, Throttling Type, Leak-Tight Seal when Closed w/ Back Flow Check Valve |
| 00-113-MRI | Brass | 3/4"-20 Threaded Male Inlet w/ Sealing Lock Ring | 19mm Male Gas Evacuation Outlet | - | MRI Cond, Throttling Type, Leak-Tight Seal when Closed w/ Back Flow Check Valve |
