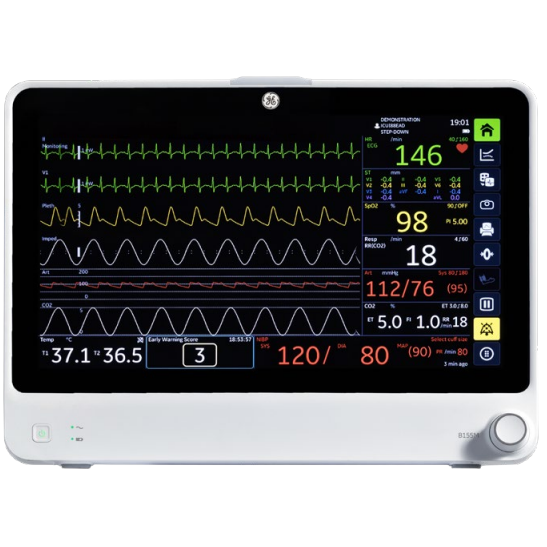

GE B155M Patient Monitor

The GE B155 Patient Monitor is a modular bedside monitor designed for reliable patient monitoring across a wide range of clinical care areas.

Featuring a large 15.6-inch HD touchscreen display, the B155 provides clear visibility of patient data and can display up to 12 waveforms simultaneously.

The B155 combines GE HealthCare monitoring technology with an intuitive interface, scalable parameter options, and dependable performance for demanding clinical environments.

📄 Download GE B155 Patient Monitor Brochure

• 15.6-inch HD capacitive touchscreen display
• Displays up to 12 waveforms simultaneously
• Modular design for scalable monitoring capabilities
• DINAMAP™ SuperSTAT™ non-invasive blood pressure measurement
• Choice of SpO2 technologies including GE TruSignal™, Masimo SET®, or Nellcor™ OxiMax
• EK-Pro ECG arrhythmia analysis
• Supports advanced monitoring options including EtCO2, anesthetic agents, cardiac output, Entropy™, and NMT
• CARESCAPE™ network connectivity
• Wi-Fi with fast roaming for patient transport
• InSite™ Remote Service platform for remote troubleshooting
• High-capacity battery with more than 4 hours of typical runtime
• IP22 water-resistant design

Display

• Screen size: 15.6 inches diagonal
• Resolution: 1366 x 768 HD
• Controls: capacitive touchscreen and Trim Knob™
• Number of waveforms: up to 12

Monitoring Parameters

• ECG
• Respiration
• SpO2
• NIBP
• Temperature
• 2-channel invasive blood pressure
• Optional sidestream CO2, anesthetic agents, cardiac output, Entropy™, and NMT modules

Connectivity

• CARESCAPE™ network connectivity
• HL7 connectivity to EMR or third-party systems
• Wi-Fi IEEE 802.11a/b/g/n
• HDMI output for secondary display
• USB 2.0 port for service logs, settings import/export, and software updates

Physical Specifications

• Dimensions: 305 x 405 x 175 mm
• Weight: up to 5.2 kg / 11.5 lb with battery and without modules
• Ingress protection: IP22
• Battery runtime: more than 4 hours with typical configuration
• Power input: 100 to 240V AC, 50/60 Hz
