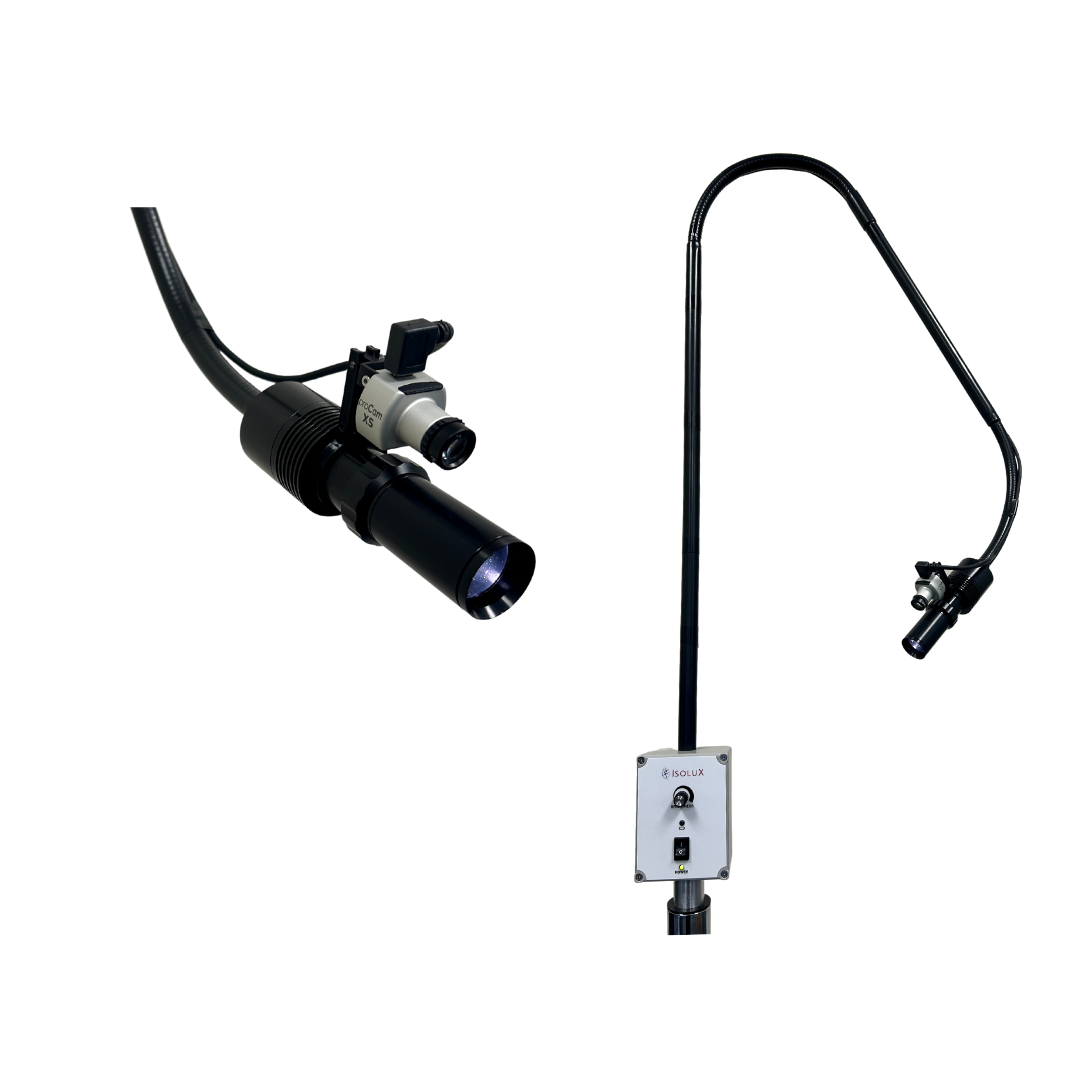

IsoLED Flex I clinical light w/ mounted proCam XS, IL-2501 + IL-2507
Description
IL-2501 + IL-2507 Package Includes:
- Flex I clinical light w/ mounted proCam XS:
- clinical light on table rail mount w/ battery charger;
- 4k camera w/ installation kit (cables, foot pedal, 25mm lens, etc).
- (Lens Options Available: 8mm, 16mm, or 35mm lens;)
- (Mount/Stand Options: ceiling mount or mobile stand)
Exam Light Features
- Flexible Gooseneck
- Cordless
- Variable spot size of 0.5 – 3.5″ (1.3 – 8.9 cm)
- Intensity variation of 3-100%
- CRI of 92 to give the best tissue rendition
- Battery life over 10 hours
- 45,000 Lux @ 12″ (30 cm)
- Available with either a mobile floor stand, wall mount, or examination/surgical table rail mount.
- Optional 4K Camera Add-on Available.
-
Battery-Powered LED Exam Lights
The IsoLED Flex I LED Examination Light is a battery-powered mobile exam light with a single LED bulb delivering 45,000 Lux at 12″ (30 cm). Offers portability without the encumbrance of a power cord, and has a flexible gooseneck that can be used for any examination or medical office procedure.
With over 10 hours of full intensity, the Flex I LED Examination Light offers an all-day solution for a doctor’s office or ambulatory medical facility. The Flex I’s high efficiency design allows for reduced energy consumption and reduced cost of ownership, while its 50,000 hours of LED life provides for a maintenance-free device. The manufactured design of the IsoLED Flex I follows and surpasses the Energy Star Requirements.
A CRI rating of 92 produces a very high color rendition for accurate diagnosis in any medical exam procedure. Furthermore, the use of sharp cutoff optics allows for a well-defined spot with a good depth of field.
The IsoLED Flex I battery-operated unit is an ambulatory unit that can be moved to any location utilizing its five–wheelbase. Features various mounting options: mobile floor stand, wall mount, or examination/surgical table rail mount. Its extremely flexible arm (gooseneck) allows it to be positioned at any angle and distance from the patient.
Features of the Flex I:
- Mobile light base with flexible gooseneck
- Variable spot size of 10-110mm
- Intensity variation of 3-100%
- CRI of more than 90 to give the best tissue rendition
- Battery life over 10 hours
- 45,000 Lux @ 300mm
- Available with either a mobile floor stand, wall mount, or surgical table rail mount
Exam light Includes (Standard Model)
- Flex I Unit attached to 22-inch mobile stand
- Lithium Ion Battery
- Charger
- Manual
Exam Warranty
- Three (3) years on LED Exam Light
- One (1) year on Battery Pack
Exam light Specifications
4,000° K pure white iIllumination
45,000 Lux @ 12″ (30 cm)
92
3-100%
Over 50,000 Hours
Near-zero
Controls the intensity, on/off, and features “Power On” green indicator.
10 hours of continuous operation at the maximum light intensity
4K HD Camera Headlight System

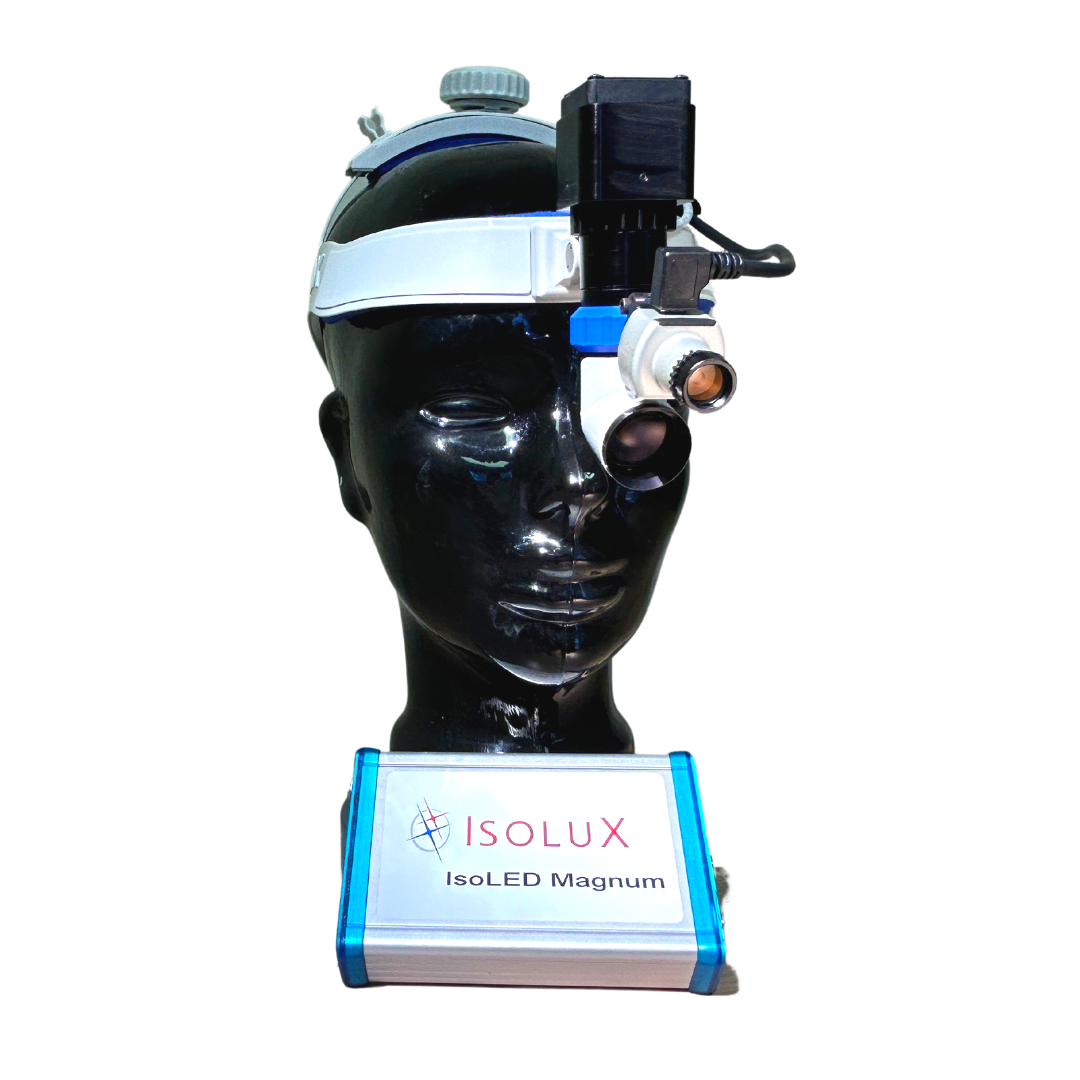

IsoLux has partnered with Futudent, the leader in 4K miniature camera technology. We offer the latest generation camera, the proCam XS to our surgical headlights or examination lights. Pictured here, you can see the proCam XS affixed to the Magnum surgical headlight and the Flex I examination light.

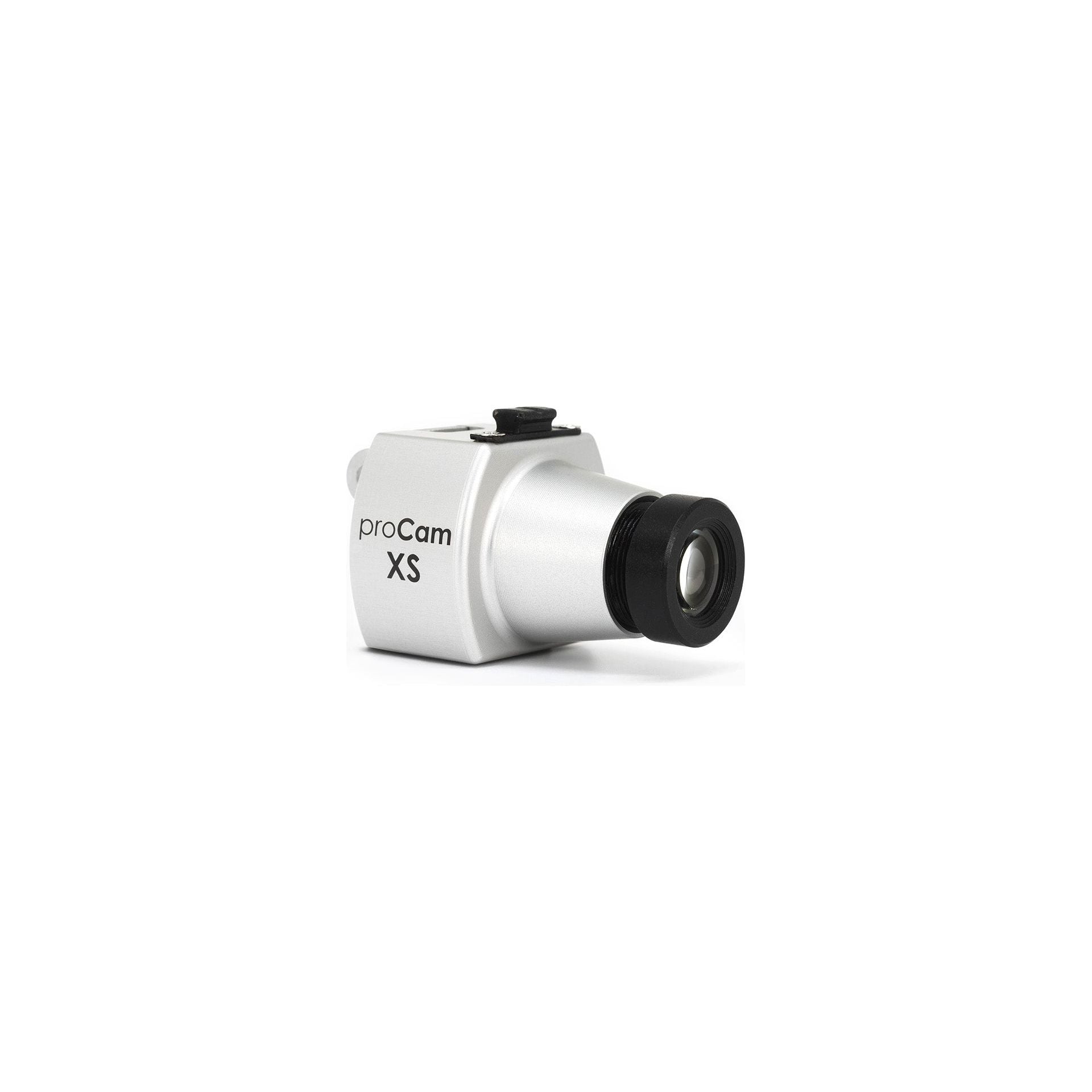

The proCam XS features a high quality sensor that captures 8MP still images and 4K resolution videos when affixed to a surgical headlight or exam light. The Sony sensor combined with a UHD lens allows for deep, clear magnification. With proCam XS, it’s easy to capture stable, super high-quality video and still images with no interruptions to the procedure.
IsoLux has partnered with Futudent, the leader in 4K miniature camera technology. We offer the latest generation camera, the proCam XS to any of our surgical headlights or examination lights to create a complete Surgical Camera System. The proCam XS features a high quality sensor that captures 8MP still images and 4K resolution videos from surgical headlights or exam lights. The Sony sensor combined with a UHD lens allows for deep, clear magnification. With proCam XS, it’s easy to capture stable, super high-quality video and images with no interruptions to the procedure. The camera comes standard with a 25mm lens, but other lenses are available. To see the difference in lens sizes, magnification, and field of vision, click the links. Click to see the lens comparison on a patient.

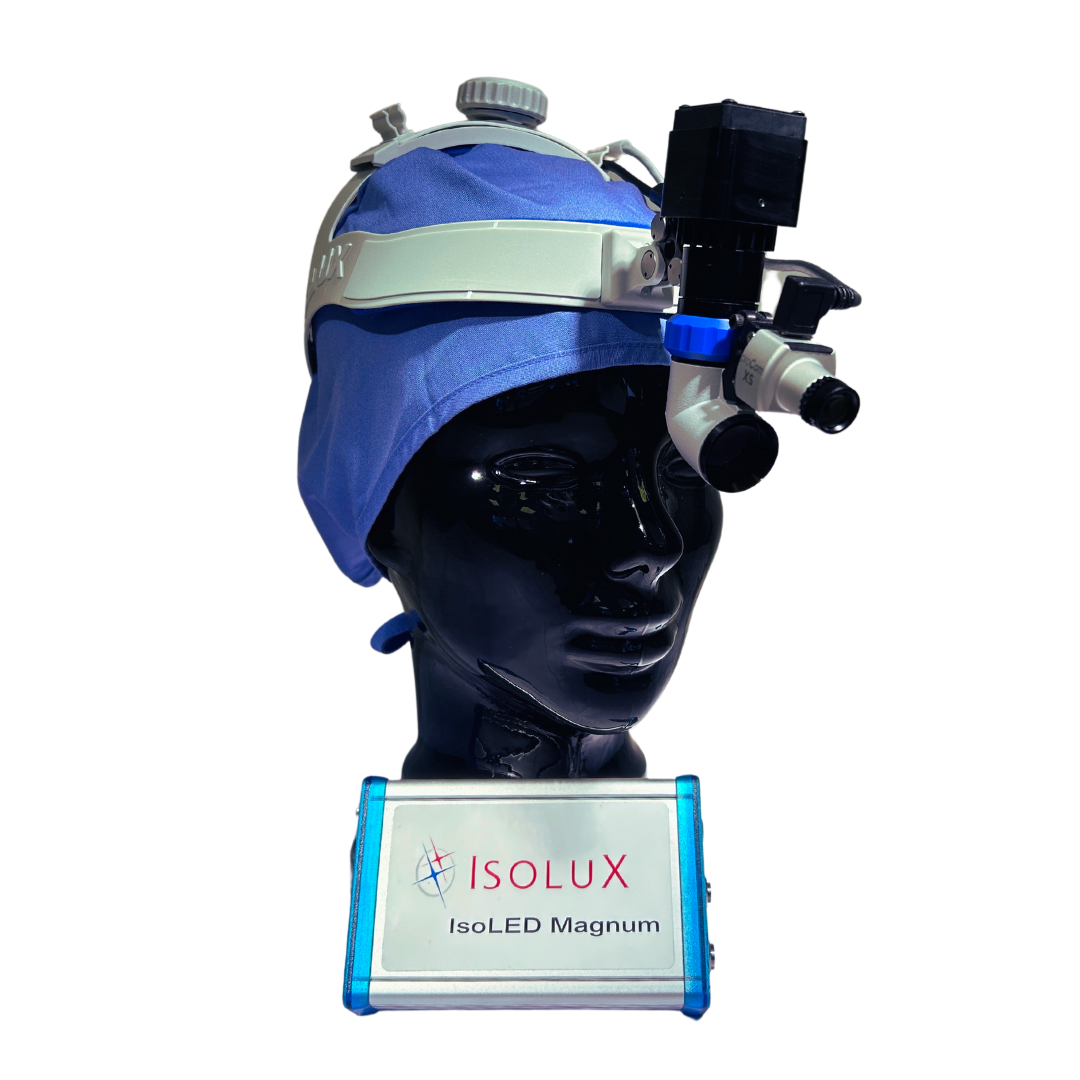

The surgical headlight with mounted proCam XS can be worn by the surgeon or scrub tech for video recording or through secondary monitor in the operating room. Each surgical camera is open source and easily integrates with the video software of your choice. The 4K camera can livestream or record procedures for surgical training or capturing HD video for patient records, all from the unique perspective of the surgeon or technician.
4K HD Camera Headlight System Specifications:
- Sony IMX 415 sensor
- Resolution: 4K 30fps / 1080p 30fps / * 720p 30fps / 8MP images
- Full aluminum body
- Weight: 14 grams (0.49 ounces)
- Dimensions: 30 x 20 x 20 mm (1.18 x 0.79 x 0.79 inches)
- Optics: Exchangeable UHD lenses with manual focus(choice of one): 8mm/16mm/25mm/35mm
- Mounting options:
- Loupe mount (universal/loupe specific mounts)
- Overhead light or Headband
- Gooseneck/flexible arm
- Wired, hands-free connection with 1.5m USB camera cable and USB foot pedal
- Wireless connection with On-The-Go cable to and Android phone and on-screen control
- Camera is powered through the USB / OTG cable – no batteries.
- Five (5) software licenses included with the camera
- Recording software: Windows, MacOS & Android
- EU MDR 2017/745 Class I
- Camera warranty: 2 years standard
