Description:



IL-2410-01 + IL-2507 Package Includes:

  • PIus+ headlight w/ mounted proCam XS:
  • headlight w/ carrying case,
  • 2 battery power packs, battery charger;
  • 4k camera w/ installation kit (cables, foot pedal, 25mm lens, etc).
  •  (Options Available: 8mm, 16mm, or 35mm lens)
IL-2410-01 + IL-2507 PIus+ headlight w/ mounted proCam XS: headlight w/ carrying case, 2 battery power packs, battery charger; 4k camera w/ installation kit (cables, foot pedal, 25mm lens, etc).
Lens options (Options Available: 8mm, 16mm, or 35mm lens.)

Headlight Features

  • Variable Spot Control of 0.39 – 3.94″ (1 – 10 cm)
  • Up to 4.5 Hours of Runtime Per Battery
  • CRI more than 92 to give the best tissue rendition
  • 40,000 Lux Light Intensity

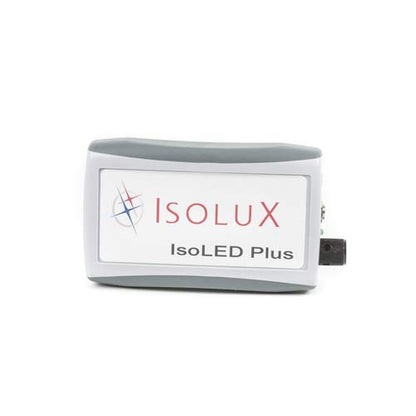

  • Featherlight battery (only 190 grams)
  • Flashing low battery alarm indicator

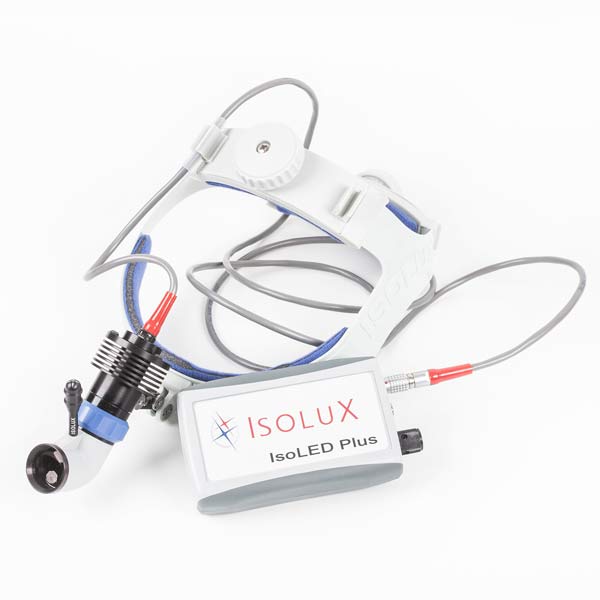

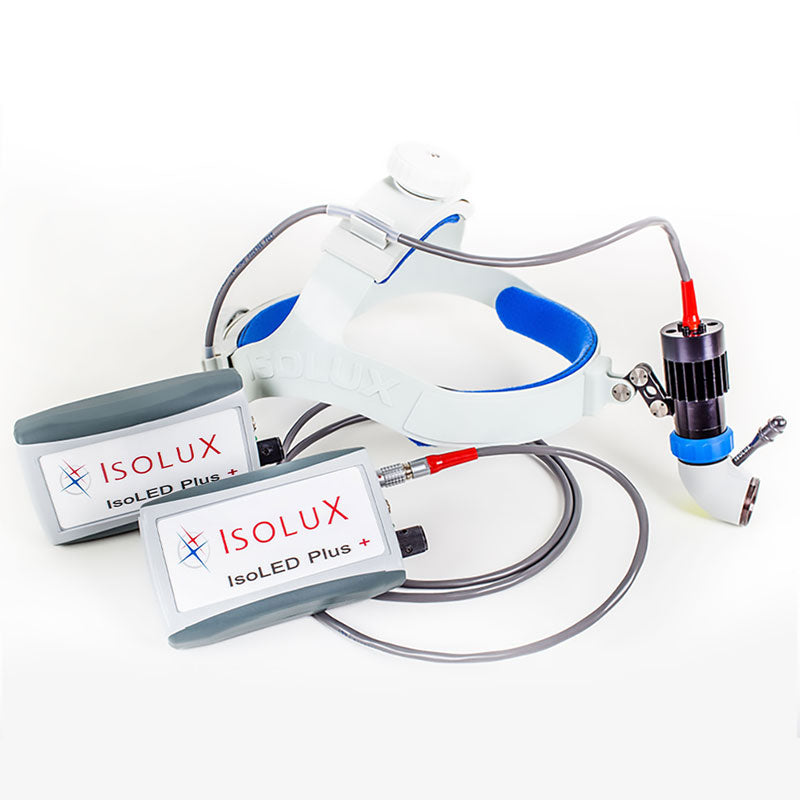

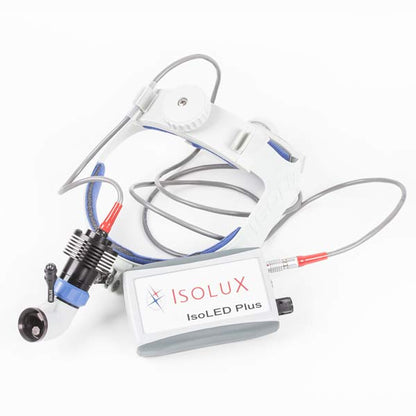

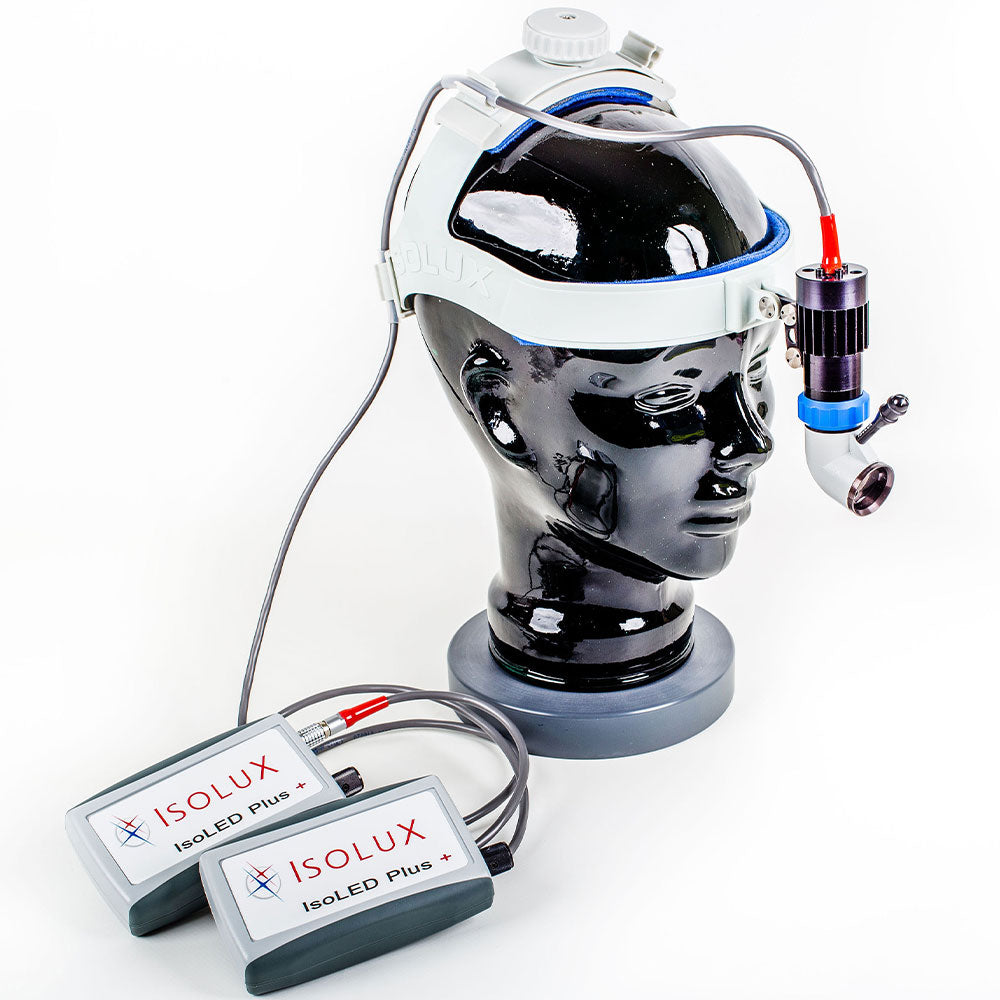

  • IsoLED Plus+ Headlight Assembly
  • Optical Control Joystick (Qty: 1)

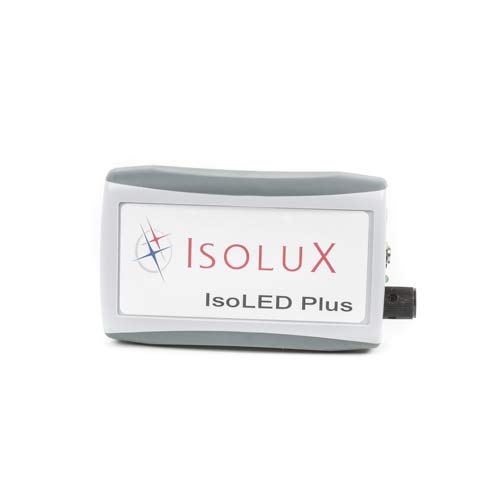

  • Lithium Battery Pack (Qty: 2)
  • AC/DC Battery Charger
  • Replaceable Headband Inserts (Qty: 5 sets)
  • Storage Bag
  • User Manual

Headlight Warranty

  • Three (3) Years on LED Headlight
  • One (1) Year on Battery Pack

Headlight Specifications

92

40,000 Lux @ 12″ (30cm)

12-100%

For easy spot movement, detachable for sterilization (Qty 1)

Two battery packs to enable 9 hours of continuous operation at max intensity

190 grams

4,000°K (a warm, white light)

290 grams

4.5 hrs at full intensity per battery (9hrs total with both batteries)

2

With replaceable foam inserts

4K HD Camera Headlight System

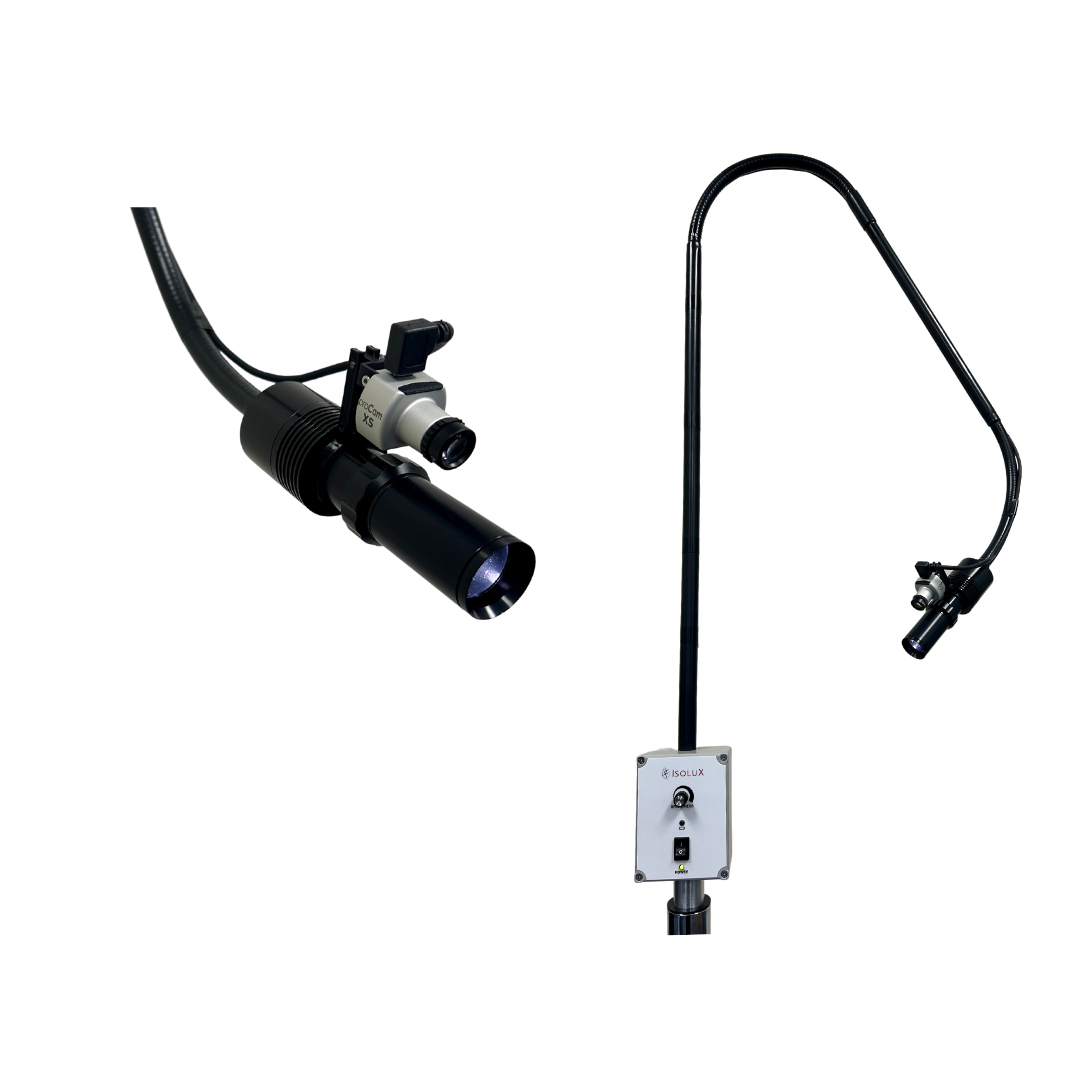

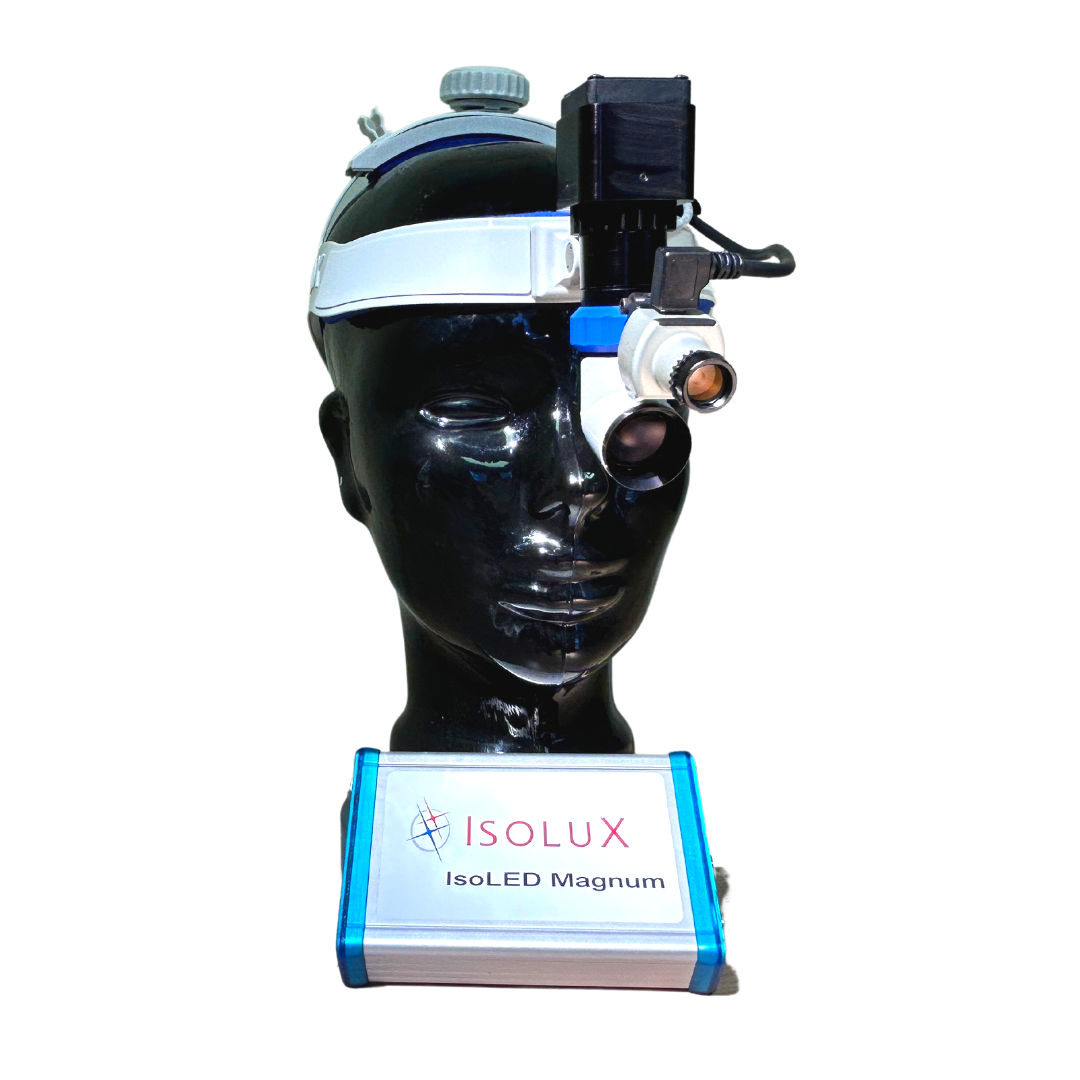

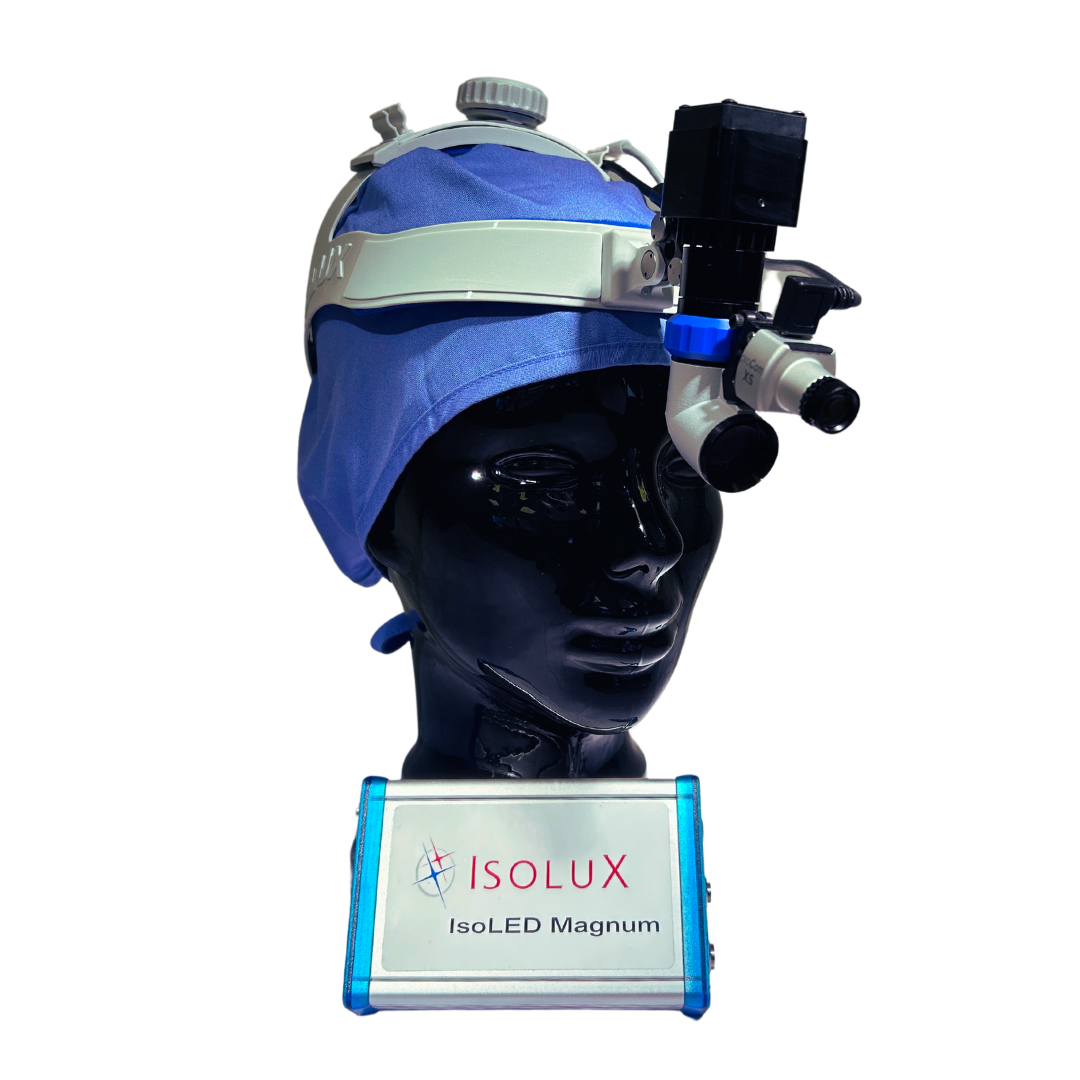

IsoLux has partnered with Futudent, the leader in 4K miniature camera technology. We offer the latest generation camera, the proCam XS to our surgical headlights or examination lights. Pictured here, you can see the proCam XS affixed to the Magnum surgical headlight and the Flex I examination light.

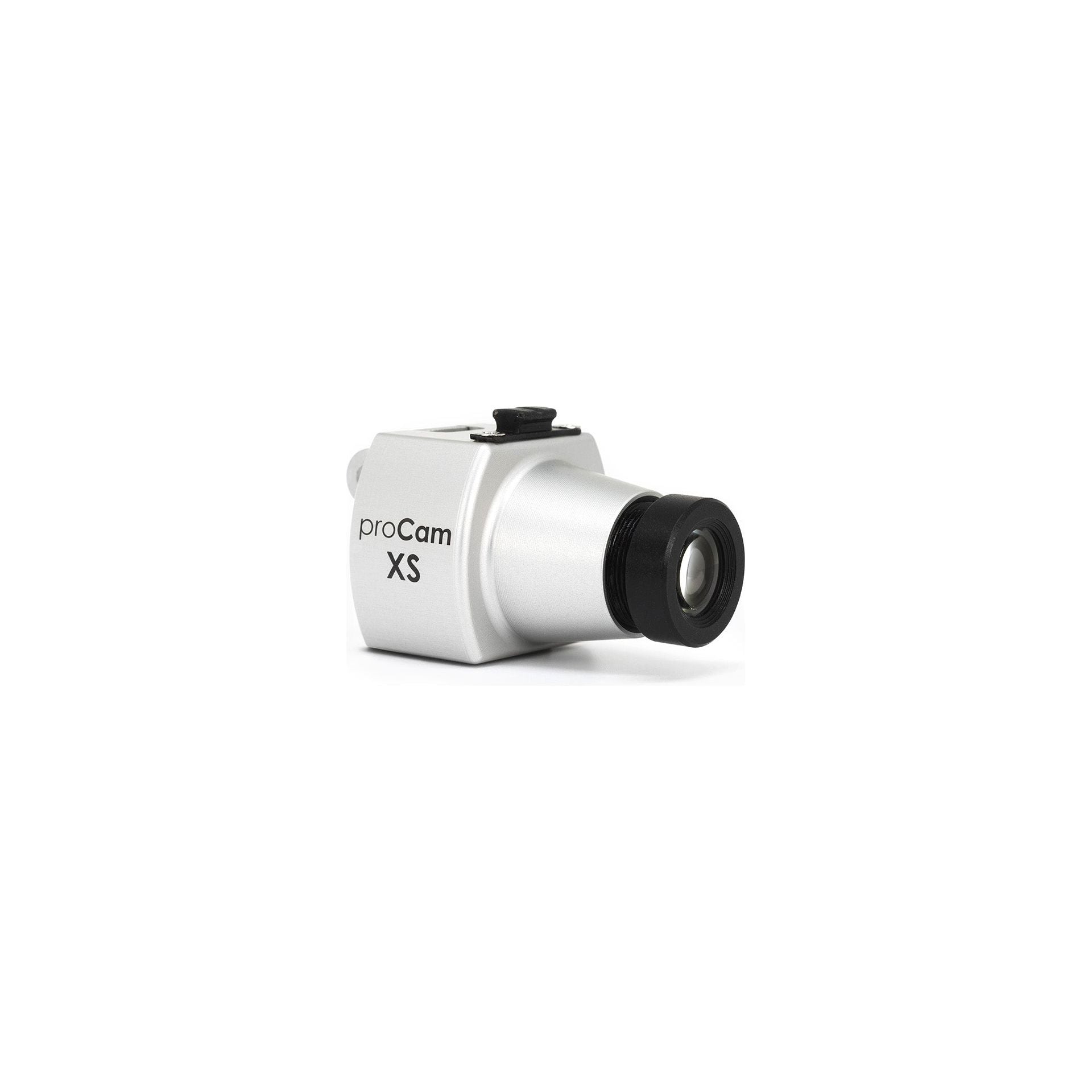

The proCam XS features a high quality sensor that captures 8MP still images and 4K resolution videos when affixed to a surgical headlight or exam light. The Sony sensor combined with a UHD lens allows for deep, clear magnification. With proCam XS, it’s easy to capture stable, super high-quality video and still images with no interruptions to the procedure.

IsoLux has partnered with Futudent, the leader in 4K miniature camera technology. We offer the latest generation camera, the proCam XS to any of our surgical headlights or examination lights to create a complete Surgical Camera System. The proCam XS features a high quality sensor that captures 8MP still images and 4K resolution videos from surgical headlights or exam lights. The Sony sensor combined with a UHD lens allows for deep, clear magnification. With proCam XS, it’s easy to capture stable, super high-quality video and images with no interruptions to the procedure. The camera comes standard with a 25mm lens, but other lenses are available. To see the difference in lens sizes, magnification, and field of vision, click the links. Click to see the lens comparison on a patient.

The surgical headlight with mounted proCam XS can be worn by the surgeon or scrub tech for video recording or through secondary monitor in the operating room. Each surgical camera is open source and easily integrates with the video software of your choice. The 4K camera can livestream or record procedures for surgical training or capturing HD video for patient records, all from the unique perspective of the surgeon or technician.

4K HD Camera Headlight System Specifications:

  • Sony IMX 415 sensor
  • Resolution: 4K 30fps / 1080p 30fps / * 720p 30fps / 8MP images
  • Full aluminum body
  • Weight: 14 grams (0.49 ounces)
  • Dimensions: 30 x 20 x 20 mm (1.18 x 0.79 x 0.79 inches)
  • Optics: Exchangeable UHD lenses with manual focus(choice of one): 8mm/16mm/25mm/35mm
  • Mounting options:
    •   Loupe mount (universal/loupe specific mounts)
    •   Overhead light or Headband
    •   Gooseneck/flexible arm
  • Wired, hands-free connection with 1.5m USB camera cable and USB foot pedal
  • Wireless connection with On-The-Go cable to and Android phone and on-screen control
  • Camera is powered through the USB / OTG cable – no batteries.
  • Five (5) software licenses included with the camera
  • Recording software: Windows, MacOS & Android
  • EU MDR 2017/745 Class I
  • Camera warranty: 2 years standard



IsoLED Plus+ Headlight w/ Mounted ProCam XS, IL-2410-01 + IL-2507

$5,980.00 $5,232.50
-
+
