W&H Lexa Med Set 1b – Value Plus – 90000371
W&H Lexa Med Set 1b – Value Plus – 90000371
SKU: SKU: 90000371
Couldn't load pickup availability
Lexa & Lexa Plus Product Flyer
The W&H Lexa and Lexa Plus sterilizers are built for demanding sterilization workflows, delivering fast cycle times, high-capacity chambers, and dependable performance for busy healthcare and dental practices. Designed to improve instrument turnaround while reducing maintenance requirements, the Lexa series helps keep your workflow moving efficiently.
This flyer highlights key features, cycle performance, maintenance benefits, and a side-by-side comparison of the Lexa and Lexa Plus sterilizers.
High capacity and efficiency
Lexa offers versatile cycle program options for medium and larger loads, guaranteed by the closed-door drying process with HEPA filters and the use of fresh water for each cycle.
Sterilization on a high standard
Built to offer more of all that counts in every day medical infection control.
Your sterilization process deserves Lexa!
- Increased efficiency due to the large chamber capacity and short cycle times, including excellent load drying.
- Increased flexibility due to the user-friendly tray and exclusive rack design.
- Increased usability due to the simple and intuitive menu interface, high-end color touchdisplay and ergonomic design.
- Increased protection due to a complete and customizable traceability system.
Fastest Cycles depending on the load
Flexibility in cycle selection
Ease of use thanks to smart interface and user-friendly menu structure
Extended Traceability (optional) thank to Wi-Fi connection and Mobile App
Automatic water filling (optional) for time saving and ease of use
User authentication and load release option (optional) for a complete and customized traceability system
Built-in USB logger for the digital cycle documentation
Barcode label printer (optional) for the extension of the documentation system
8 kg (18 lbs) sterilized and dried in 30 minutes!

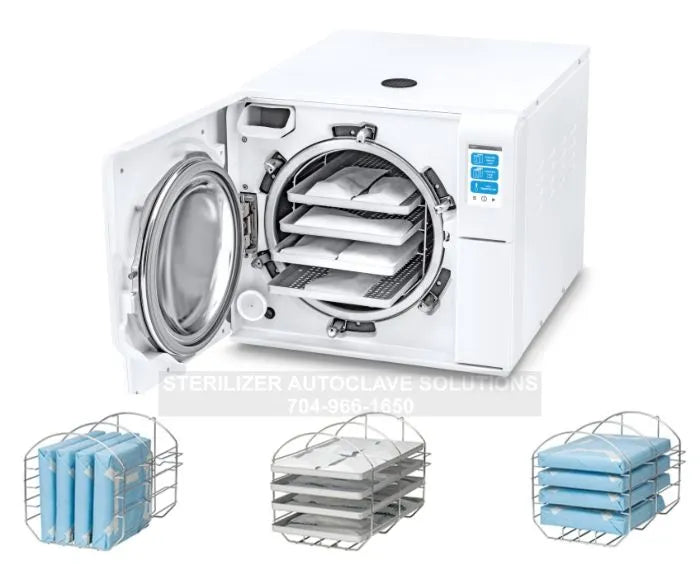

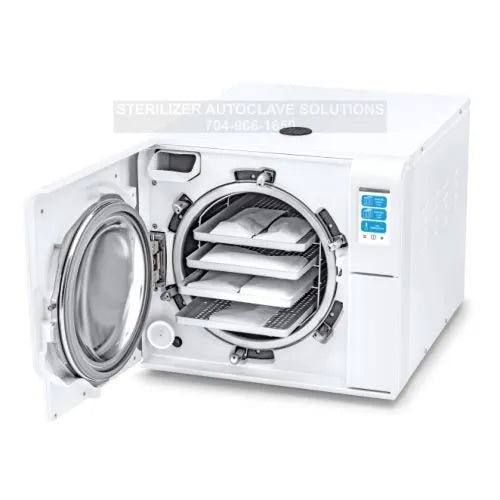

Higher efficiency due to higher capacity … Lexa comes with 4 large trays along with a unique rack providing larger loading surface and more loading options.
… and less cycle time. Lexa offers versatile program options for medium and larger loads in order to reduce overall cycle duration.
Your advantages at a glance
- User-friendly interface and high-end colour touchscreen for simple navigation to all sterilization option
- Customizable drying time
- Large capacity sterilizer chamber with unique tray and exclusive design
- Versatile sterilization program options with short cycle times
- Superior vacuum-assisted drying
- Meets stringent hygiene standards, including dynamic pulsed air removal, closed door drying and single-use water management
- Easy maintenance – Lexa does not require periodic execution of cleaning cycles
- Programmable cycle start
- Excellent value for money
- Automatic digital cycle recording on USB stick
- User authentication and load release (optional)
- Barcode label printing (optional)
| Sterilization Cycle | Unwrapped | Pouches Medium Load |
Pouches Large Load |
Pouches & Wrapped Cassettes |
Wrapped Cassettes | Low Temperature |
|---|---|---|---|---|---|---|
| Temperature: | 132°C (270°F) | 132°C (270°F) | 132°C (270°F) | 132°C (270°F) | 132°C (270°F) | 121°C (250°F) |
| Holding time (minutes): | 4’ | 4’ | 4’ | 4’ | 4’ | 30’ |
| Total cycle duration (minutes) including drying*: | 26’–39’ | 43’–53’ | 48’–58’ | 53'-64' | 58'-71' | 73’–79’ |
| Max. load (excluding trays): | 8.1 kg (18 lbs) | 1.4 kg (3 lbs) | 2.7 kg (6 lbs) | 5.0 kg (11 lbs) | 6.4 kg (14 lbs) | 2.3 & 2 kg (5 & 4.4 lbs) including trays |
| * Cycle times are approximate and may vary depending on voltage and instrument loads. | ||||||
Lexa sterilizers were designed, certified, and validated according to the following standards and directives.
| 93/42/CEE | Medical Device Directive |
| EN 13060 | Small steam sterilizer |
| IEC 61326-1 | Electromagnetic compatibility |
| IEC 61010-1 | Safety requirements |
| IEC 61010-2-040 | Specific requirements for steam sterilizer |
| IEC 61770 | Back syphonage |
| ASME* | Boiler and pressure vessel code |
| ANSI/AAMI ST55 | Table-top steam sterilizers |
| CSA C22.2 No. 61010-1-12 | Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements. |
| 2012/19/EU | Waste Electrical and Electronic Equipment (WEEE) |
| UL 61010-1 | Safety requirements for electrical equipment for measurement, control and laboratory use, general requirements. |
| The sterilizer can be validated according to EN ISO 17665-1 | |
| *On Request | |
