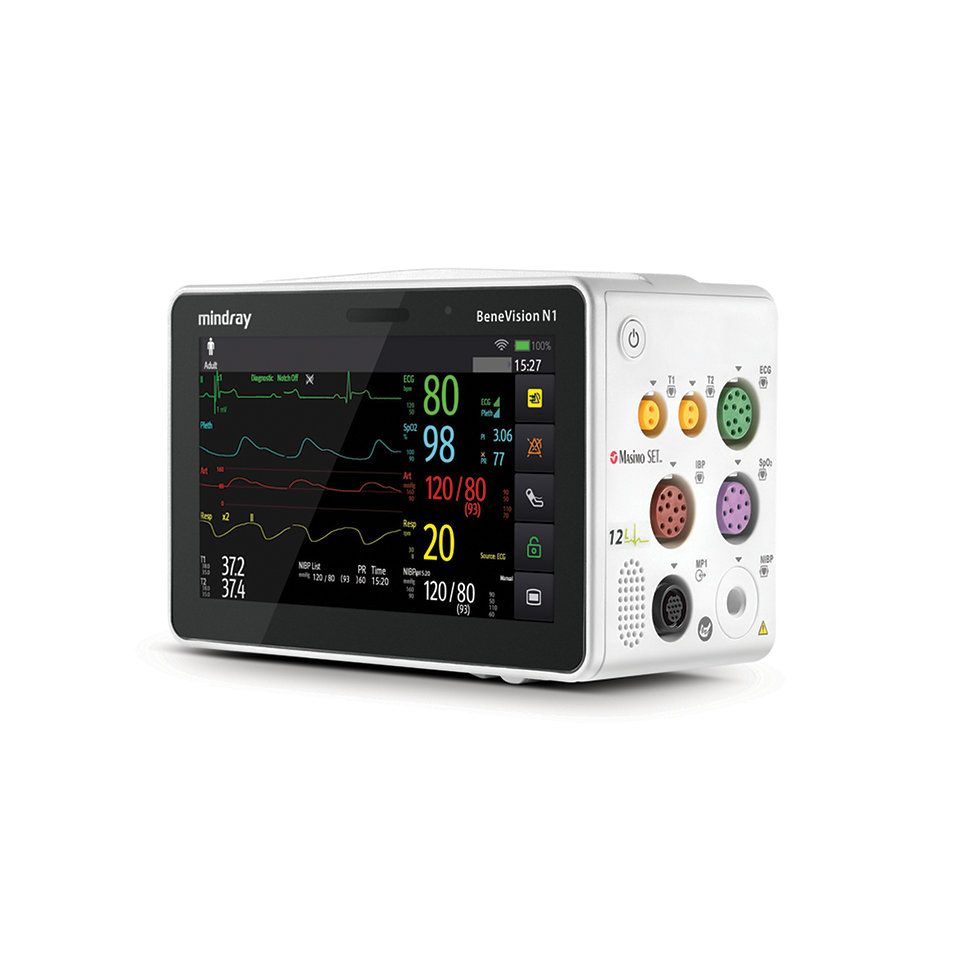

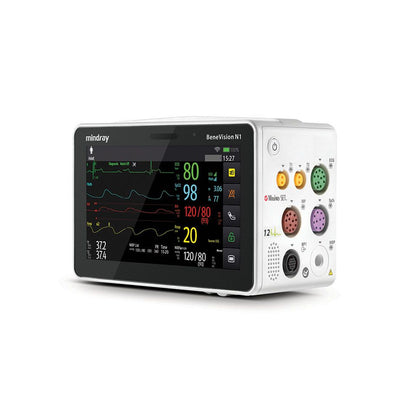

Mindray BeneVision N1 Patient Monitor/Module

Key Features

• Compact, lightweight design—weighs approximately 2.0 lbs.

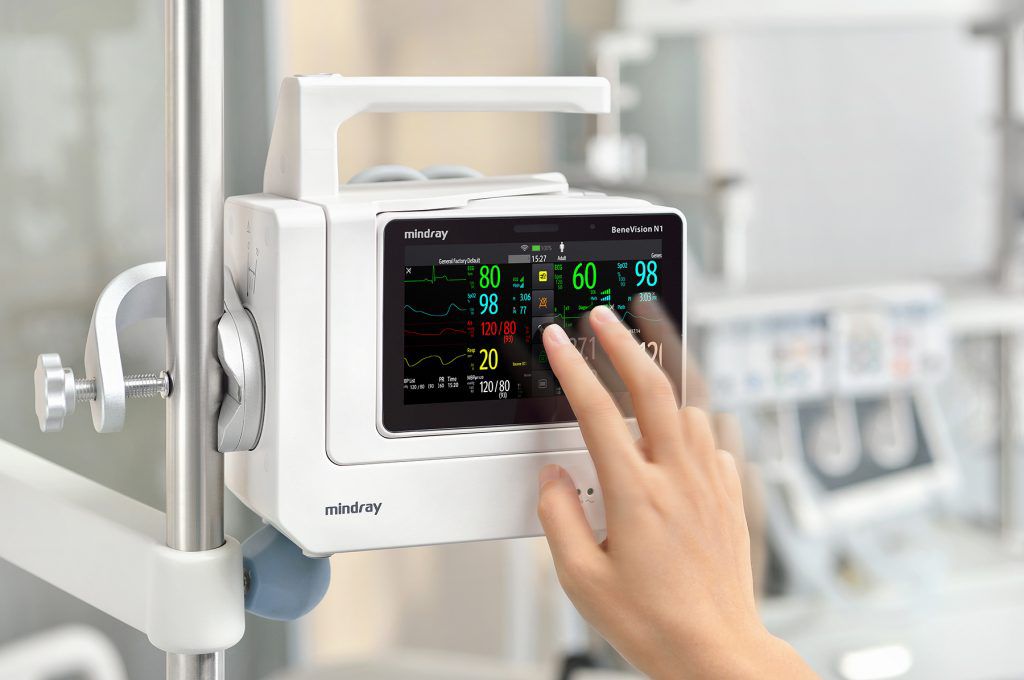

• 5.5-inch capacitive touchscreen with intuitive multi-gesture controls.
• Functions as a multi-parameter module, transport monitor, and bedside monitor.

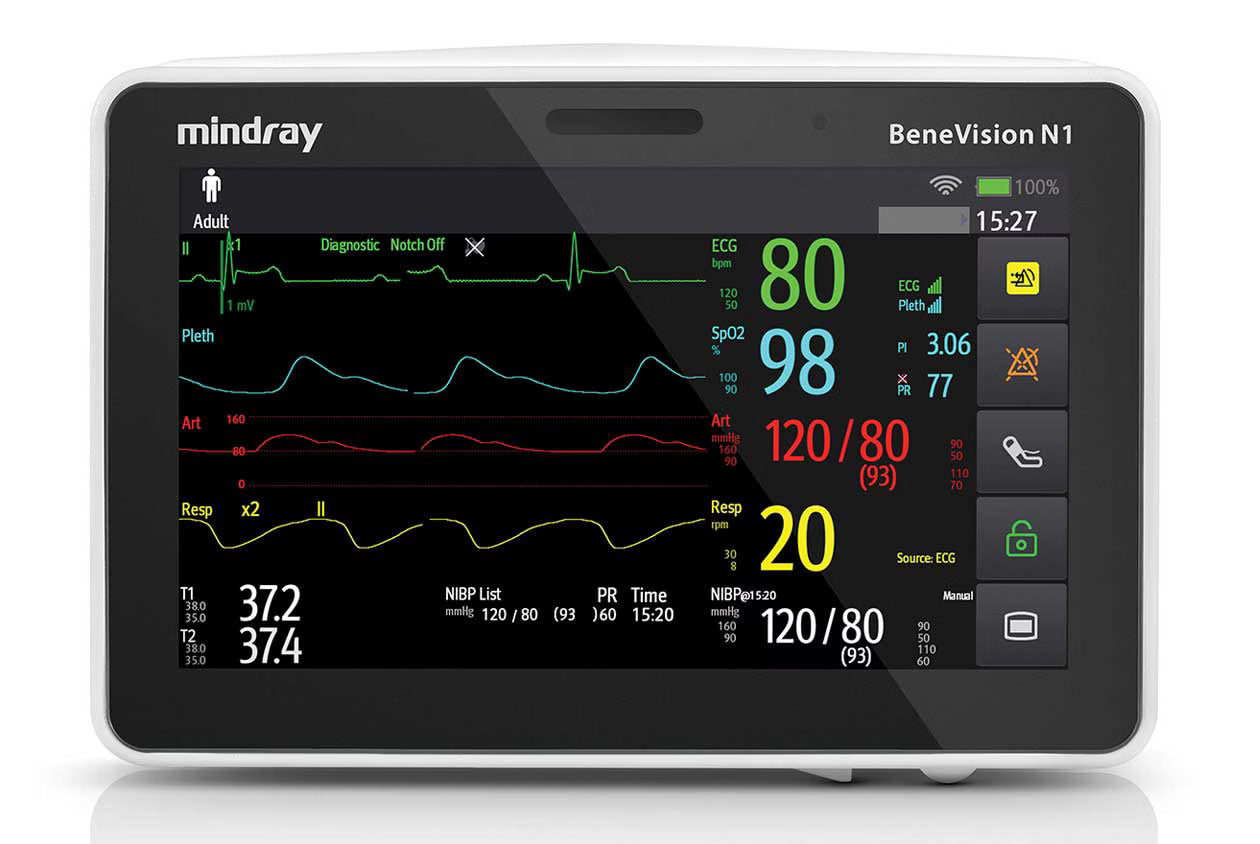

• Displays up to six waveforms simultaneously.
• Supports 3-, 5-, and 6-lead ECG monitoring, with select configurations supporting 12-lead ECG.
• Available with Masimo SET® or Nellcor® OxiMax® SpO₂ technology.
• Includes two invasive blood pressure channels, NIBP, respiration, and dual temperature monitoring.
• Arrhythmia analysis and atrial fibrillation detection are included, with ST analysis available on select configurations.
• Available with or without integrated CO₂ monitoring.
• Stores extensive patient data, including up to 48 hours of full-disclosure information.
• Standard 2.4/5 GHz dual-band wireless communication helps maintain data continuity during transport.
• Provides up to eight hours of battery operation without integrated CO₂.

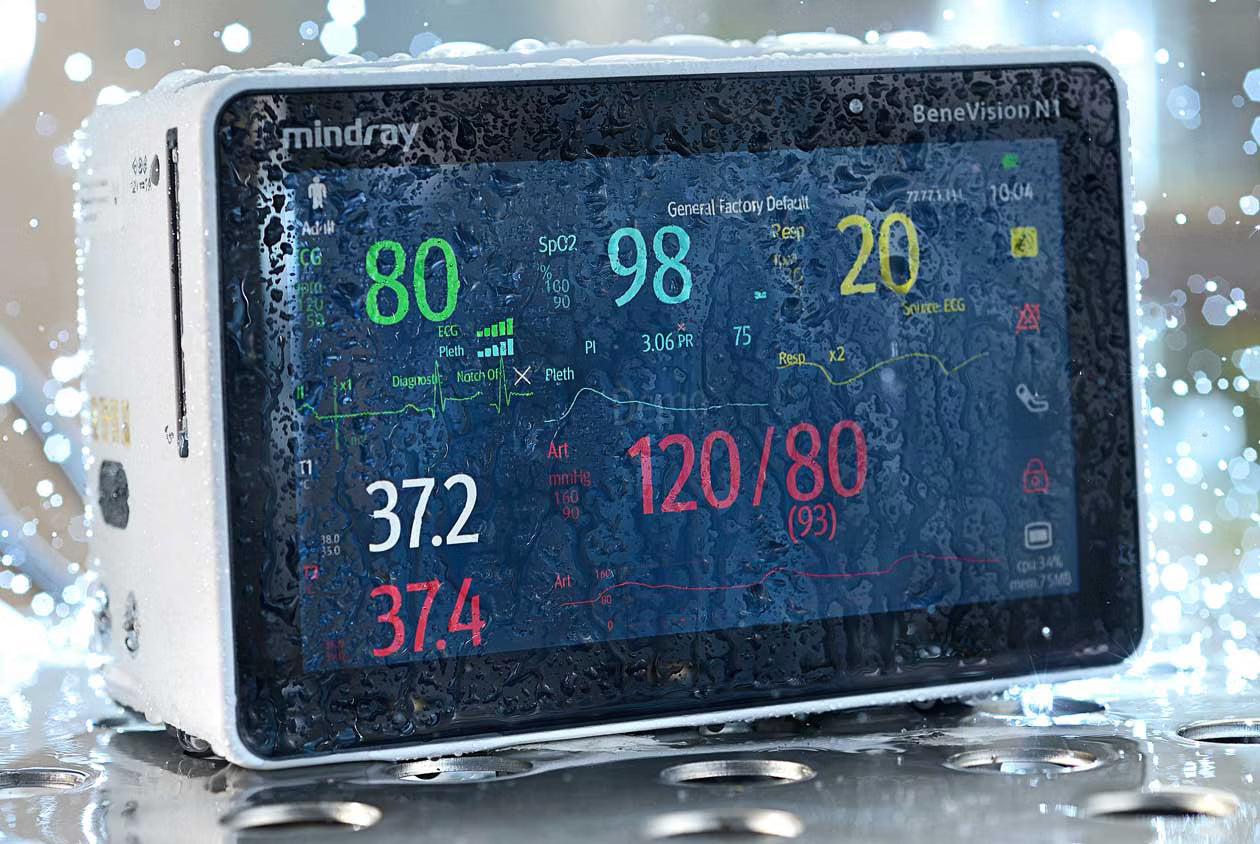

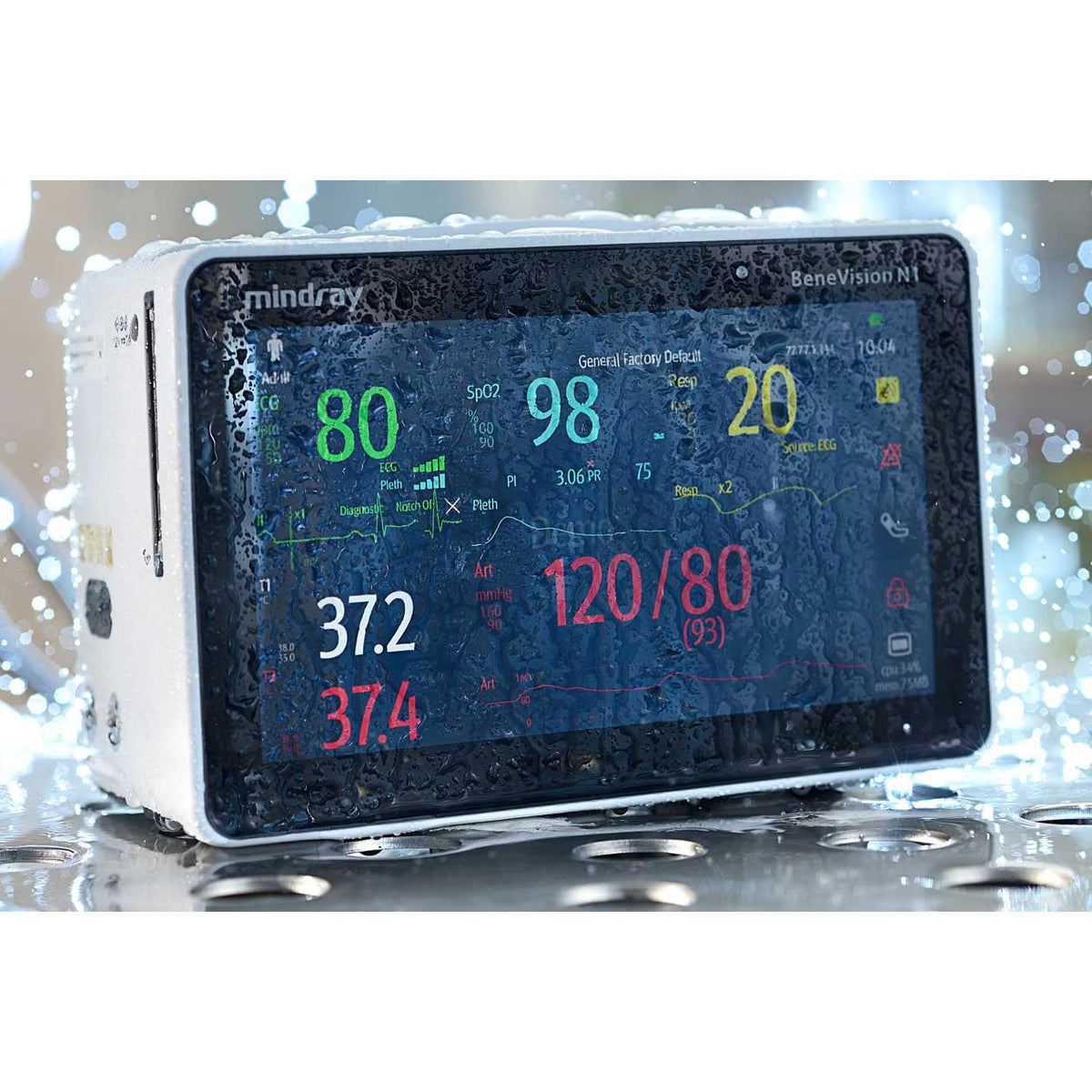

• IP44-rated protection against particles and water.
• Tested to withstand drops from up to 1.2 meters.

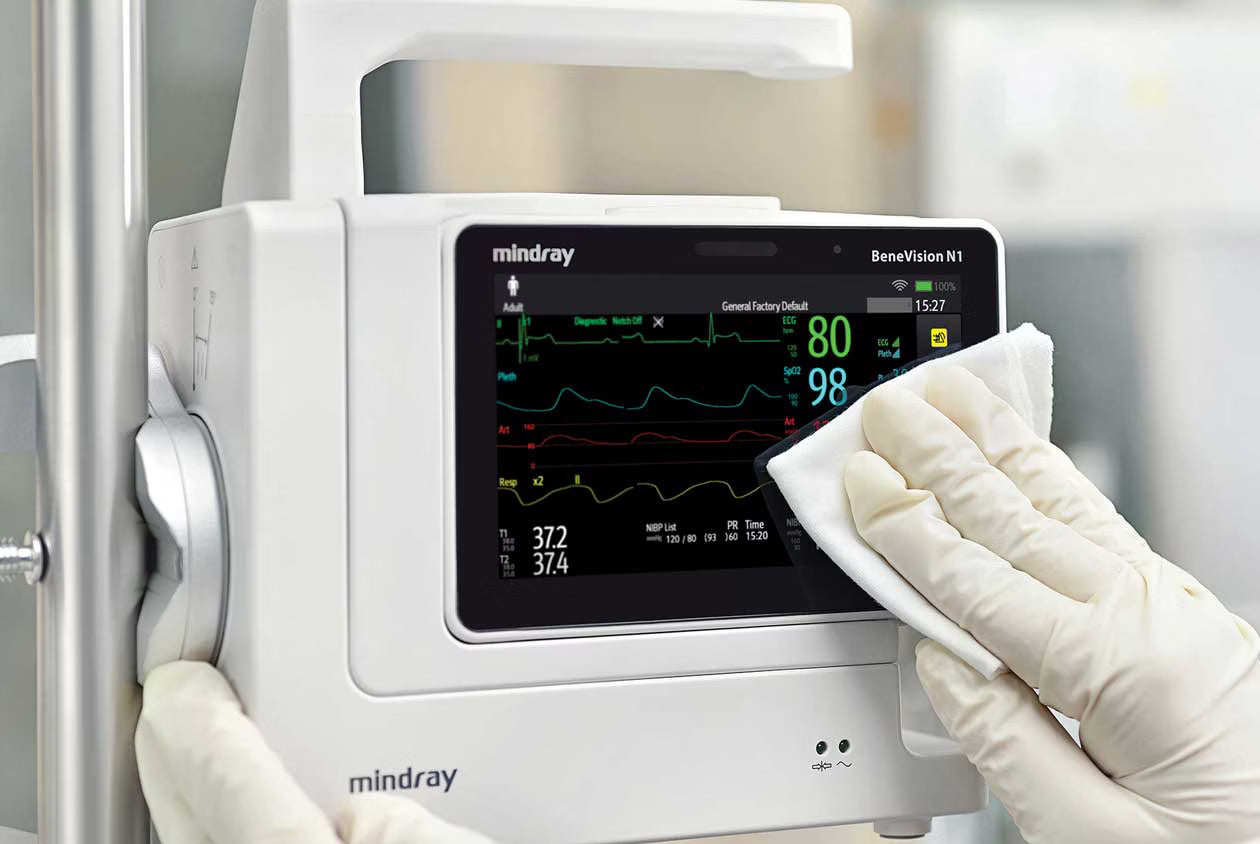

• Seam-minimizing housing is designed for easier cleaning and disinfection.
• Compatible with multiple mounting solutions, including the optional Transport Module Rack.
• Supports defibrillator synchronization.

One Monitor, Multiple Solutions

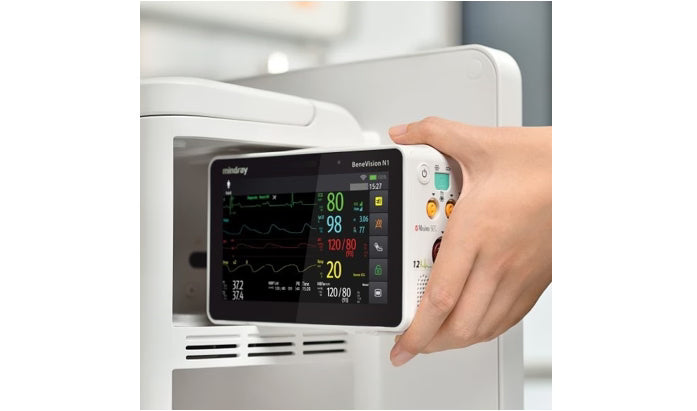

Multi-Parameter Module

The BeneVision N1 serves as the core parameter module for the BeneVision N-Series platform. It fits into the module bay of compatible N-Series monitors to provide comprehensive bedside monitoring while maintaining a continuous patient record.

Transport Monitor

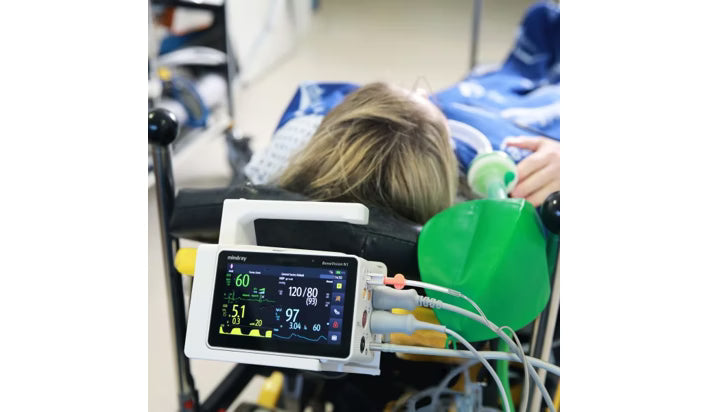

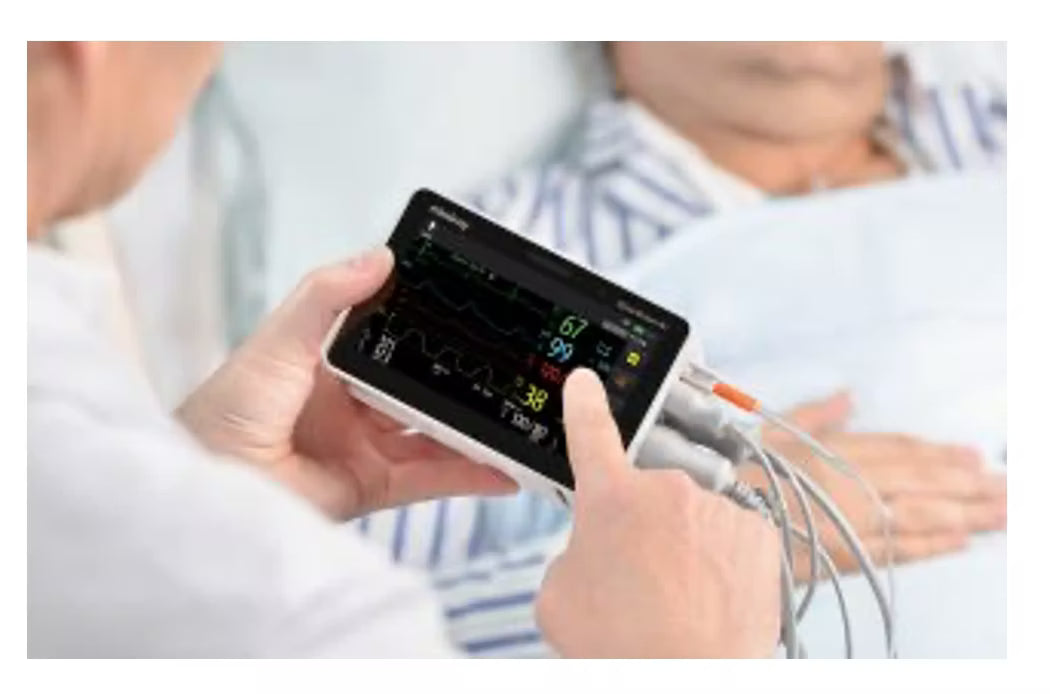

Remove the N1 from the bedside system and it immediately becomes a wireless transport monitor. Patient settings and monitoring data remain with the device, reducing cable changes and helping preserve continuity during transport.

Bedside Monitor

When connected to a compatible docking solution and Mindray 22-inch touchscreen display, the N1 expands into a full bedside monitoring system with multiple screen layouts, configurable quick keys, and detailed patient-data review.

Available Configurations

Choose the N1 configuration based on the required SpO₂ technology, CO₂ capability, and ECG analysis package. Available options include Masimo SET® or Nellcor® OxiMax® SpO₂, integrated CO₂ or no integrated CO₂, and standard arrhythmia or ST/arrhythmia analysis packages.

Some functions, accessories, mounting components, CO₂ capabilities, and 12-lead ECG accessories are configuration-dependent or sold separately.
