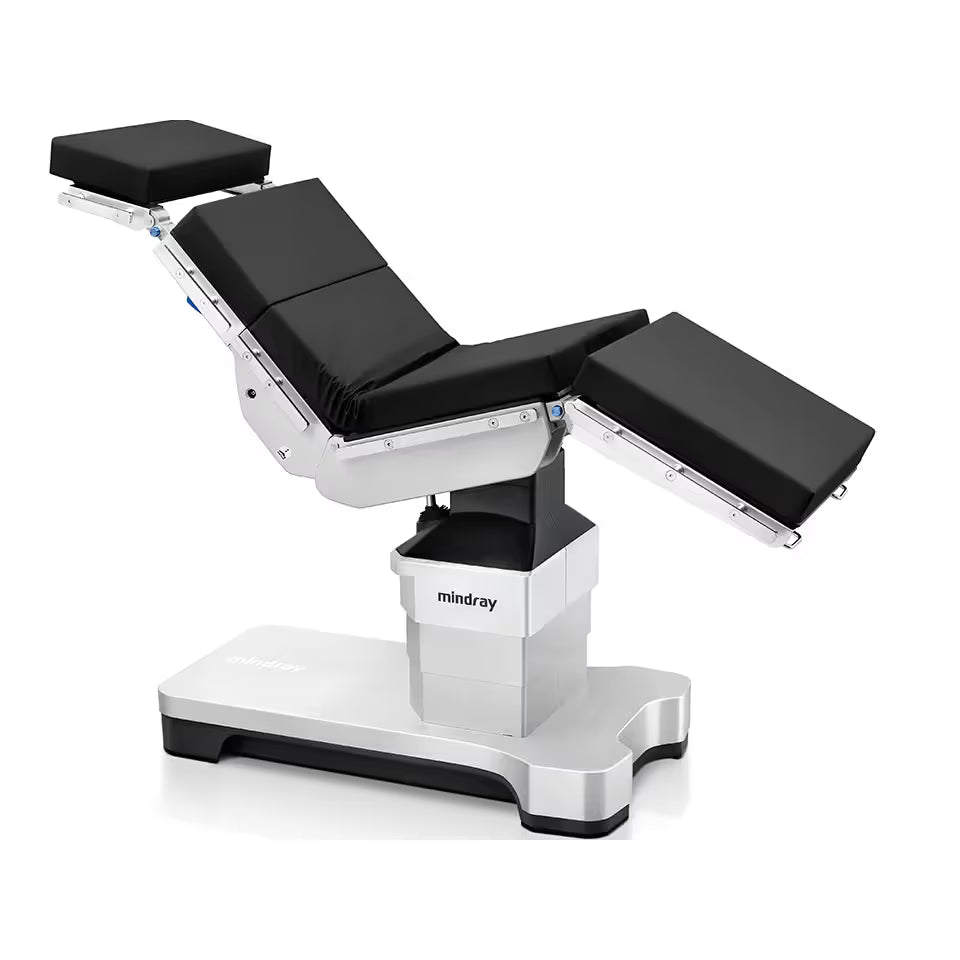

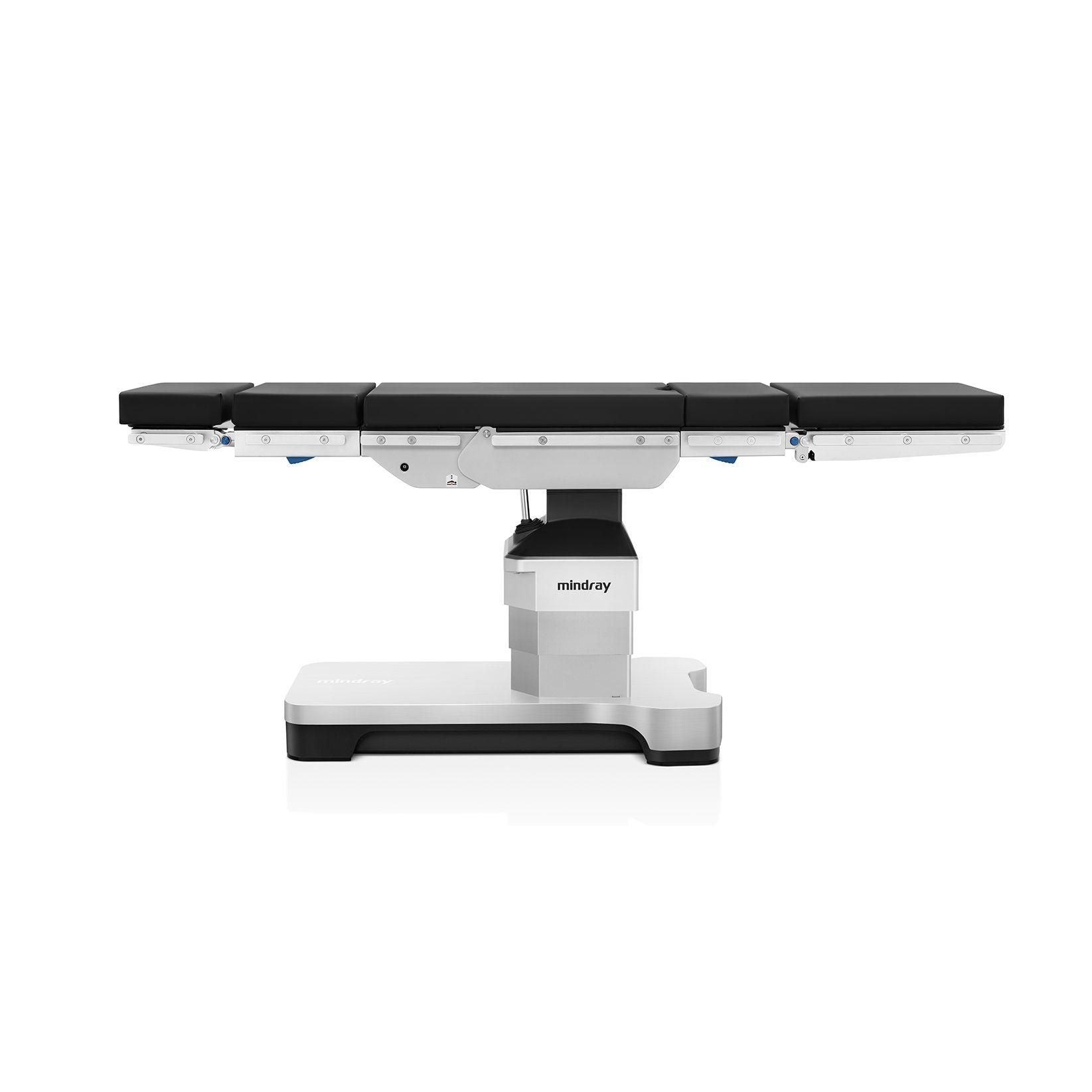

Mindray HyBase V6 Surgical Table

Meeting the Demands of Surgical Adaptability

In today’s complex surgical environments, clinicians face increasing demands including access challenges, ergonomic fatigue, and the need to accommodate diverse patient sizes. The Mindray HyBase V6 Surgical Table delivers unobstructed access, ergonomic comfort, and versatile positioning to support high-quality surgical care.

Designed for efficiency and precision, the HyBase V6 provides smooth motorized adjustments, intuitive controls, and reliable stability. Its advanced decompression pad system and innovative column design improve surgeon comfort while maintaining optimal patient support.

From bariatric procedures to neurosurgery and orthopedics, the HyBase V6 adapts to a wide range of surgical specialties while improving operating room workflow and patient safety.

• Motorized Precision Positioning – Adjustable height, tilt, and slide functions for accurate patient alignment
• Wide Height Range – Adjustable from 23.4" to 43" to accommodate various surgical specialties
• High Weight Capacity – Supports up to 1,000 lbs static lift and 550 lbs at full slide

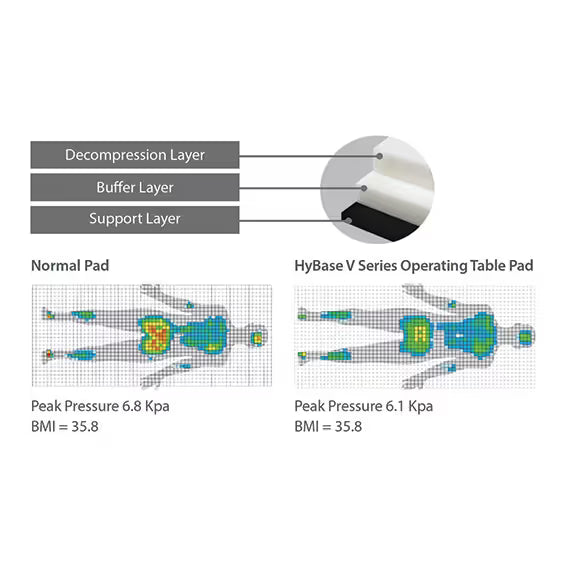

• Multi-Layer Decompression Pad – Reduces pressure points and improves patient comfort

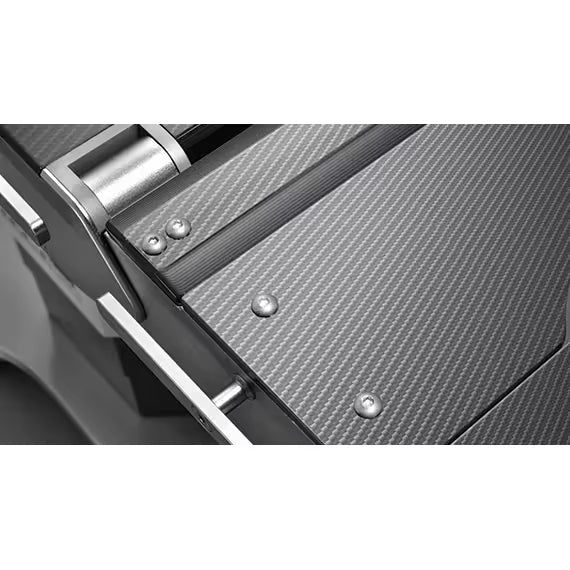

• Carbon Fiber Tabletop Option – Radiolucent surface for optimal imaging and C-Arm compatibility

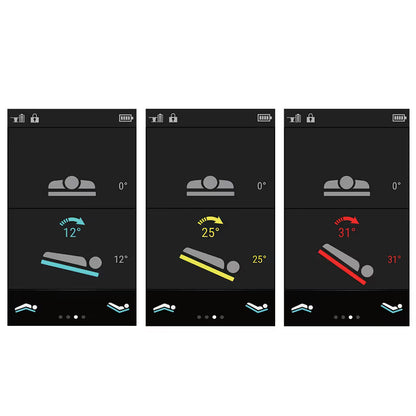

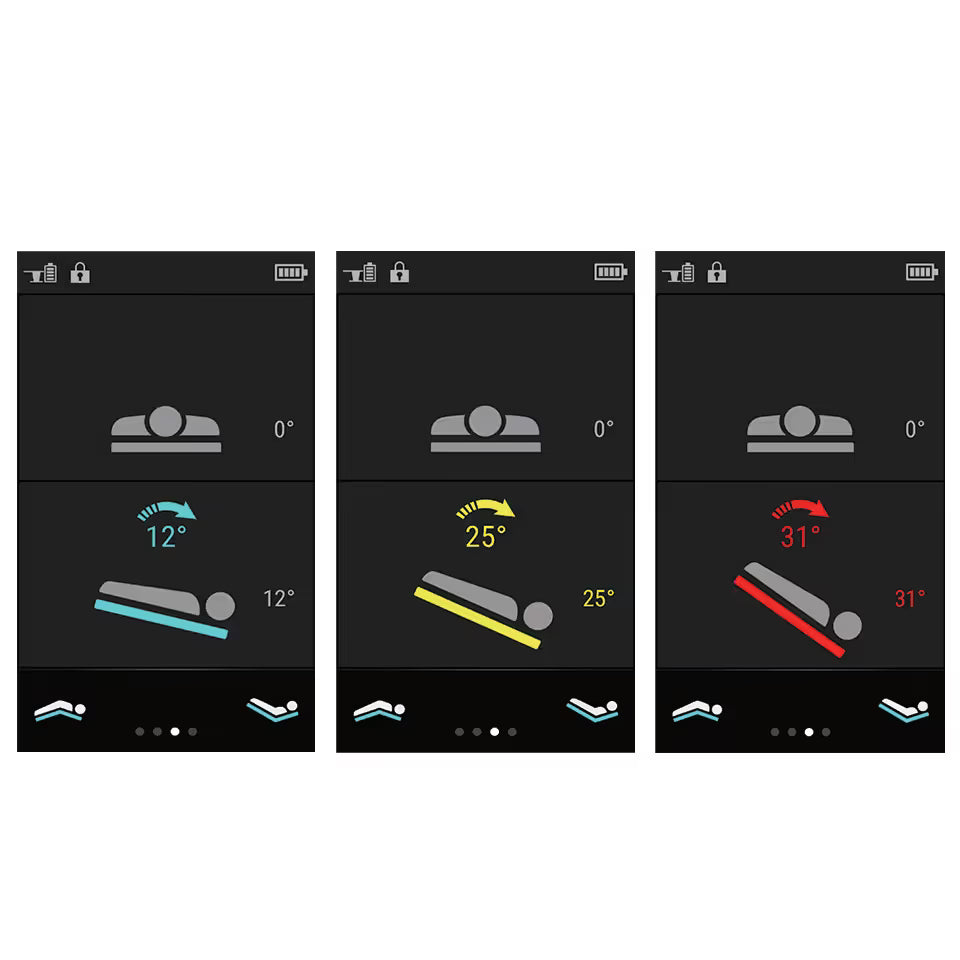

• Color-Coded Indication Technology – Displays tilt angles and alerts during excessive Trendelenburg or reverse Trendelenburg positioning
• Trendelenburg & Lateral Tilt – ±36° Trendelenburg and ±26° lateral tilt capability
• Eight-Wheel Caster System – Smooth mobility and maneuverability for efficient room transitions

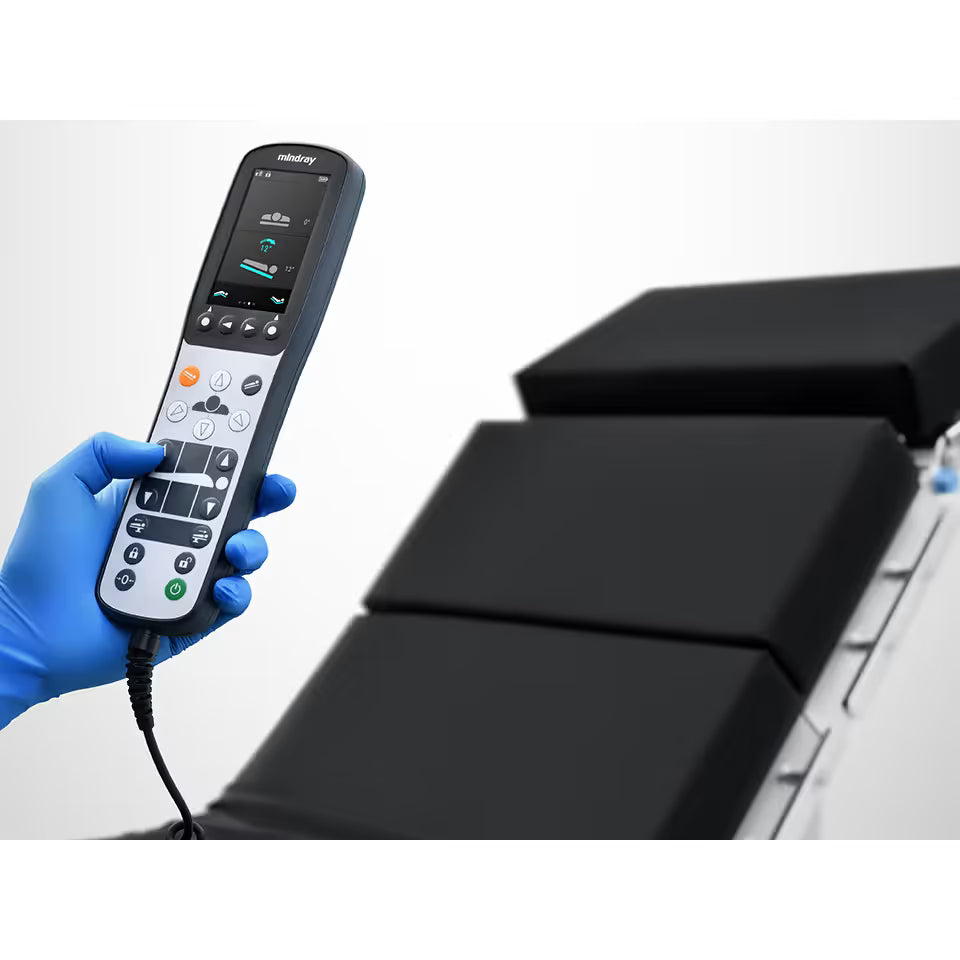

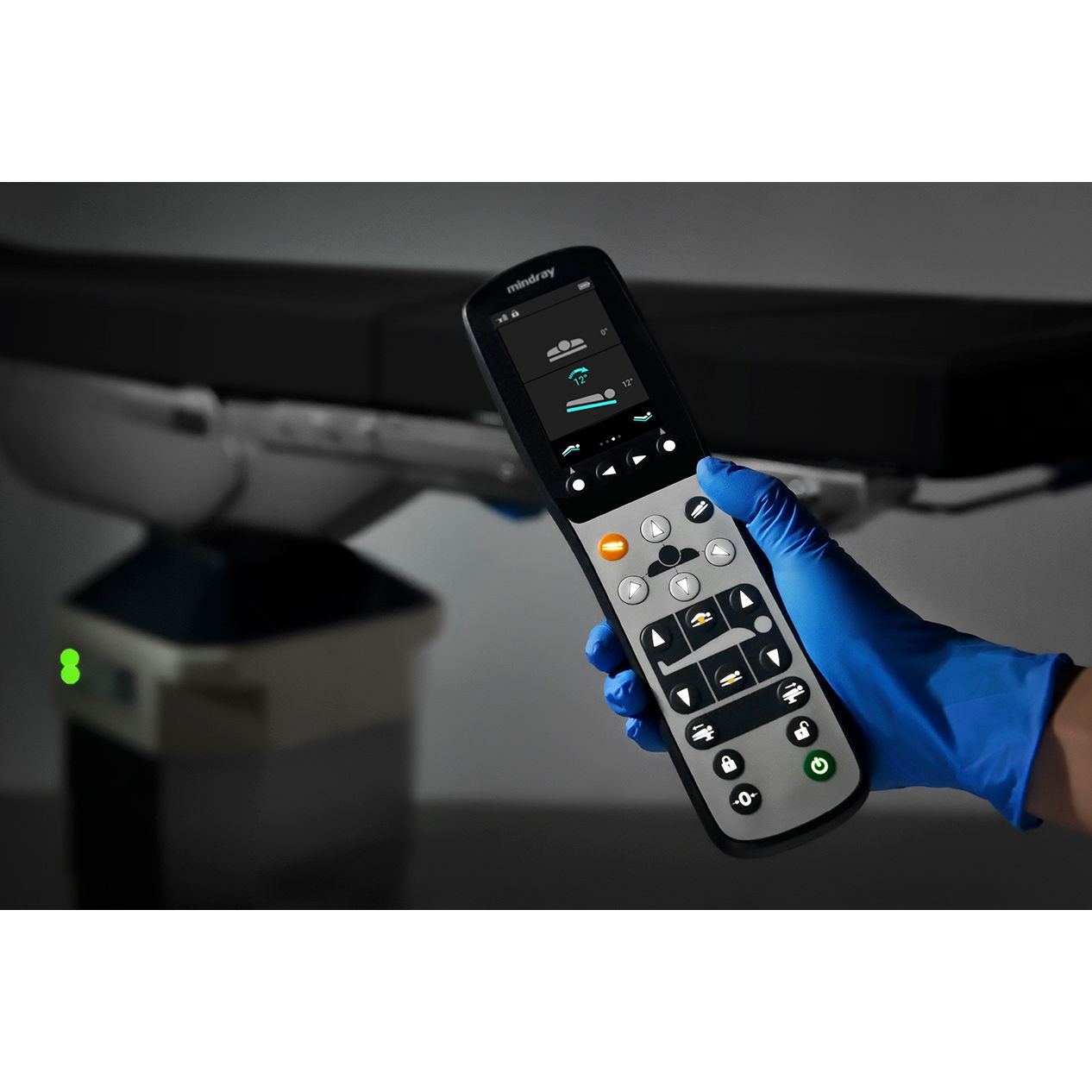

• Illuminated Hand Control – Clear visibility in low-light surgical environments

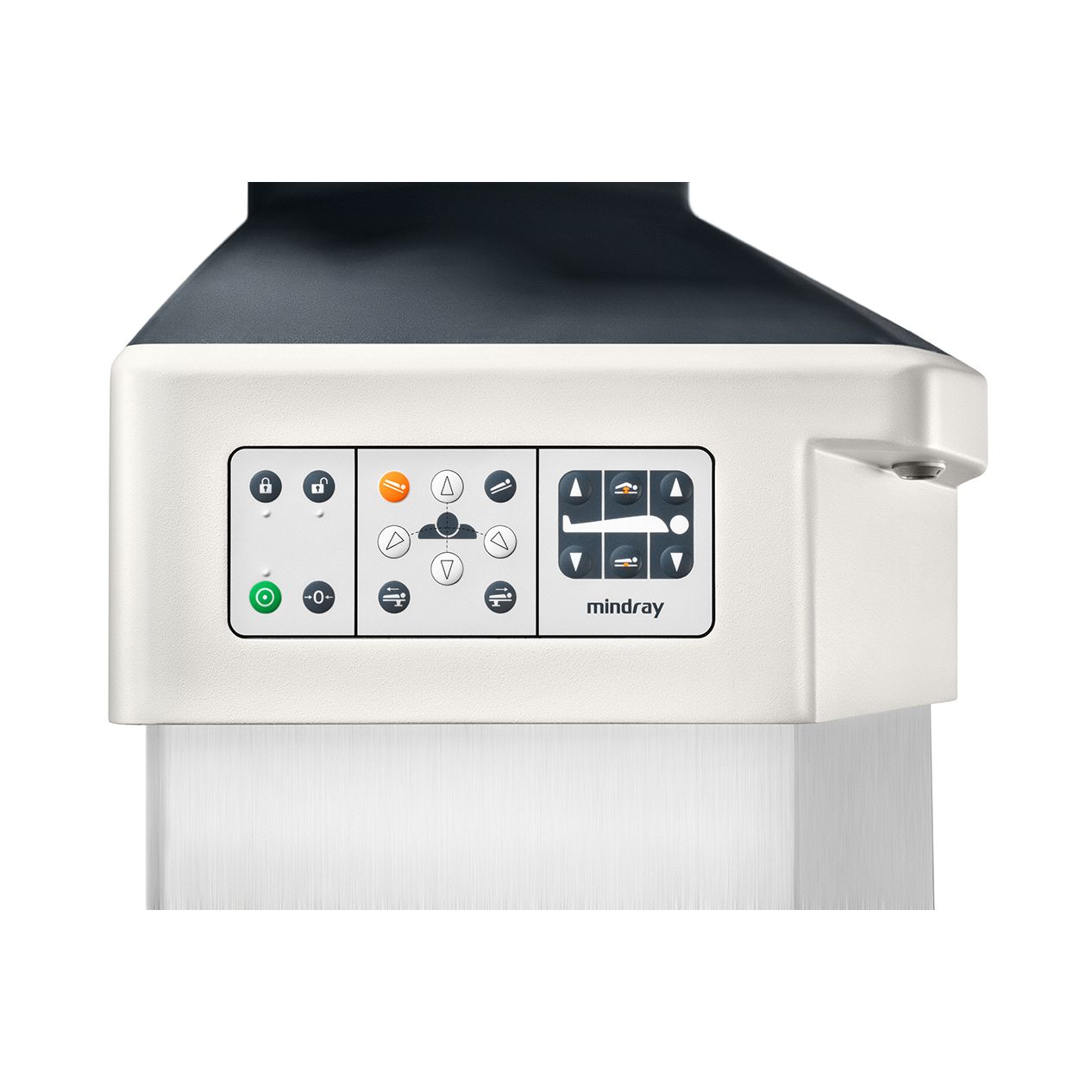

• Override Backup Control Panel – Added reliability in critical situations

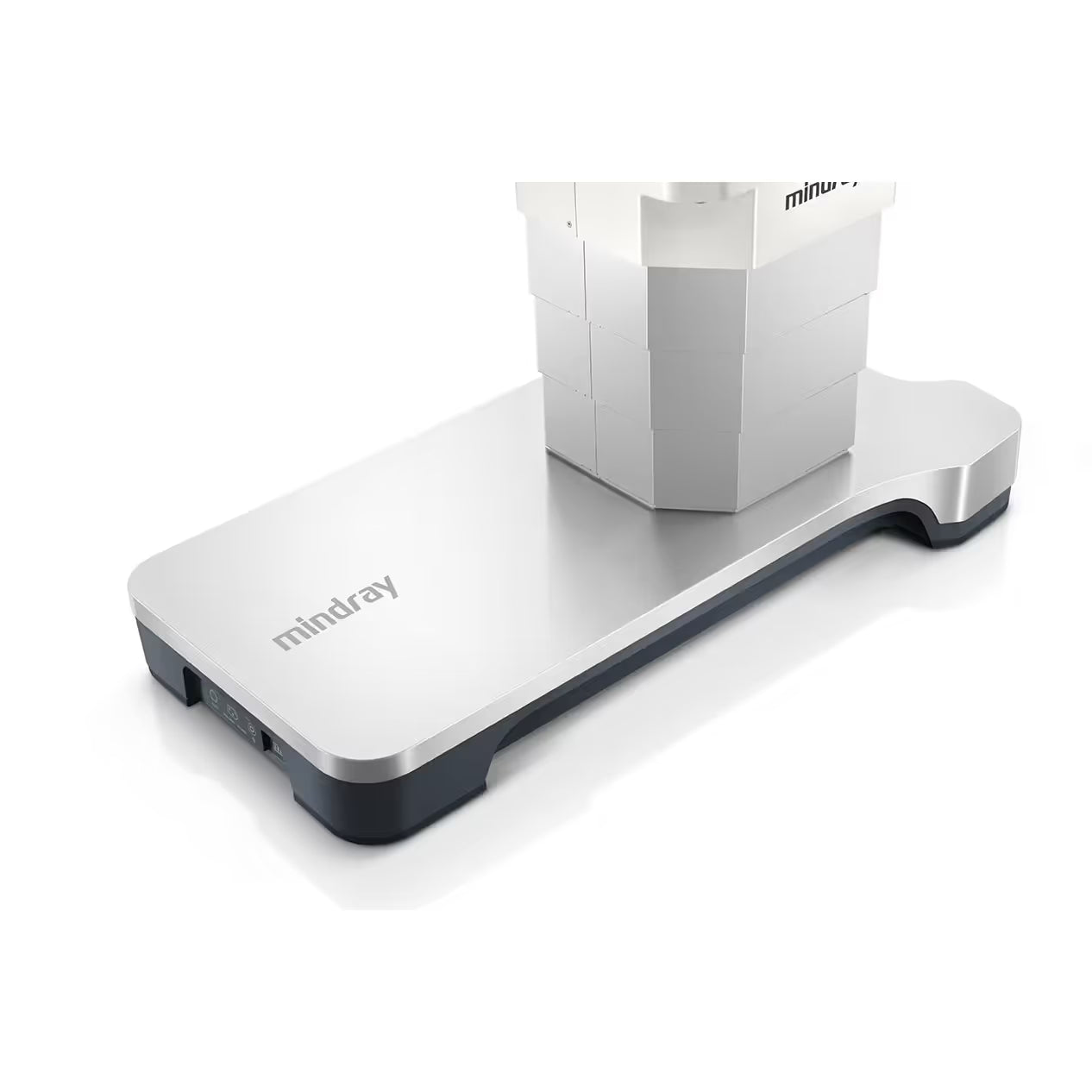

• IPX5 Rated Base – Protection against water jets from any direction

Technical Specifications:

• Lowest Table Height: 600 mm (23.6")
• Highest Table Height: 1,050 mm (41.3")
• Maximum Load Capacity: 460 kg (1,014 lbs)
• Full Slide Capacity: 550 lbs
• Trendelenburg / Reverse Trendelenburg: ±36°
• Lateral Tilt: ±26°
• Optional Radiolucent Carbon Fiber Top
• IPX5 Water Resistance Rating

Contact us for configuration options, accessories, and pricing information.
