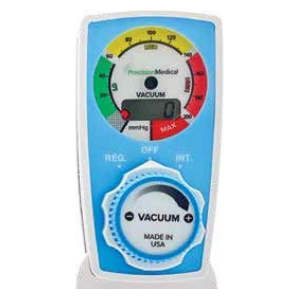

Precision Medical 3300 Series Continuous-Intermittent 3-Mode Digital, PM3300D
Precision Medical 3300 Series Continuous-Intermittent 3-Mode Digital, PM3300D
SKU: SKU: PM3300D
Couldn't load pickup availability
The 3-Mode Continuous & Intermittent model series provides reliable and accurate cycling of the regulator On and Off during the intermittent suctioning. The 3-Mode Continuous & Intermittent series has a peak vacuum limit feature to prevent adjusting the vacuum too high. This series is ideal for sensitive applications where limiting Max vacuum is critically important. The intermittent timing cycle is factory set at approximately 16 seconds on and 8 seconds off.
Features:
- Factory preset timing cycles set at approximately 16 seconds On, 8 seconds Off
- Fully adjustable, 2-to-1 ratio timing cycles
- Modular components are attached to a cast metal back plate, simplifying service
- Available in digital and analog gauges
- Low to high vacuum rates
- Large, easy-to-grip knobs
Length: 3.7 in (9.4 cm)
Width: 2.8 in (7.1 cm)
Height: 5.2 in (13.2 cm)
Weight: 1.1 lbs (.50 kg)
PM3300: 0 – 200 mmHg – Full Vacuum
*PM3300E: 0 – 200 mmHg (0 – 26 kPa)
*Counterclockwise direction
Analog: ± 5% of MAX
Digital Gauge: ± 1% of Full Scale
Analog Gauge: ± 5% of MAX within ref. Indicator
1/8″ NPT Female
REG. (Regulated): provides an adjustable, continuous vacuum level
OFF: No Vacuum
INT. (Intermittent): provides an adjustable vacuum level that cycles between ON and OFF
REG: 50 l/min
INT: 10 l/min
*Maximum flow is obtained with a vacuum source of 21″ Hg (71.1 kPa)
REG. Mode @ Max – min. 100 mmHg above calibrated range
Factory set at sixteen (16) seconds ON and eight (8) seconds OFF (Reference only)
0°F to 122°F (-18°C to 50°C)
55°F to 85°F (13°C to 29°C)
Temperature Range:
-4°F to 140°F (-20°C to 60°C)
Humidity:
Max 95% Non-condensing
Digital Vacuum Gauge Models ONLY
3 Volt Lithium, ½ AA
Manuals
Brochures
LIMITED WARRANTY AND LIMITATION OF LIABILITY
Precision Medical, Inc. warrants that the Medical Vacuum Regulator (the Product) will be free of defects in workmanship and/or material for the following period:
Ten (10) years from date of shipment.
