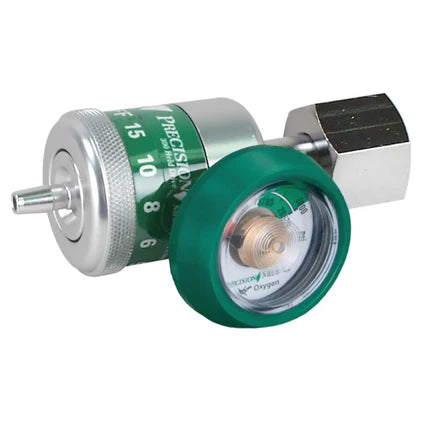

Precision Medical Pediatric Oxygen Flow Regulator, 0-4 LPM, CGA 540, Nut Style, 165404DL
$124.17
Description
EasyDial Reg is the top selling oxygen regulator from Precision Medical. The compact unit is only 4.25″ long and weighs less than 8 oz. Each regulator model comes standard with a large flow adjustment knob that is knurled making flow adjustment simple for patients. EasyDial Reg is designed for safety with a built-in pressure relief valve, as well as a protected contents gauge. The low force Viton yoke seal provides a superior tank-to-regulator seal and has an innovative design that minimizes normal flow variation that occurs as tank pressure drops.
Features
- Reduced vibration for accurate readings
- Regulate the flow of oxygen as needed
- Includes metal ring
- Knurled adjustment knob
- Low force Viton yoke seal provides a better tank-to regulator seal
- Lightweight aluminum body and cap
- Clearly marked flow settings
- Contents gauge on the front and the flow gauge on the top
Caution! U.S. Federal law restricts this device to sale by or on the order of a physician.
Dimensions:
Length: 4.25″
Weight: 7.8 oz
Length: 4.25″
Weight: 7.8 oz
Accuracy:
31 to 125 cc/min
± 10cc0.25 to 25 l/min
± 10% of indicated flow
31 to 125 cc/min
± 10cc0.25 to 25 l/min
± 10% of indicated flow
Inlet Pressure
Range:
300-3000 psi
(20.7-206.8 bar)
Range:
300-3000 psi
(20.7-206.8 bar)
Ignition and
Fault Tolerance:
Meets ASTM G175-03
Fault Tolerance:
Meets ASTM G175-03
*Specifications are subject to change without prior notice.
Manuals
Brochures
Specifications
- Brand: Precision Medical
- Product Type: Oxygen Regulator
- Length: 4.25"
- Flow Range: 0 - 4 L/min
- Settings: OFF, 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1-1/2, 2, 3, and 4
- CGA Connection: Nut Style (540)
- Accuracy: ±10% of indicated setting @ 70°F (21°C)
- Storage Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Inlet Pressure Range: 300 - 3000 psi (2068 - 20684 kPa)
- Ignition and Fault Tolerance: Meets ASTM G175-03
- Color: Green
- Weight: 0.49 lbs
- Warranty: 5-Years
