Description:

UNIQUE, EASY AND SAFE

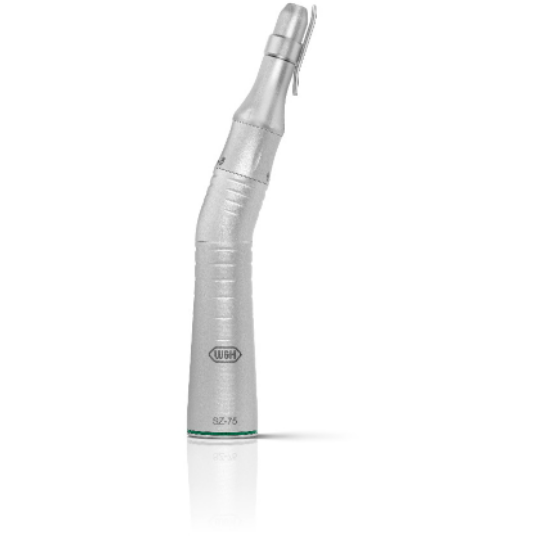

The SZ-75 20:1 Zygoma Angulated Surgical Handpiece facilitates the work of the surgeon for the insertion of Zygoma implants. The angulation is unique and allows a much better view of the treatment site. So the surgical procedure is also possible to difficult accessible positions in the zygomatic bone.

ADVANTAGES

  • Easy access to treatment site - The angle of the handpiece allows optimal access for difficult interventions in the area of the zygomatic bone.
  • High application security - The world‘s only 20:1 handpiece with contra-angle chucking system ensures application security at high concentricity.
  • Fatigue-free working - The ergonomic design of the handpiece ensures long and fatigue-free working.
  • Efficient Cooling - The spray exits near the instrument's area of activity and cools the operating area extremely efficiently.

TECHNICAL DATA

  • Transmission ratio: 20:1
  • Coupling system: ISO 3964 (DIN 13940)
  • External cooling system: single
  • Chucking system: twist chuck system
  • Rotary instruments: Zygoma burs, surgical burs and cutters with contra-angle shank Ø 2,35 mm
  • Maximum drive speed: 50,000 min
  • Can be dismantled: yes
  • Indications, e.g.: Implantation of Zygoma implants, osteotomy

SZ-75 Surgical handpiece 20:1

$2,369.12
-
+

Description:

UNIQUE, EASY AND SAFE

The SZ-75 20:1 Zygoma Angulated Surgical Handpiece facilitates the work of the surgeon for the insertion of Zygoma implants. The angulation is unique and allows a much better view of the treatment site. So the surgical procedure is also possible to difficult accessible positions in the zygomatic bone.

ADVANTAGES

  • Easy access to treatment site - The angle of the handpiece allows optimal access for difficult interventions in the area of the zygomatic bone.
  • High application security - The world‘s only 20:1 handpiece with contra-angle chucking system ensures application security at high concentricity.
  • Fatigue-free working - The ergonomic design of the handpiece ensures long and fatigue-free working.
  • Efficient Cooling - The spray exits near the instrument's area of activity and cools the operating area extremely efficiently.

TECHNICAL DATA

  • Transmission ratio: 20:1
  • Coupling system: ISO 3964 (DIN 13940)
  • External cooling system: single
  • Chucking system: twist chuck system
  • Rotary instruments: Zygoma burs, surgical burs and cutters with contra-angle shank Ø 2,35 mm
  • Maximum drive speed: 50,000 min
  • Can be dismantled: yes
  • Indications, e.g.: Implantation of Zygoma implants, osteotomy
