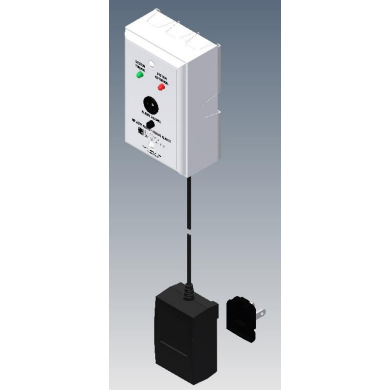

Tri-Tech Single Gas Remote Audio/Visual Alarm, TAV-1

Description

Tri-Tech Single Gas Remote Audio/Visual Alarm, TAV-1

Features - Benefits:

• Five year parts and one year labor limited warranty
• High intensity LED Lights
• Loud audible alarm buzzer rated at 85 DBA @ 10cm = 4”
• Panel is back mounted
• Durable metal case
• Solid state components
• Plugs into most electrical outlets*

*Six different interchangeable plug configurations are provided to adapt the transformer to a variety of
International plug patterns.

Specifications:

• Remote Audio/Visual Alarm is specially designed to provide warning of cylinder depletion for a one gas manifold system.
• The visual portion of the alarm will change from a “green” indicator for system normal operation to a “red” indicator for system abnormal.
• Once the system is re-pressurized, the indicator lights will return to the normal “green” position. When the cylinders are depleted, the alarm buzzer will automatically sound. A reset button conveniently located on the front of the unit
  will deactivate the alarm buzzer.
• The TAV-1 alarm may be used in conjunction with a pressure switch or with a set of dry contact alarm signal points.
• The alarm is supplied with a transformer (100-240 VAC x 5 VDC) that plugs into an electrical outlet and a 4 1/2 foot cord that goes from the transformer to the alarm. Ideal for industrial, medical and specialty gas use.

Dimensions: 4 5/8” H x 3” W x 1 7/8” D
