Description:
Fully automated autoclaves that free up your time to treat your patients.

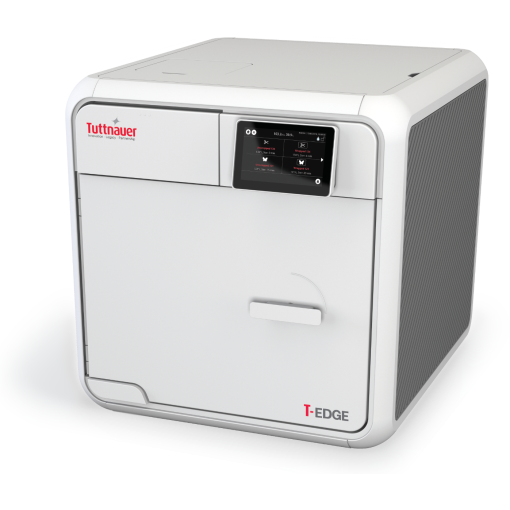

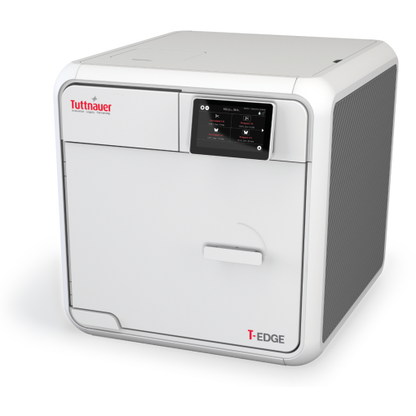

The T-Edge 10 and T-Edge 11 autoclaves will operate without interruption on a daily basis, offering efficiency and safety.
Eco-friendly
Low water consumption per cycle and lower electricity costs
Optimal chamber capacity
Designed to use more than 75% of the chamber capacity, with 5 extra-long trays
Compact & elegant
Designed for a 60 cm shelf depth. Comfortably fits in small spaces
Accessible & ergonomic
Convenient and easy loading with door opening to 110º. Assorted water filling and drainage: top, front or automatic
Easy operation
User-friendly touchpad and control panel
Excellent serviceability
Sophisticated operating system that allows fast detection of faults. Each part can be easily removed and repaired/replaced separately
Technical Specifications
Chamber Dim. ø x L (mm)
T-Edge10: 250 x 460
T-Edge11: 280 x 460
T-Edge11: 280 x 460
Chamber Volume
T-Edge10: 23 liters
T-Edge11: 27 liters
T-Edge11: 27 liters
Dimensions W x H x D (mm)
T-Edge10: 480 x 500 x 580 mm
T-Edge11: 500 x 500 x 580 mm
T-Edge11: 500 x 500 x 580 mm
Tray Dimensions (W x H x D)
T-Edge10: 421 x 189 x 20.5 mm
T-Edge11: 421 x 207 x 20.5 mm
T-Edge11: 421 x 207 x 20.5 mm
Weight
T-Edge10: 53 kg
T-Edge11: 56 kg
T-Edge11: 56 kg
Power Supply
T-Edge10: 50/60Hz, 230V-1Ph+N+GND
T-Edge11: 50/60Hz, 230V-1Ph+N+GND
T-Edge11: 50/60Hz, 230V-1Ph+N+GND
Number of Trays
T-Edge10: 5
T-Edge11: 5
T-Edge11: 5
Connections
Both models: 1 Ethernet port, 2 USB ports, WIFI, integrated automatic water filling and drain connection
Tuttnauer T-Edge 10B 110v
$9,445.45 $6,493.75 Sale
