Mindray VETA 3X Anesthesia machine Fixed mount

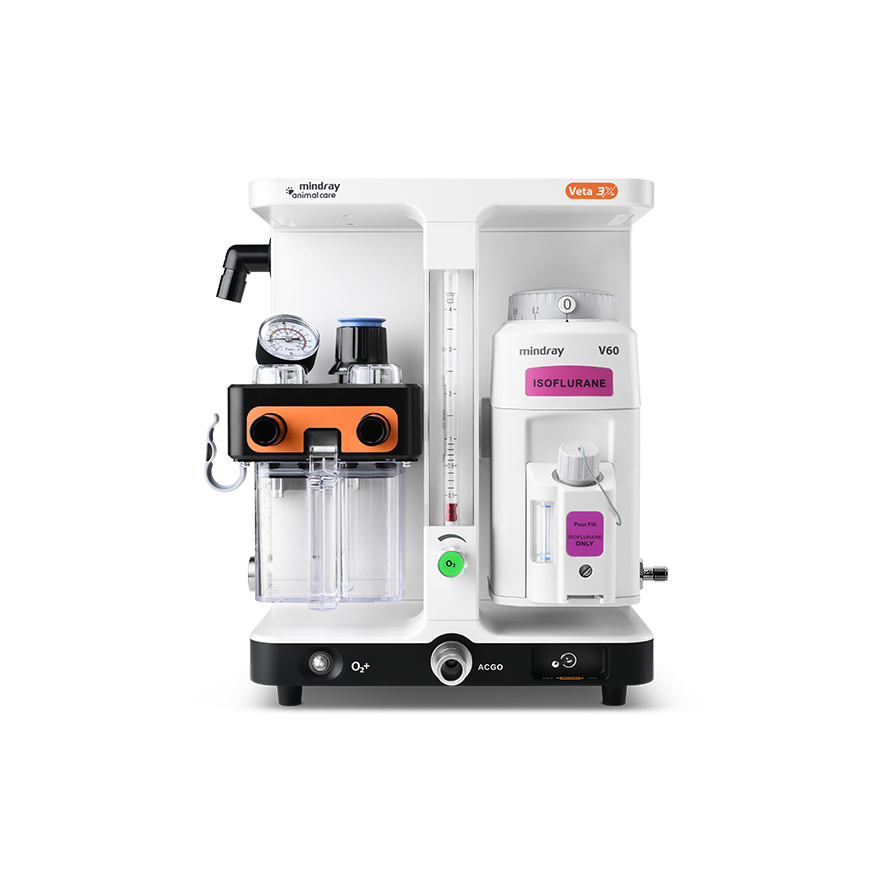

Mindray Veta 3X Veterinary Anesthesia Machine

The Veta 3X is engineered for modern veterinary workflows, delivering precise control, robust safety, and day-to-day reliability in a compact, lightweight form. Its durable build and intuitive interface make it a great fit for hospitals, mobile clinics, and emergency transport. Choose tabletop, wall-mount, or trolley configurations to match your space and case mix.

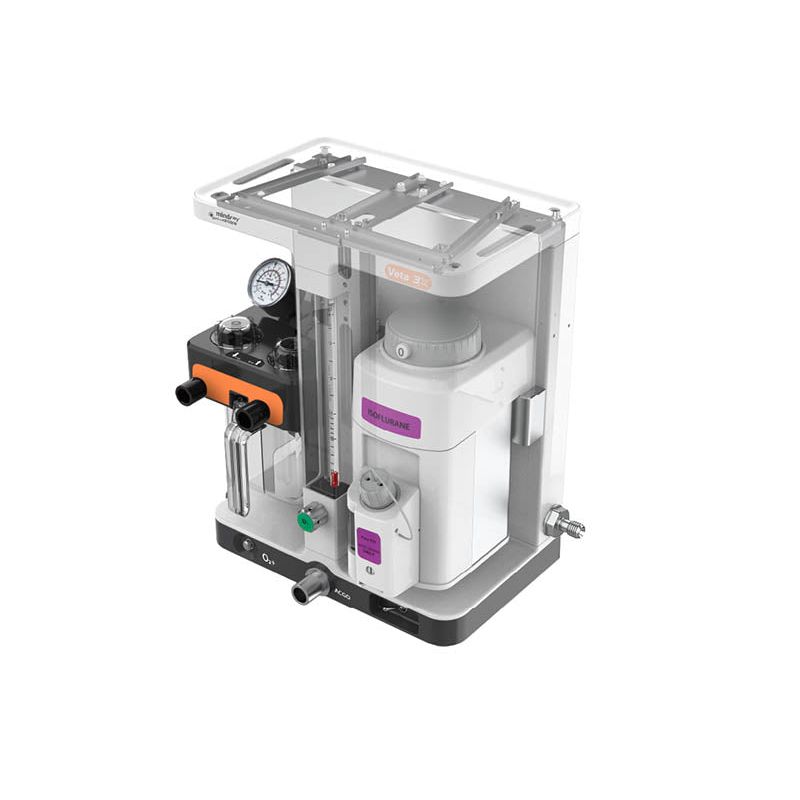

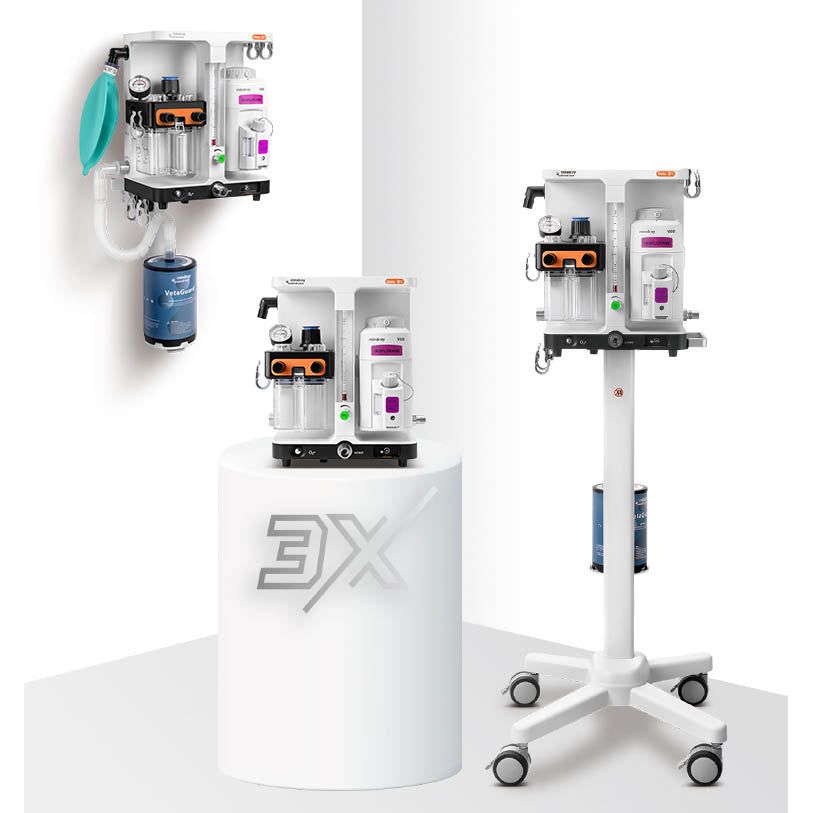

• Flexible setups: wall mount, mobile trolley, or tabletop

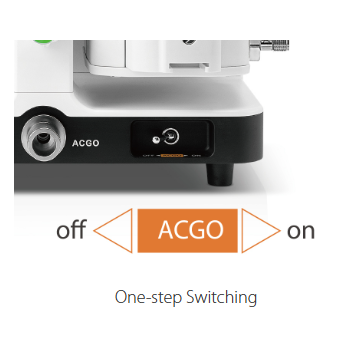

• ACGO switch: quick changeover between rebreathing and non-rebreathing circuits

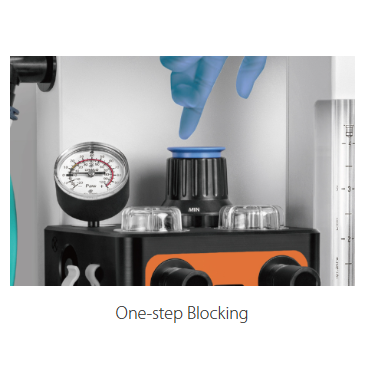

• Adjustable APL valve: one-finger push occlusion for leak checks

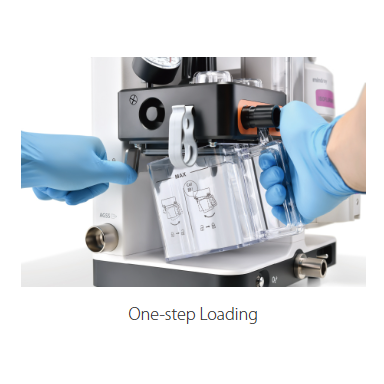

• Tool-free CO₂ canister: one-click, “twist-free” absorbent replacement
• Included vaporizer: V60 (Tec 7 class) vaporizer
• Hands-free testing: front knob for easy leak-test operation
• Cable management: concealed routing keeps lines tidy and reduces trip hazards
• Optional VetaBain: optimized for non-rebreathing, ideal for small animal cases
• Optional accessories: IV pole, monitor mount, Bains block, O₂ concentrator tray, dual E-tank holder, mobile trolley, wall-mount kit

Dimensions & Weight

• Main Unit (Tabletop): ≤ 44.09 lb (≤ 20 kg) standard; ≤ 55.12 lb (≤ 25 kg) max; 15.75 in H × 15.75 in W × 11.81 in D (400 × 400 × 300 mm)
• Main Unit (Basic Trolley): ≤ 50.71 lb (≤ 23 kg) standard; ≤ 70.55 lb (≤ 32 kg) max; 51.18 in H × 18.11 in W × 20.08 in D (1300 × 460 × 510 mm)
• Main Unit (High-Config Trolley): ≤ 66.14 lb (≤ 30 kg) standard; ≤ 88.18 lb (≤ 40 kg) max; 51.18 in H × 21.65 in W × 27.56 in D (1300 × 550 × 700 mm)
• Top Shelf: 12.20 × 8.27 in (310 × 210 mm); 11.02 lb (5 kg) limit

Gas & Flow

• Pipeline supply: Oxygen; 280–600 kPa (40–87 PSI); NIST or DISS; one inlet
• O₂ flush: 15–25 L/min (at ~280 kPa supply)
• Flowmeter: single tube, 0–4 L/min
• ACGO: mechanical switch for common gas outlet

Breathing Connections

• Manual bag port: 22 mm OD / 15 mm ID (0.87 in / 0.59 in conical)
• Inhalation: 22 mm OD / 15 mm ID
• Exhalation: 22 mm OD / 15 mm ID
• Scavenging port: 30 mm OD (1.18 in conical)

CO₂ Absorbent & Pressure

• Absorbent volume: 800 mL ± 100 mL

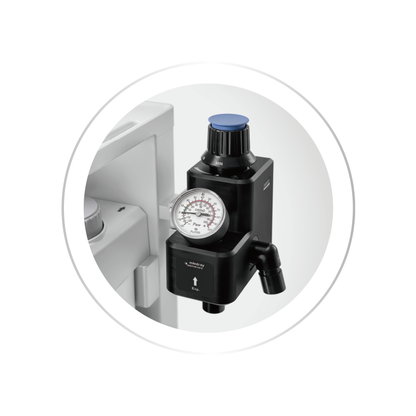

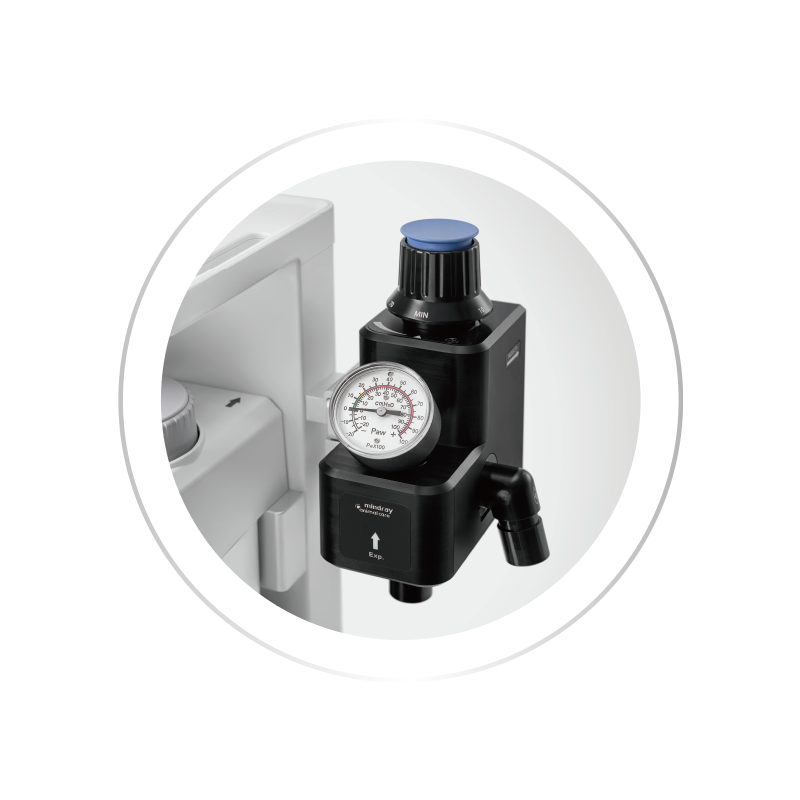

• APL valve: 0–70 cmH₂O; blocking pressure = set value + 30 cmH₂O
• Airway gauge: mechanical, −20 to 100 cmH₂O

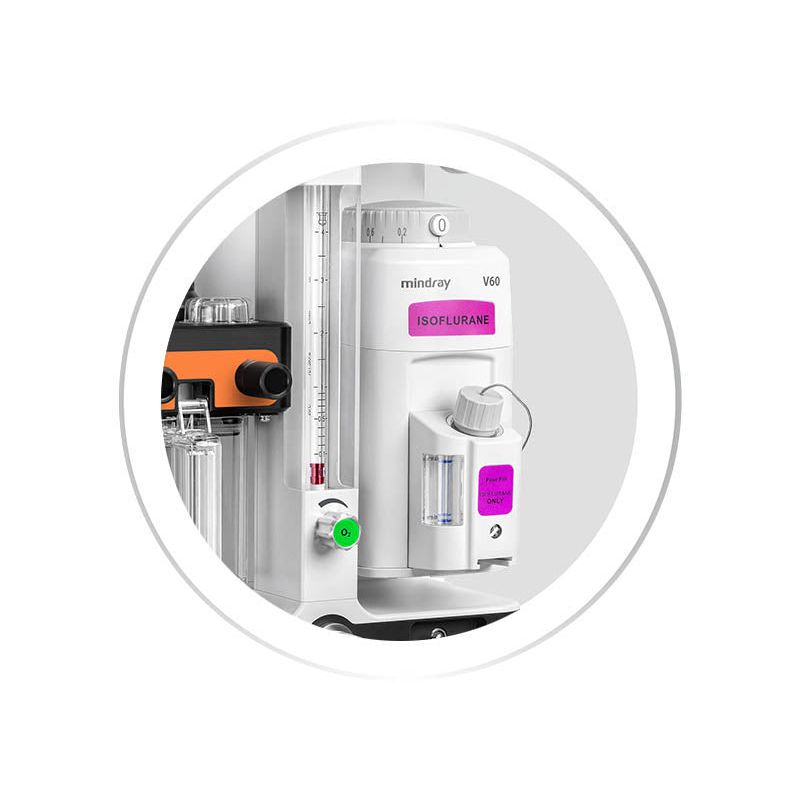

Vaporizer (V60)

• Fill methods: Isoflurane (pour fill, key fill); Sevoflurane (pour fill, key fill, Quik-Fil)
• Weight: 13.23 lb (6.0 kg) empty; 14.33 lb (6.5 kg) full
• Fill volume: 360 mL (dry wick); 300 mL (moist wick); 260 mL (between min & max)
• Concentration ranges: Iso 0–6 vol.% ; Sevo 0–8 vol.%
• Accuracy: ±0.25 vol.% or ±20% of set (whichever is greater)

AGSS (Scavenging)

• Active AGSS size: 16.93 × 5.20 × 4.72 in (430 × 132 × 120 mm)
• Pump rate: 25–50 L/min (Low-flow); 75–105 L/min (High-flow)
• Passive AGSS: 30 mm OD (1.18 in conical) connector

Anesthesia Gas Filter Canister Tray

• Canister size: ≤ 5.12 in (≤ 130 mm) diameter
• Weight limit: 4.41 lb (2 kg)

Environmental

• Operation: 10–40 °C; 15–95% RH (non-condensing); 70–106.7 kPa
• Storage: −20–60 °C; 10–95% RH (non-condensing); 50–106.7 kPa
