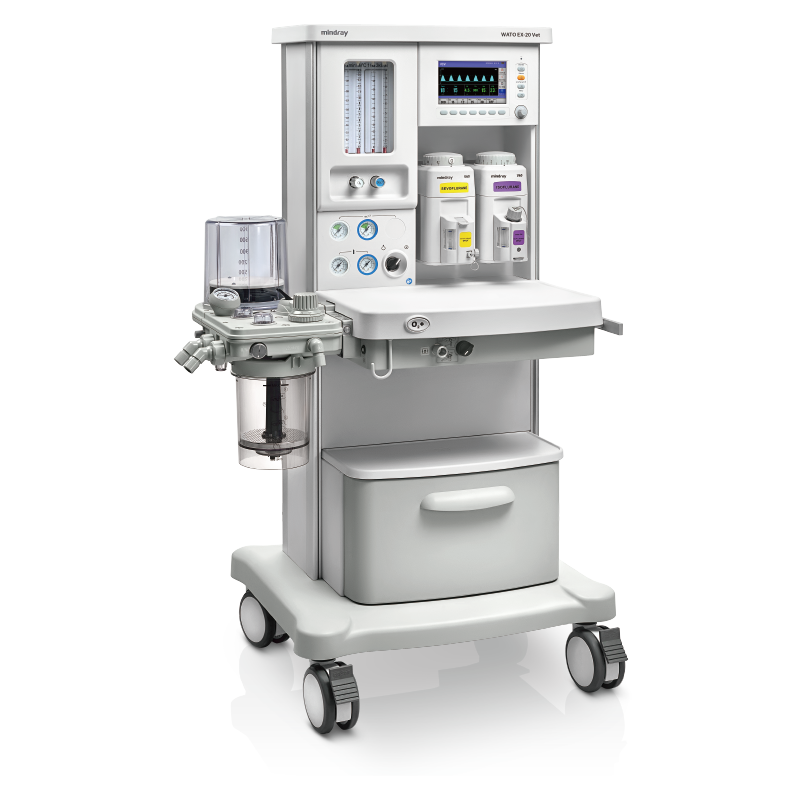

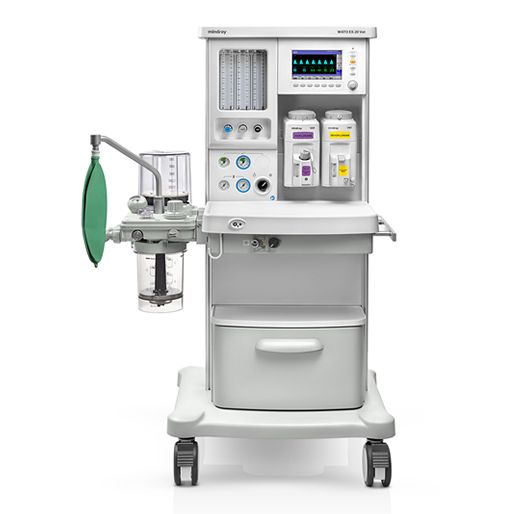

Mindray WATO EX-20 Vet Anesthesia Machine, 0685E-PA00001

WATO EX-20Vet is built for demanding veterinary environments. It’s engineered to provide safe, precise inhalation anesthesia for animal patients.

Automatic

Unlike most pneumatic-controlled ventilators on the veterinary market, the WATO EX-20Vet uses an electronically controlled ventilator. This gives clinicians finer control over gas delivery and access to ventilation modes that better match the patient’s clinical needs.

Simple

The highly praised WATO interface keeps clinically significant settings and functions easy to reach — no getting lost in deep menus. It also performs automatic leak testing to keep pre-op workflow moving.

Precise

Pressure control ventilation on WATO EX-20Vet is electronically managed and highly precise, capable of delivering tidal volumes as low as 5 mL. An auxiliary common gas outlet (ACGO) is available for non-rebreathing circuits.

* Only supporting animals under 200 pounds.

• 7.0" color touch screen with pressure and flow waveform display.
• Traditional pneumatic flow tubes, supporting up to two fresh gas supplies: O₂ and Air.
• Electronically controlled ventilator delivers tidal volumes as low as 5 mL.
• Vaporizer support: single vaporizer; compatible with Mindray V60 and other Selectatec-mount vaporizers.
• Fully integrated breathing circuit enables quick switching between automatic and manual ventilation, helping prevent waste-gas leakage to the immediate environment.
• Ergonomic design with a large work surface and a full-size drawer for added storage.

• User interface: 7.0" color touchscreen; waveform display for pressure & flow.
• Fresh gas: O₂ and Air via pneumatic flow tubes.
• Ventilation: Electronically controlled; pressure-control mode with tidal volumes down to 5 mL.
• ACGO: Auxiliary common gas outlet available for non-rebreathing circuits.
• Vaporizers: Single position; compatible with Mindray V60 and Selectatec-mount options (various brands).
• Leak test: Automatic leak testing to streamline pre-operative workflow.
• Construction: Integrated breathing circuit; quick auto/manual ventilation switching.
• Form factor: Large working surface; one large drawer for storage.
• Patient range: Animals up to 200 lb (≈90.7 kg).

Package Includes

• O₂ supply
• 7.0" color screen
• Ventilator
• VCV + PCV ventilation modes
• Tidal volume setting: 20–1500 mL
• Glass flowmeters with hypoxic guard
• 1 vaporizer position
• Work surface
• 1 drawer
• 1 battery (90 min backup)
• Pipeline pressure gauges
• User manual
• Quick user guide
• Packing material
