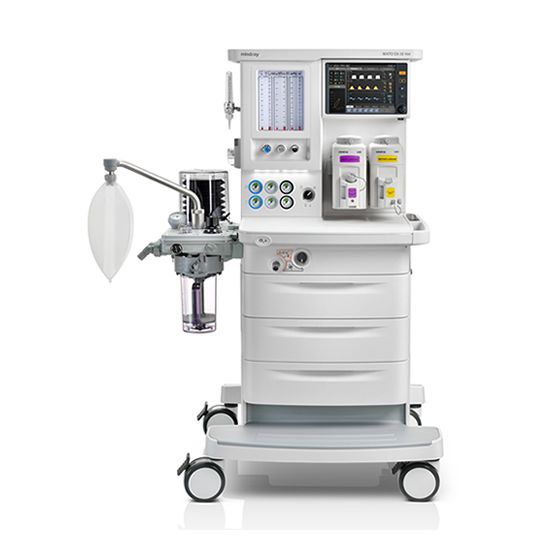

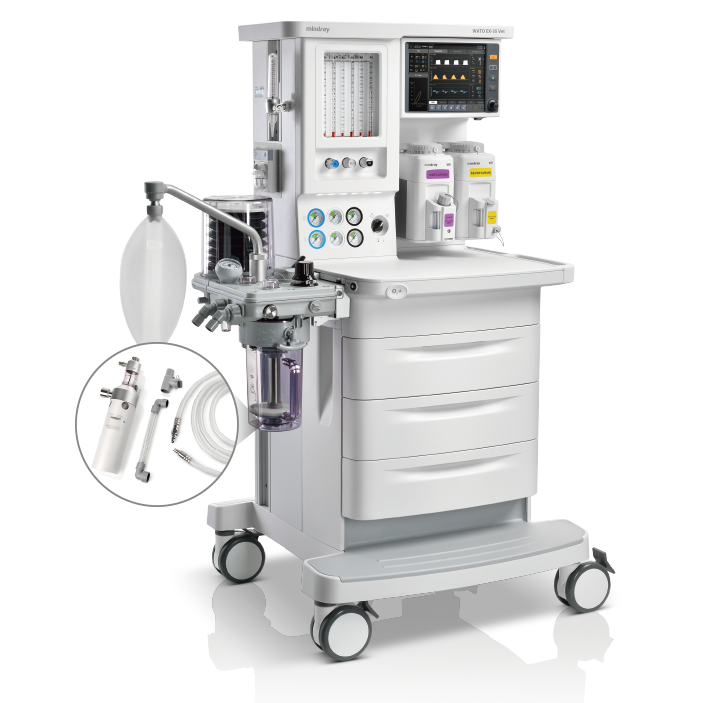

WATO EX-35 Vet Anesthesia Machine, Includes Module Rack, 0686E-PA00002

WATO EX-35Vet is designed for safe and effective veterinary inhalation anesthesia, offering advanced safety, precision, and usability.

Enhanced Safety

Employing the latest technologies, the WATO EX-35Vet supports an extensive range of features and functions, ensuring anesthetic procedures are delivered safely, efficiently, and effectively.

Precise Veterinary Ventilator

Offers a full range of controlled and supportive ventilation modes. With dynamic tidal volume compensation, volumes can go as low as 5 mL. The intelligent PCV-VG mode* combines the benefits of pressure-controlled ventilation with the volume guarantee of volume-controlled ventilation, reducing risk of lung injury.

Extensive Physiological Monitoring

Important ventilation parameters are displayed prominently, with up to 3 simultaneous waveform displays. Parameters include airway pressure, tidal volume, respiratory rate, and minute volume. Plug-and-play CO₂ or anesthetic agent modules* can monitor patient respiration, soda lime consumption, and anesthetic gas concentration. Supports 3 spirometry loops*: Flow-Volume, Pressure-Volume, and Pressure-Flow.

Stable Anesthetic Delivery

The V60 Vaporizer uses automatic flow-temperature-pressure compensation for accurate, constant delivery under any conditions.

• FDA & CE approved
• Calibration-free design
• Strict quality testing to human medical standards

Better Usability

Ergonomically designed for prolonged use with reduced fatigue. Position with ease, streamline workflow, and operate efficiently.

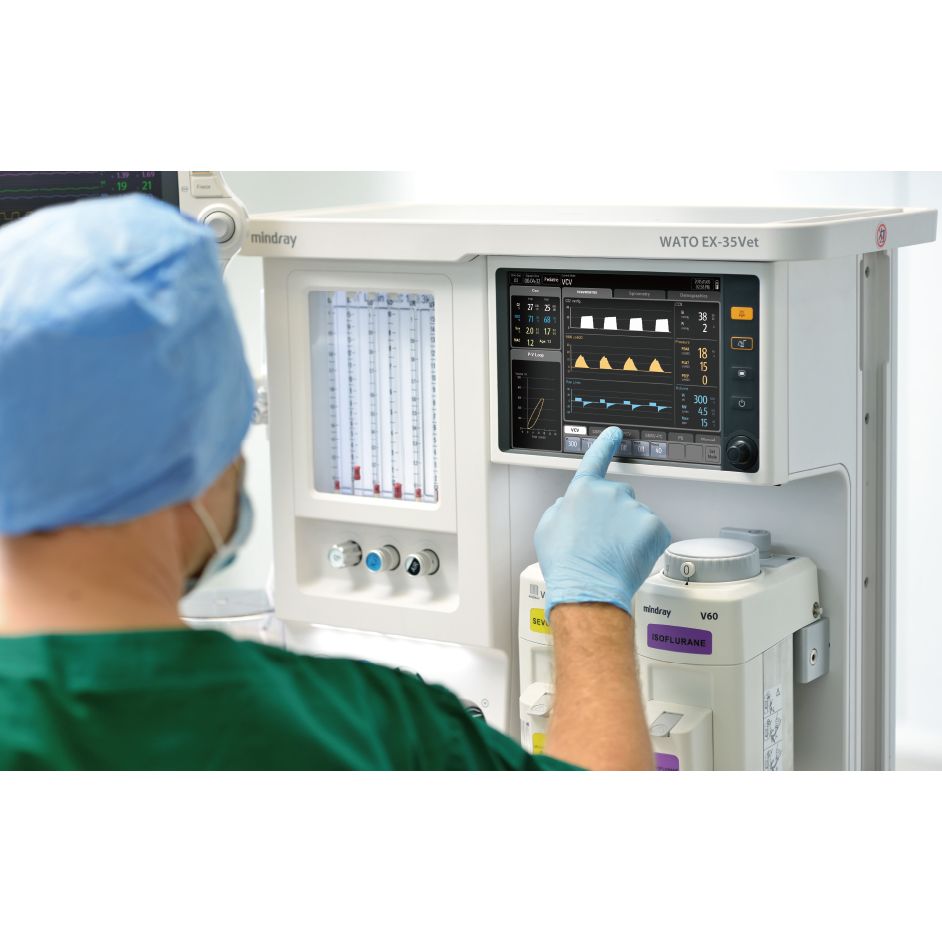

Easier Settings with Touch-screen

• 10.4" high-resolution color touchscreen
• Common operations in fewer than 3 steps

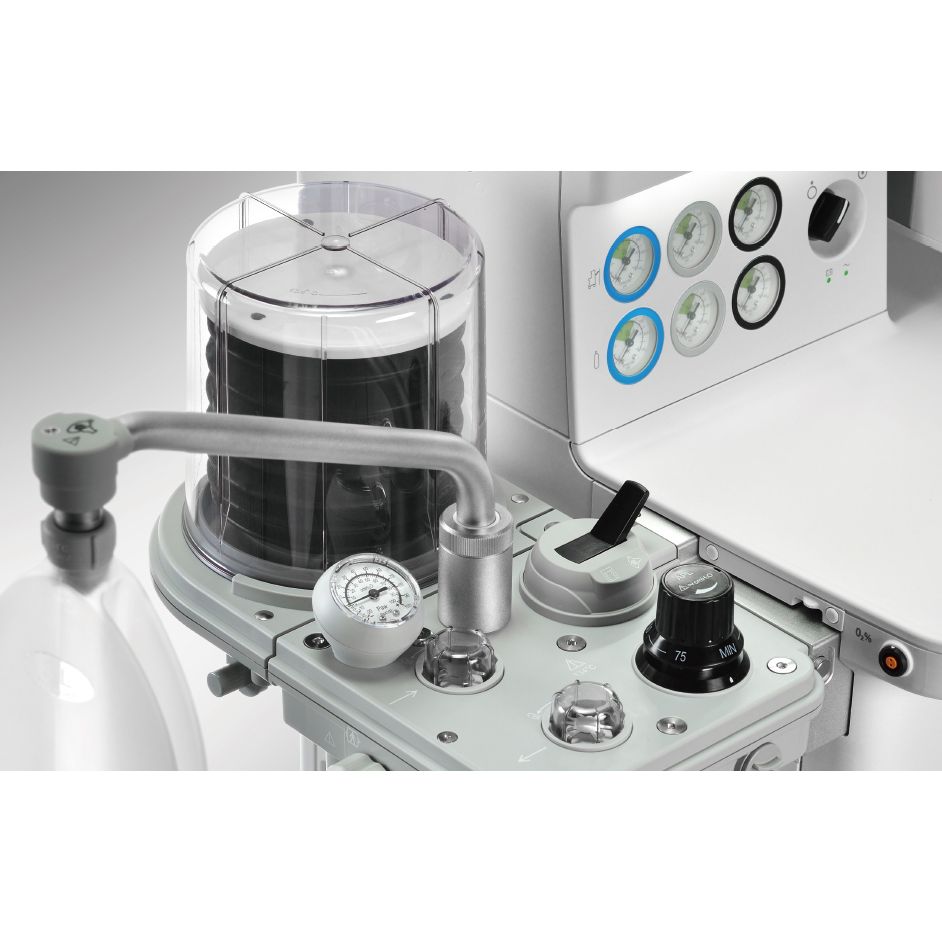

Integrated Breathing System

• Switch quickly between manual and mechanical ventilation
• Switch between rebreathing and non-rebreathing circuits
• Transparent soda lime canister, easy to observe and disassemble
• Heated module reduces condensation effects and delivers warmer gas

Automatic Leak Testing

• On-screen graphic and written instructions with troubleshooting
• Automatic calculation of compensation flow rate

Gas Scavenging Solution

Optional passive or active scavenging solutions help reduce waste gases in the environment, keeping staff safe.

* Optional configuration
* Only supporting animals under 200 pounds.

• 10.4" high-resolution color touchscreen
• Ventilator with VCV & PCV modes, plus PCV-VG*
• Tidal volume as low as 5 mL; settings up to 1500 mL
• Dynamic tidal volume compensation
• Up to 3 simultaneous waveform displays
• Supports Flow-Volume, Pressure-Volume, and Pressure-Flow loops*
• Glass flowmeters with hypoxic guard
• 2 vaporizer positions; compatible with V60 vaporizers
• Integrated breathing system with quick switching between manual/mechanical and rebreathing/non-rebreathing
• Transparent soda lime canister for easy monitoring
• Heated module reduces condensation and provides warmer gas
• Automatic leak testing with on-screen guidance
• Optional passive/active gas scavenging solution
• Ergonomic design with work surface and lockable drawers
• FDA & CE approved; calibration-free design

Package Includes

• Includes Module Rack
• O₂ & Air supply
• 10.4" color touchscreen
• Ventilator
• VCV & PCV ventilation modes
• Tidal volume setting: 20–1500 mL
• Glass flowmeters with hypoxic guard
• 2 vaporizer positions
• Work surface
• 3 lockable drawers
• 1 battery (90 min backup)
• Pipeline pressure gauges
• User manual
• Quick user guide
• Packing material
