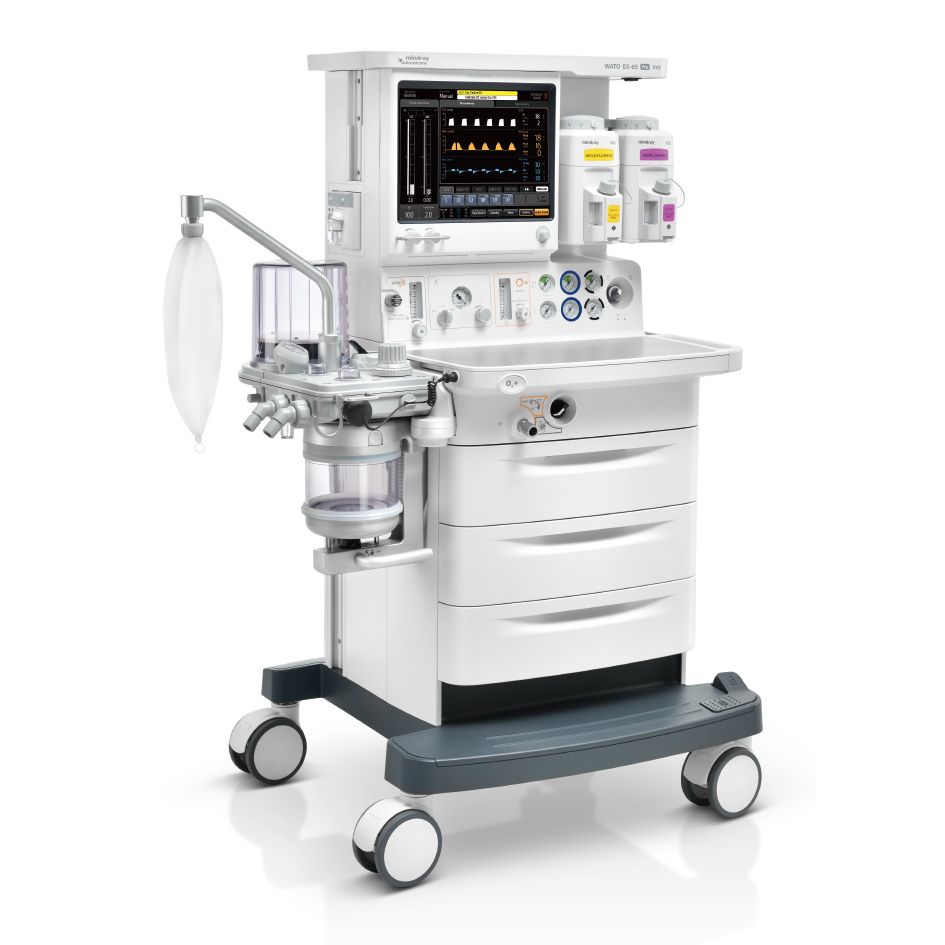

Mindray WATO EX65 Pro Vet Standard Anesthesia Machine – O₂, Air & N₂O + Lung Recruitment

WATO EX-65 Pro Vet is a high-performance anesthesia system built specifically for veterinary use, offering advanced monitoring, precise ventilation, and integrated IT solutions to improve clinical efficiency.

Enhanced Performance

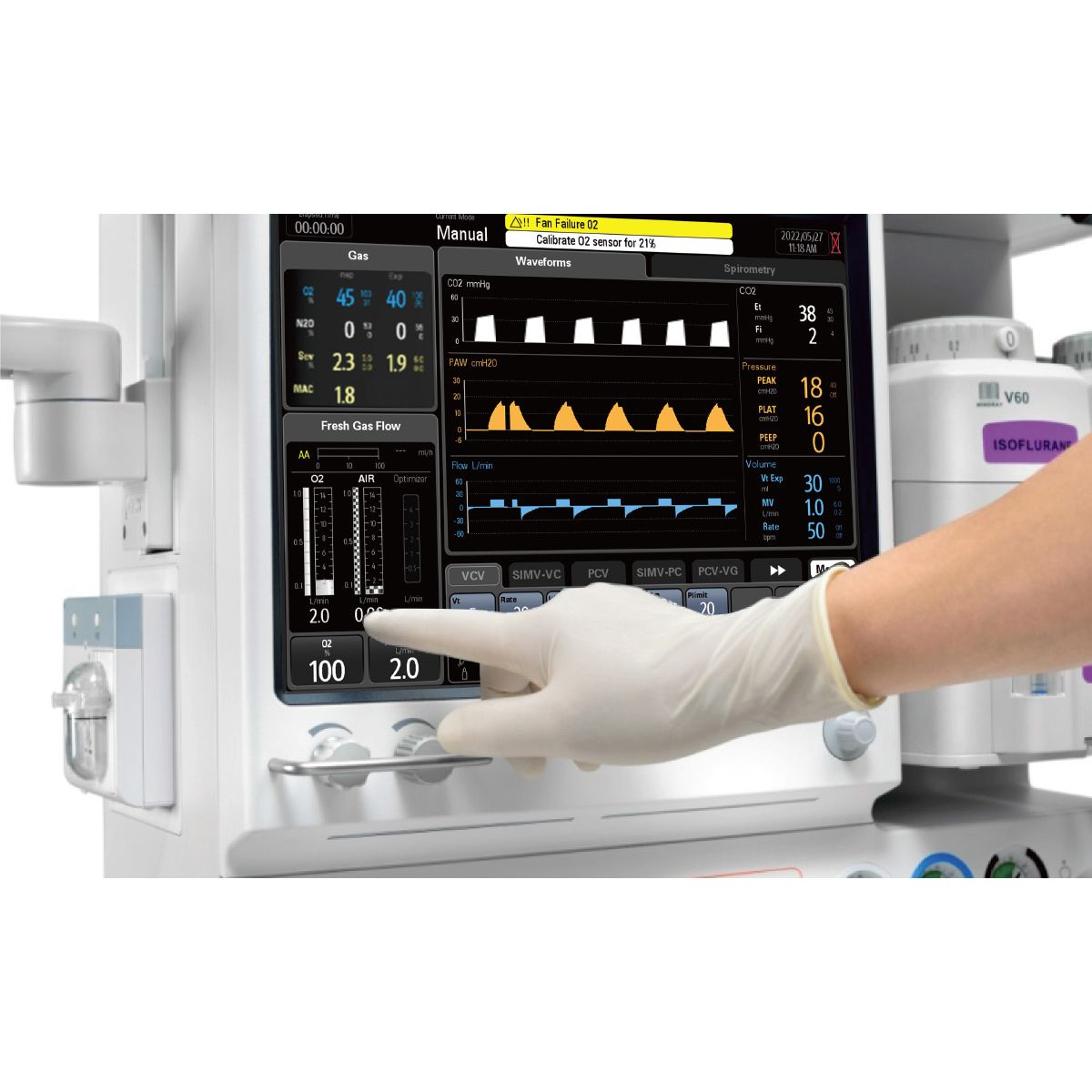

With a 15-inch high-resolution capacitive touchscreen, parameters are clearly displayed and easily adjustable. The intuitive layout and flat menu structure allow ventilation modes to be set in just two steps.

Precise Electronic Flow Meters

The digital gas mixer makes fresh gas settings more accurate and easier to use. Virtual high- and low-flowmeters are displayed separately to better represent low flow rates. Users can choose between total flow control or direct flow control.

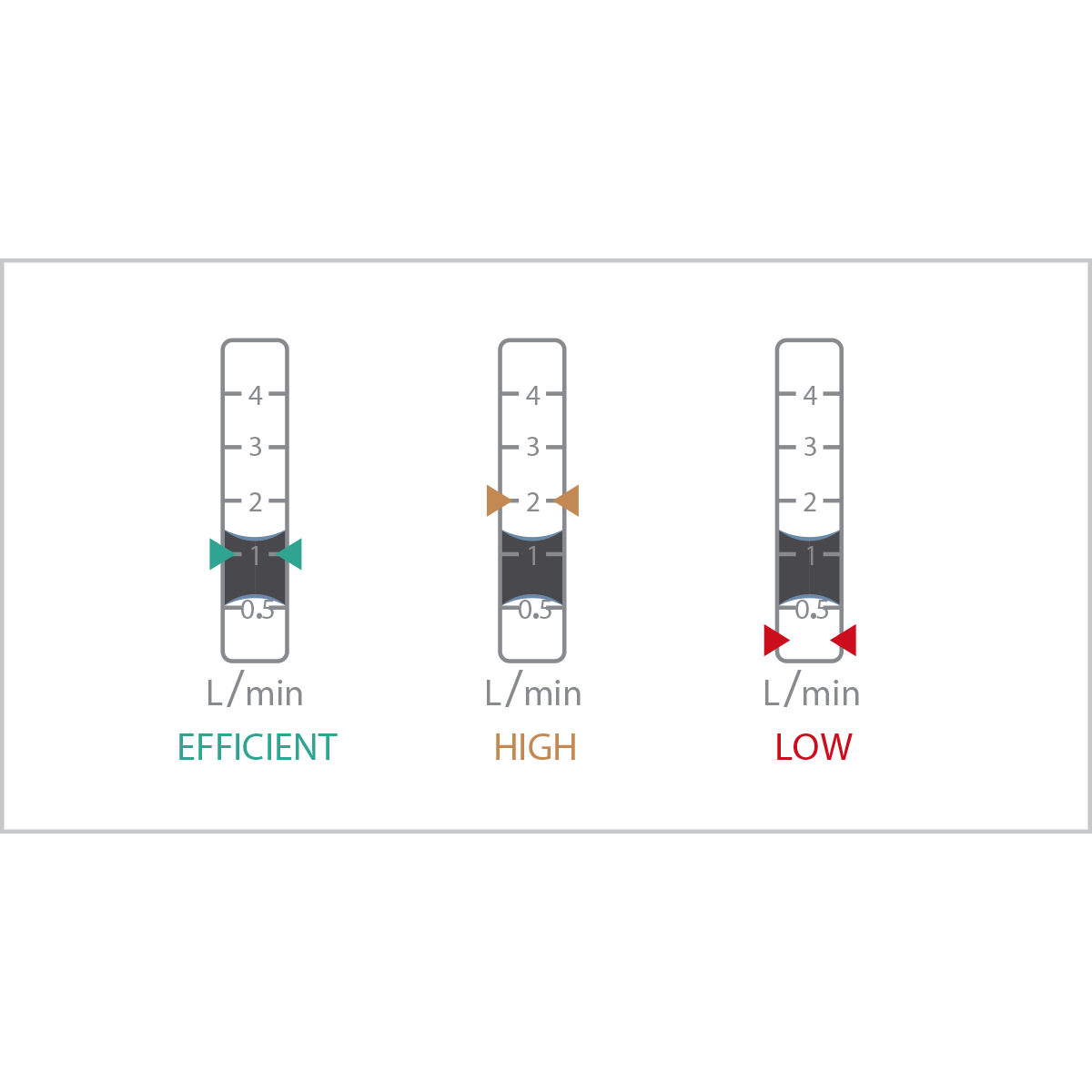

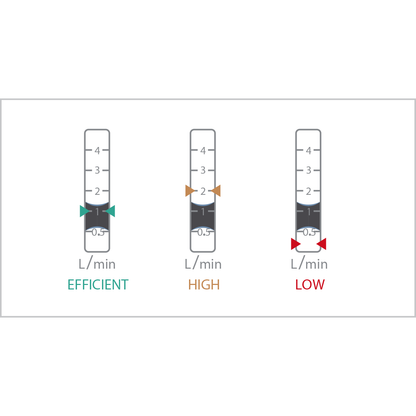

Optimizer: Calculates minimum O₂ requirements and recommends flow rates to reduce anesthetic agent consumption and environmental pollution.

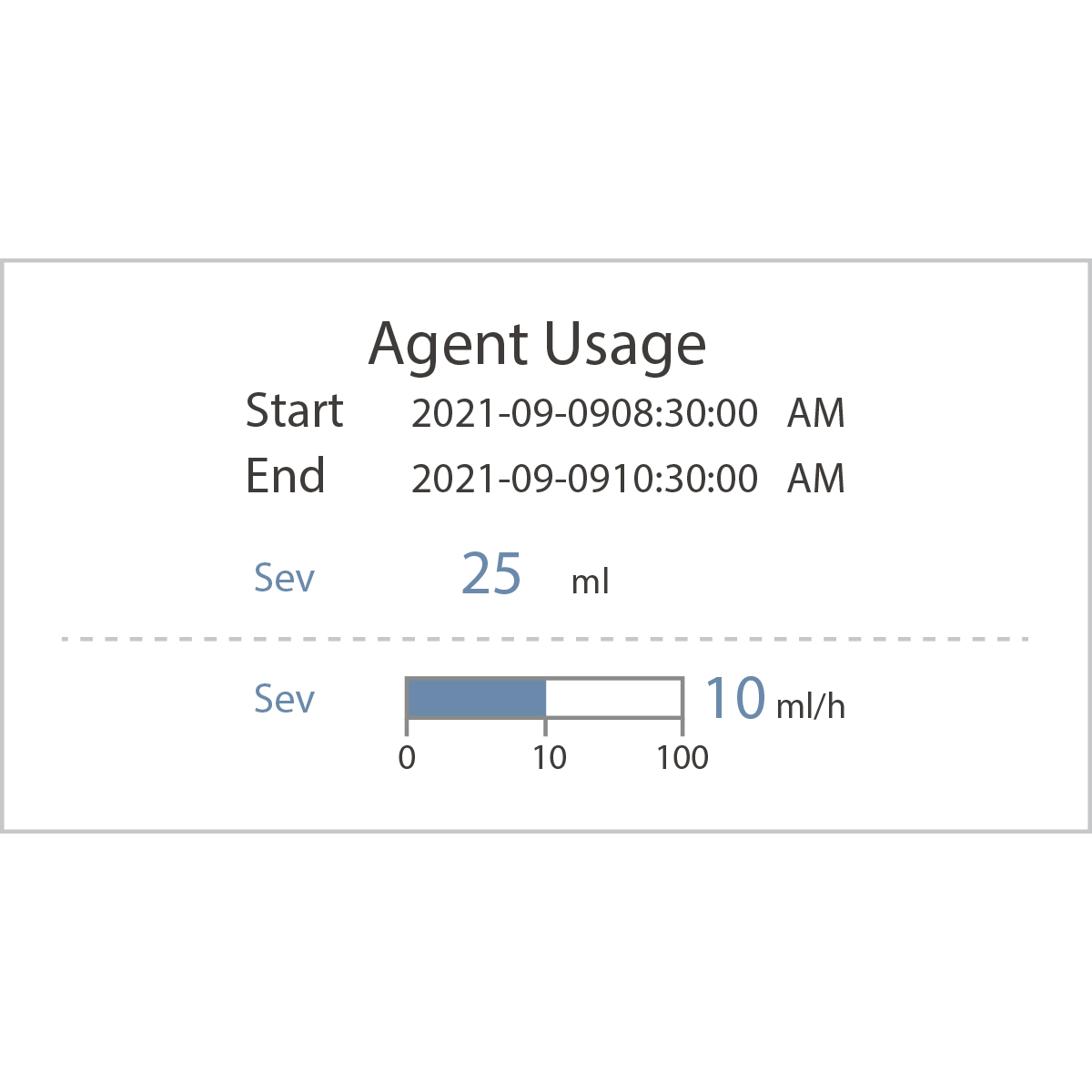

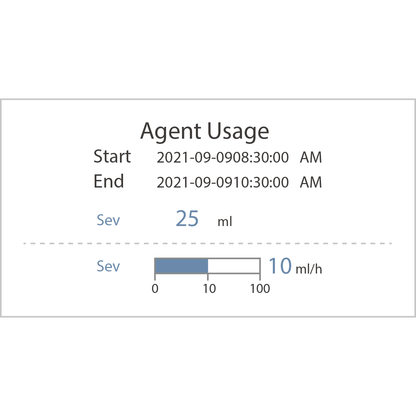

AA Measurement: Real-time anesthetic agent consumption monitoring with built-in calculation software.

Comprehensive Modular Monitoring

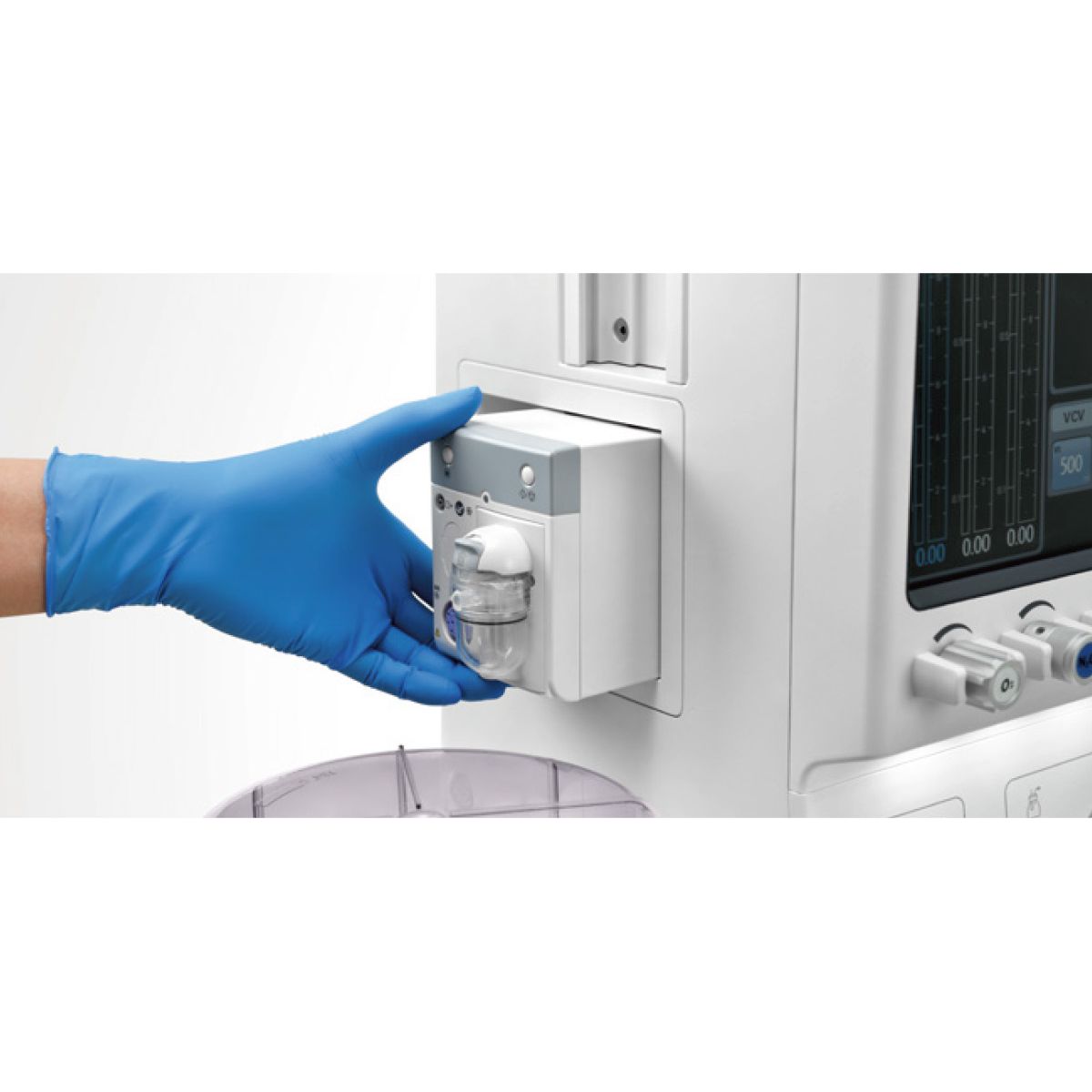

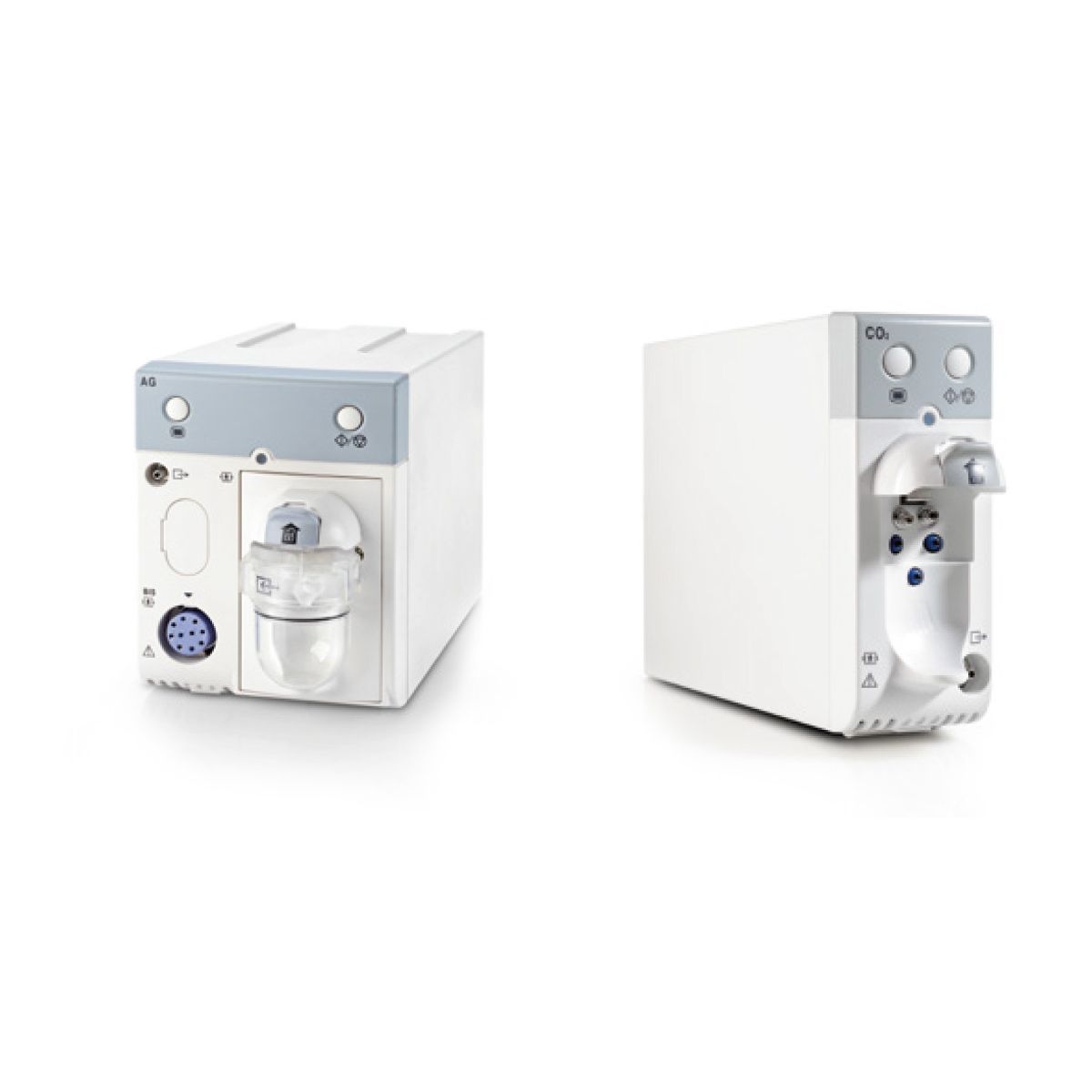

Plug-and-play multi-gas modules (Artema technology) provide breath-by-breath analysis of O₂, CO₂, N₂O, and automatic detection of five anesthetic agents.

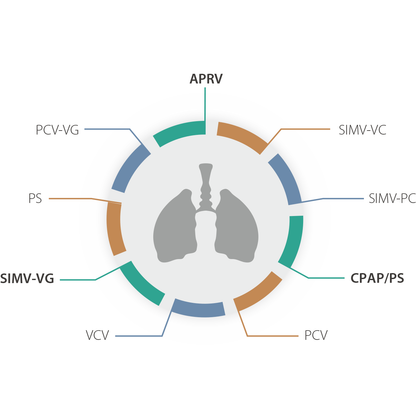

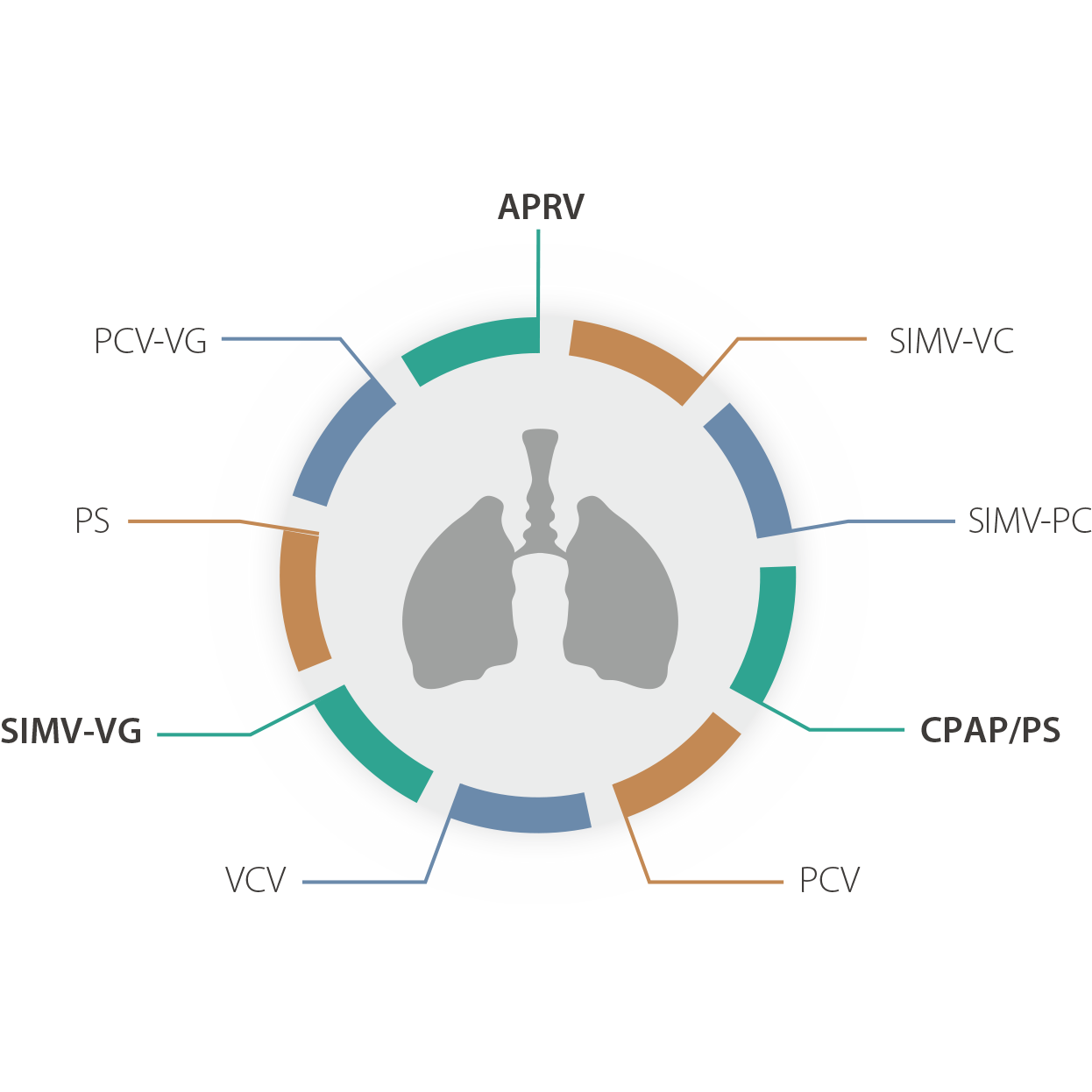

Comprehensive Ventilation Modes

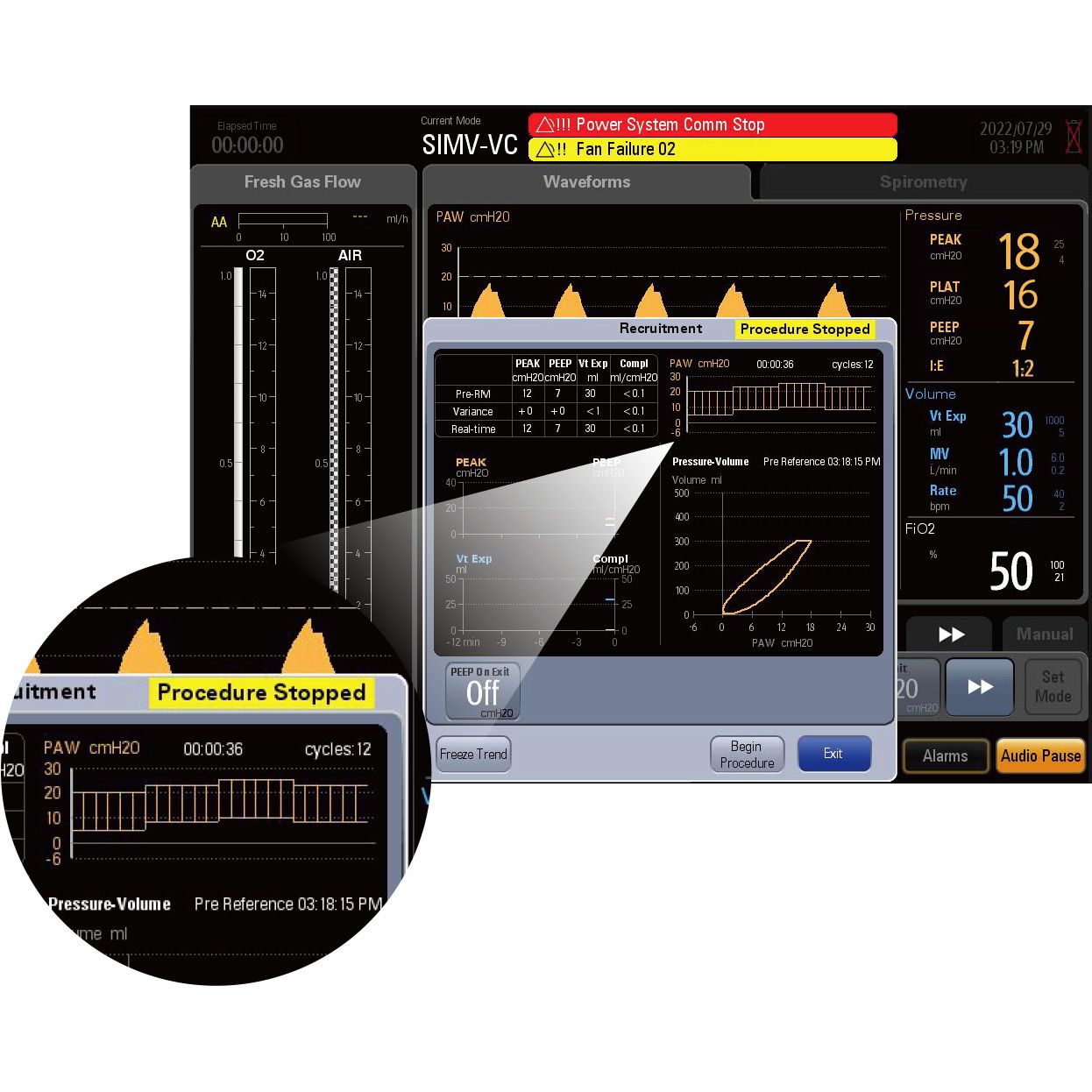

Offers a full range of ventilation modes for different clinical needs, with advanced options like lung recruitment to reopen collapsed alveoli, improve gas exchange, and prevent complications. Supports one-step (sustained inflation) or multi-step (incremental PEEP) maneuvers.

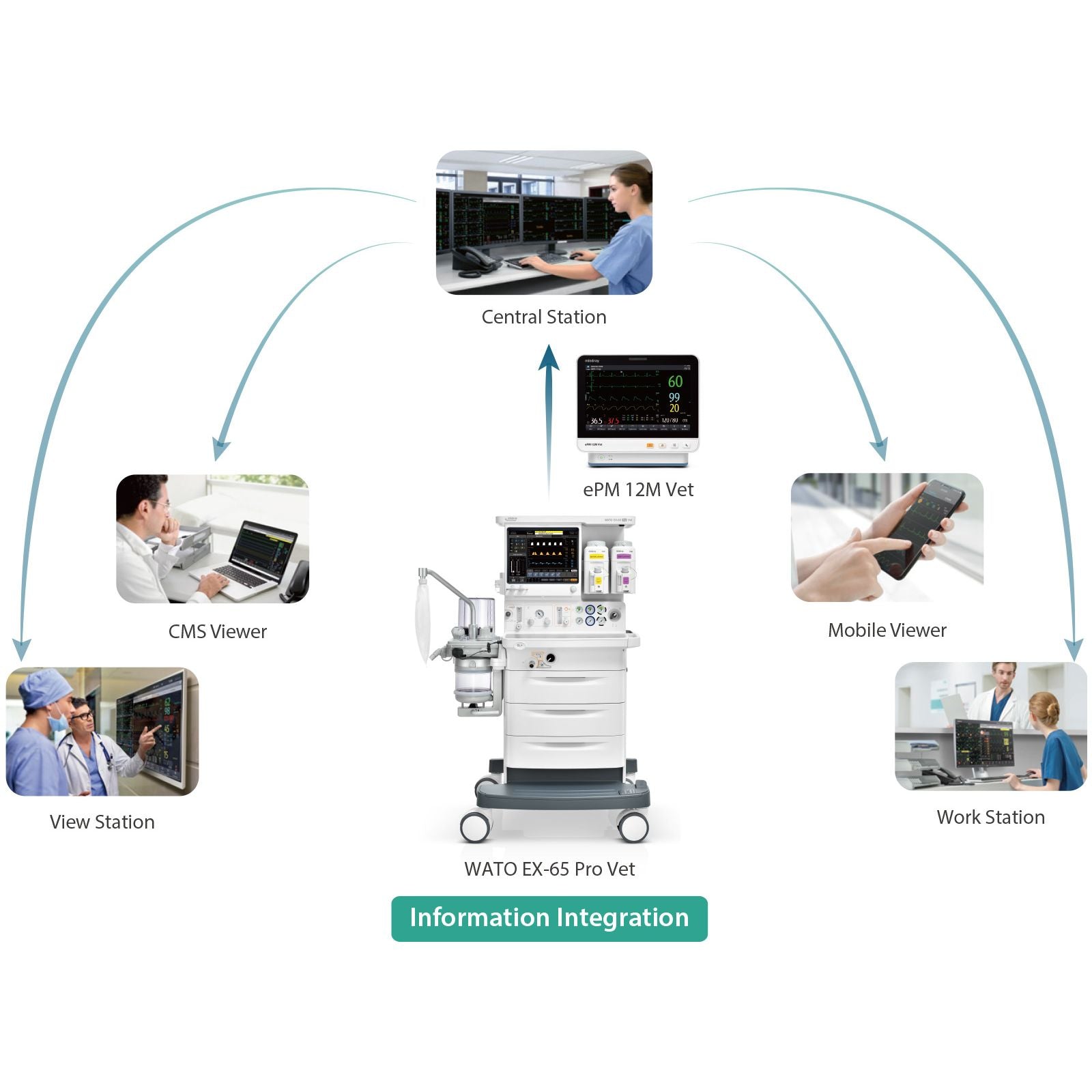

IT Solution Improves Efficiency

Anesthesia data can be transmitted to the BeneVision CMS Vet through the ePM 12M Vet monitor. Synchronization between anesthesia machines and patient monitors reduces workload, streamlines recordkeeping, and improves OR management.

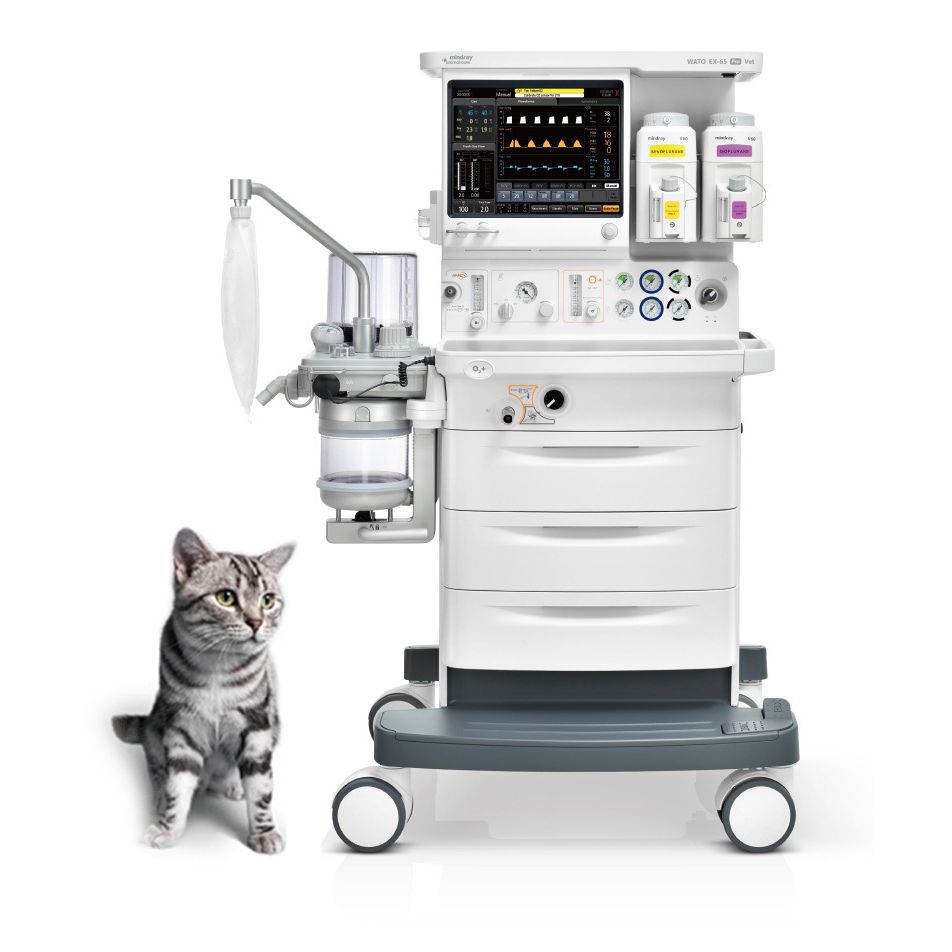

Veterinary Dedicated

Wide tidal volume range of 5–1500 mL supports patients from 0.5 kg to 150 kg. Optimized alarm trigger mechanisms reduce false apnea alarms in small patients, minimizing alarm fatigue. Auto-scaling waveform graphs adjust to patient size for clear and intuitive displays.

• 15" high-resolution capacitive touchscreen with intuitive flat-menu structure
• Electronic flow meters with total or direct flow control options
• Optimizer function calculates O₂ requirements and reduces anesthetic gas waste
• AA measurement software for real-time anesthetic agent consumption
• Plug-and-play multi-gas monitoring with Artema technology
• Supports O₂, CO₂, N₂O, and five anesthetic agents
• Full range of ventilation modes including VCV, PCV, CPAP/PS, PCV-VG, SIMV-VG*
• Lung recruitment maneuvers: one-step sustained inflation or multi-step PEEP*
• Wide tidal volume range: 5–1500 mL (supports 0.5–150 kg patients)
• Optimized alarm trigger reduces false apnea alarms
• Auto-scaling waveforms and spirometry loops
• Integrated IT solution with BeneVision CMS Vet interconnectivity
• Ergonomic design with large work surface and drawers

* Features depend on specific configuration/model

Package Includes

• 15" touch color screen
• Central brake
• O₂, Air & N₂O cylinder yokes
• Ventilator with VCV, PCV, CPAP/PS, PCV-VG, and SIMV-VG modes
• Loop display
• Lung recruitment functionality
• Tidal volume setting: 20–1500 mL
• Glass flowmeters with hypoxic guard
• 2 vaporizer positions
• Work surface
• 3 drawers with lock
• 1 battery (90 min backup)
• Pipeline pressure gauges
• User manual
• Quick user guide
• Packing material
